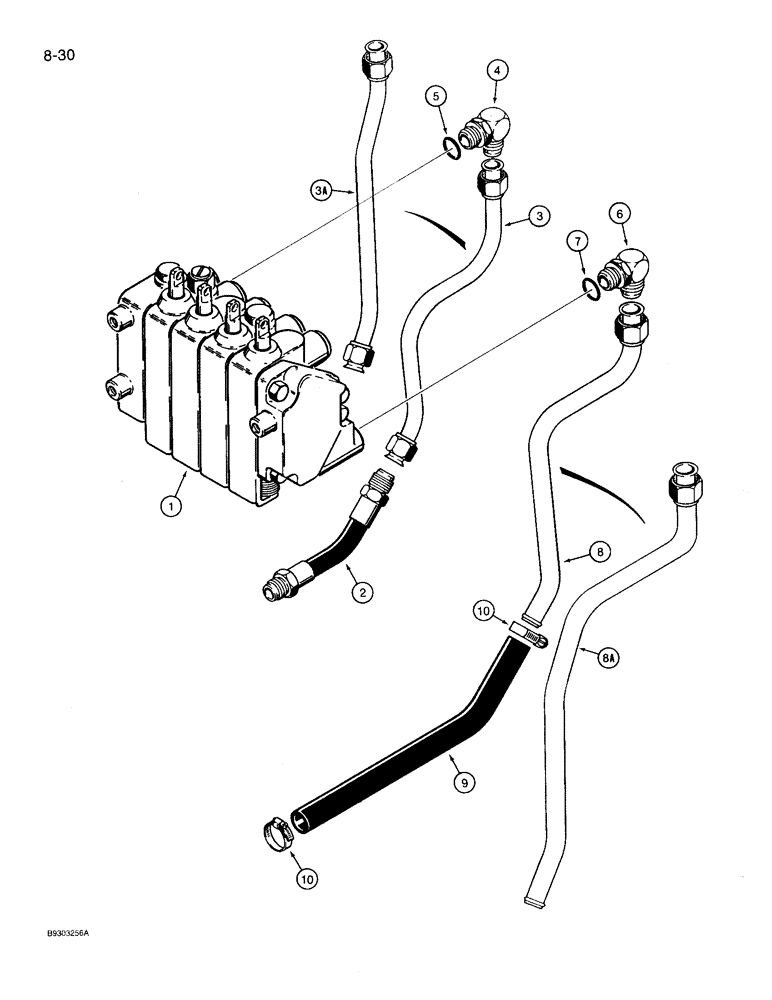

Запчасти Case 360 (8-30) - BACKHOE CONTROL VALVE SUPPLY AND RETURN LINES (08) - HYDRAULICS

1

H672691

VALVE

control, backhoe, models with dual lever controls, prior to P.I.N. JAF0091962, parts list Figs. 8-40, 8-44 and 8-46

1шт.

1

H673175

VALVE

control, backhoe, models with four lever controls, parts list Figs. 8-42 - 8-46

1шт.

1a

H674299

VALVE

control, backhoe, models with dual lever controls, P.I.N. JAF0091962 and after, not shown

1шт.

2

H551333

HOSE,0.50" ID x 8.50", SAE 100R2

Supply, Attaches to Rear Equipment Pressure Tube, See Fig. 8-10, Ref. 18

1шт.

3

H672145

TUBE ASSY.,15.8 mm OD

supply hose to control valve inlet, used with H672691 or H673175 control valve

1шт.

3a

H674504

TUBE,15.8 mm OD x 357, 94 mm L

supply hose to control valve inlet, used with H674299 control valve

1шт.

4

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss, Incl. Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

90 degree, 1-1/16-12 flare x 7/8-14 inch adj O-ring, Incl. Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

H672146

TUBE ASSY.,19 mm OD

return from control valve outlet, used with H672691 or H673175 control valve

1шт.

8a

H674505

TUBE,19 mm OD x 395, 140 mm L

return from control valve outlet, used with H674299 control valve

1шт.

9

H352237

HOSE,0.75" ID x 14.50", SAE 30R2 Type 1

Attaches to Rear Equipment Return Tube, See Fig. 8-10, Ref. 22, Cut from H379214 Bulk Hose, See Below

1шт.

10

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

adj, 11/16 - 1-1/4 inch dia

2шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

1шт.
