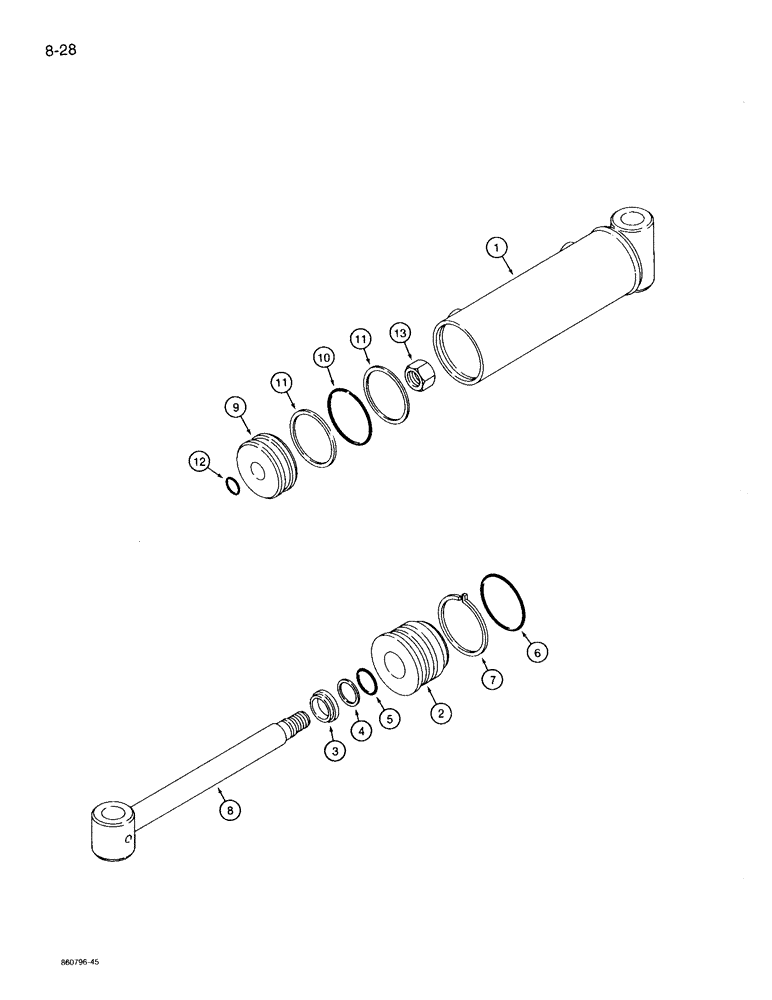

Запчасти Case 360 (8-28) - BACKFILL BLADE ANGLE CYLINDER (08) - HYDRAULICS

H672496

CYLINDER ASSY.

2-7/8" (73 mm) ID x 5-1/4" (133 mm) stroke, backfill blade angle, Incl. Ref. 1 - 13

2шт.

1

N13964

TUBE

cylinder

1шт.

2

N8519

GLAND

cylinder

1шт.

3

H755793

RETAINER

WIPER - rod; Part of Seal Kit, P/N H583112

1шт.

4

A35899

RING

backup, small O-ring, gland inner, piston rod; Part of Seal Kit, P/N H583112

1шт.

5

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

small, gland inner, piston rod; Part of Seal Kit, P/N H583112

1шт.

6

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

large, gland, outer; Part of Seal Kit, P/N H583112

1шт.

7

H207027

LOCK ASSY

RING - gland locking; Part of Seal Kit, P/N H583112

1шт.

8

N13965

STEM

ROD - piston, 1" (25 mm) diameter

1шт.

9

H247023

PISTON

cylinder

1шт.

10

A30971

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

piston, outer; Part of Seal Kit, P/N H583112

1шт.

11

A35810

RING

backup, piston O-ring, outer; Part of Seal Kit, P/N H583112

2шт.

12

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

rod end; Part of Seal Kit, P/N H583112

1шт.

13

230-46112

LOCK NUT,3/4"-16, GA

hex, self locking, 3/4" - 16 NF

1шт.

H583112

SEAL ASSY.

KIT - Incl. Ref. 3, 4, 5, 6, 7, 10, 11 and 13

1шт.
