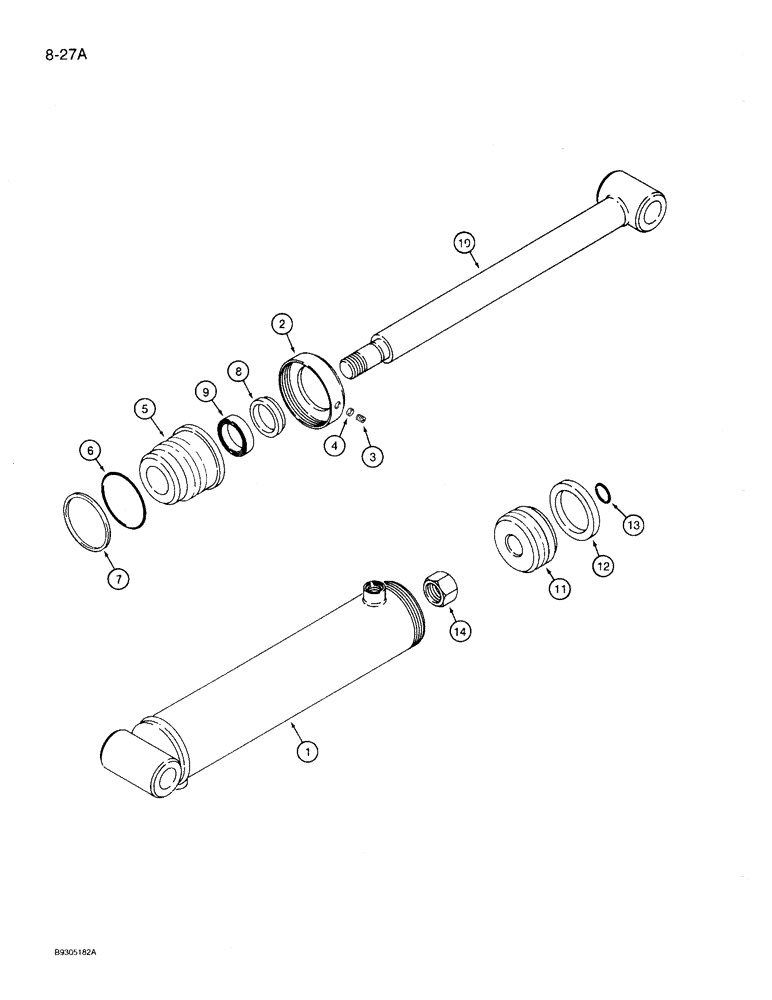

Запчасти Case 360 (8-27A) - BACKFILL BLADE LIFT CYLINDER - H673703 (08) - HYDRAULICS

H673703

CYLINDER

2-7/8 (73) ID x 7-5/8 inch (194 mm) stroke, backfill blade lift, Incl. Ref. 1 - 14

1шт.

1

H436659

SLEEVE CYLINDER

cylinder

1шт.

2

H436657

COLLAR

gland locking

1шт.

3

178-878

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

set, hex socket headless, 5/16 NC x 5/16 inch, cup

1шт.

4

H438384

INSERT

nylon, set screw

1шт.

5

H436656

GLAND

cylinder

1шт.

6

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

Seal, gland, outer

1шт.

7

A35901

RING

backup, gland, outer

1шт.

8

H223271

WIPER SEAL

rod

1шт.

9

H232108

SEAL

U-cup, rod

1шт.

10

H436660

ROD

piston, 1-1/4 inch (32 mm) diameter

1шт.

11

H436658

PISTON

cylinder

1шт.

12

H436661

SEAL

piston, outer

1шт.

13

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

1шт.

14

131-1252

LOCK NUT,7/8"-14, GC

1шт.
