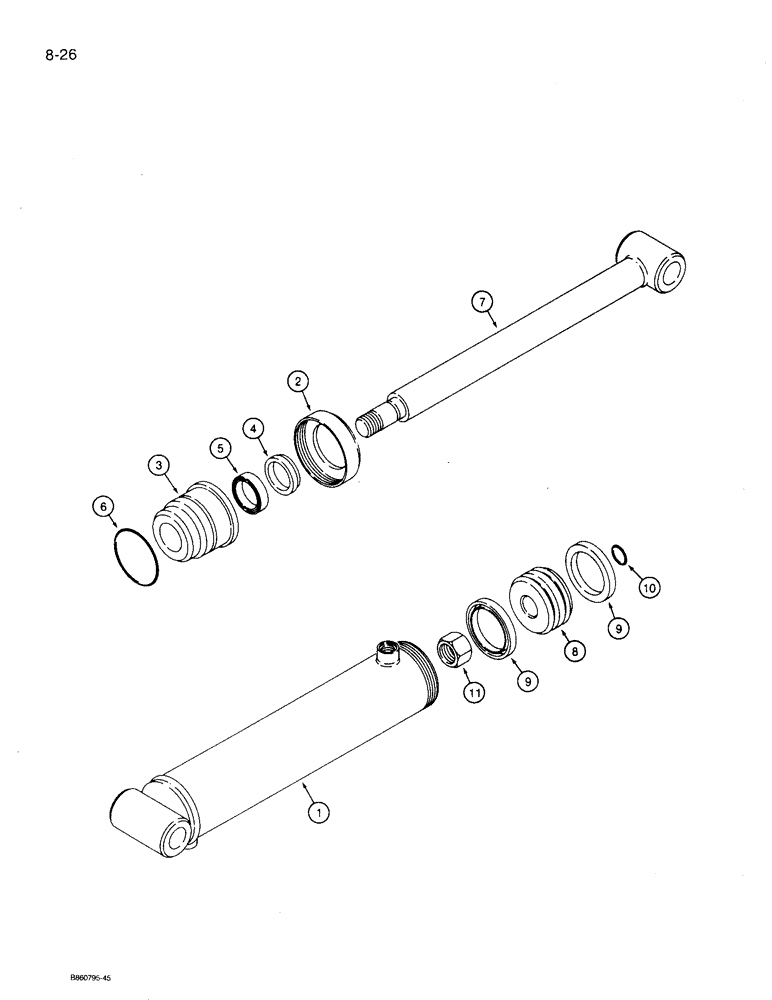

Запчасти Case 360 (8-26) - BACKFILL BLADE LIFT CYLINDER - H672314 (08) - HYDRAULICS

H672314

CYLINDER

2-7/8 (73) ID x 7-5/8 inch (194 mm) stroke, backfill blade lift, no longer available, order H673703, Fig. 8-27A, Incl. Ref. 1 - 11

1шт.

1

N13966

TUBE

cylinder

1шт.

2

H232116

COLLAR

gland locking

1шт.

3

T55110

GLAND

cylinder

1шт.

4

H223271

WIPER SEAL

rod

1шт.

5

H232108

SEAL

U-cup, rod

1шт.

6

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

Gland, outer

1шт.

7

N13967

STEM

piston, 1-1/4 inch (32 mm) diameter

1шт.

8

N13968

PISTON

cylinder

1шт.

9

H262360

SEAL

U-cup, piston, outer

2шт.

10

D32114

O-RING,0.75" ID x 0.875" OD

rod end

1шт.

11

131-1252

LOCK NUT,7/8"-14, GC

1шт.
