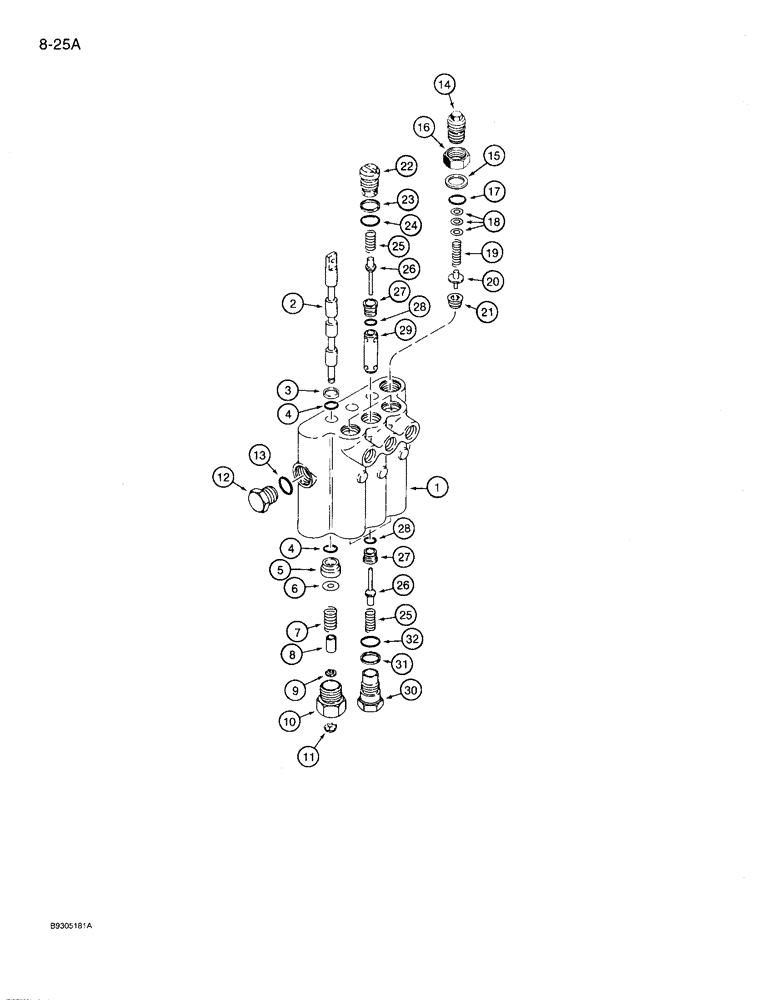

Запчасти Case 360 (8-25A) - BACKFILL BLADE CONTROL VALVE - H674733 (08) - HYDRAULICS

H674733

VALVE

control, three spool, backfill blade, Incl. Ref. 1 - 32

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - left-hand angle, lift, and right-hand angle

3шт.

3

H435703

SEAL

wiper

3шт.

4

H438995

O-RING

spool

6шт.

5

674775R1

BUSHING

spool

3шт.

6

N9256

WASHER

flat, special

3шт.

7

674490R1

SPRING

centering, spool

3шт.

8

H438994

SPACER

spool

3шт.

9

N9257

RING, SNAP

RING SNAP retaining, spool

3шт.

10

N9253

CAP

spool, end

3шт.

11

NSS

NOT SOLD SEPARAT

PLUG - filter, end cap

1шт.

N9862

PLUG

hex, 3/4 inch NF, power beyond, Incl. Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

PLUG - power beyond

1шт.

13

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

1971406C1

CAP

PLUG ASSEMBLY - main relief valve, Incl. Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

PLUG - main relief valve

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - plug

1шт.

16

218-1278

BHD LOCK NUT,Blkhd, 3/4"-16

small hex, lock, 3/4 inch NF

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

H746149

SHIM,.015" Thk

(0.38 mm)

1шт.

18

F12267

WASHER

.010 inch (0.25 mm) thick

1шт.

18

H220798

SHIM,.035" Thk

.035 inch (0.89 mm) thick

1шт.

19

H435565

SPRING

relief

1шт.

20

F37837

VALVE POPPET

1шт.

21

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

H636977

PLUG

load check, Incl. Ref. 22 - 24

3шт.

22

NSS

NOT SOLD SEPARAT

PLUG - load check

1шт.

23

G32626

RING

backup, plug O-ring

1шт.

24

H755975

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

plug

1шт.

25

H364182

SPRING

load check

6шт.

26

F88777

PLUNGER

load check

6шт.

H636951

SEAT

poppet, load check, Incl. Ref. 27 and 28

6шт.

27

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.

28

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

29

N14695

PLUNGER

load check

3шт.

H636969

FITTING

PLUG ASSEMBLY - load check, port adapter, Incl. Ref. 30 - 32

3шт.

30

NSS

NOT SOLD SEPARAT

PLUG - port adapter

1шт.

31

G32626

RING

backup, plug O-ring

1шт.

32

H755975

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

plug

1шт.
