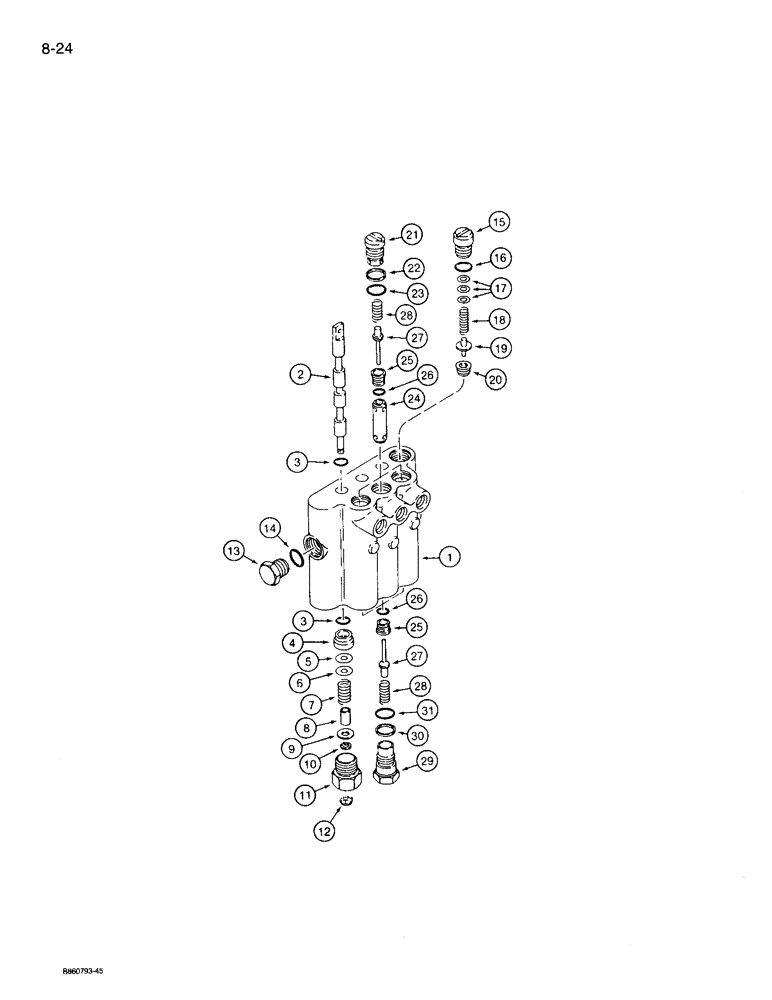

Запчасти Case 360 (8-24) - BACKFILL BLADE CONTROL VALVE - H641050 (08) - HYDRAULICS

H641050

LOCK VALVE

control, three spool, backfill blade, no longer available, order H674733, Fig. 8-25A, Incl. Ref. 1 - 31

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - left-hand angle, lift, and right-hand angle

3шт.

3

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

spool

6шт.

4

F36304

BUSHING

spool

3шт.

5

H253062

WASHER

.046 inch (1.17 mm) thick

3шт.

6

H253054

WASHER

.020 inch (0.51 mm) thick, if required

3шт.

7

F36306

SPRING

centering, spool

3шт.

8

F36239

SPACER

spool

3шт.

9

F36908

WASHER

.065 inch (1.65 mm) thick

3шт.

10

H758367

RING

retaining, spool

3шт.

11

H375667

CAP

spool, end

3шт.

12

205-14

HOLE PLUG BUTTON,3/8"

button, 3/8 inch, end cap

3шт.

N9862

PLUG

hex head, 3/4 inch NF, power beyond, Incl. Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

PLUG - power beyond

1шт.

14

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

F37892

PLUG

main relief valve, Incl. Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

PLUG - main relief valve

1шт.

16

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

17

H746149

SHIM,.015" Thk

(0.38 mm)

1шт.

17

F12267

WASHER

.010 inch (0.25 mm) thick

1шт.

17

H220798

SHIM,.035" Thk

.035 inch (0.89 mm) thick

1шт.

18

L33609

SPRING

relief

1шт.

19

F37837

VALVE POPPET

1шт.

20

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

H636977

PLUG

load check, Incl. Ref. 21 - 23

3шт.

21

NSS

NOT SOLD SEPARAT

PLUG - load check

1шт.

22

G32626

RING

backup, plug O-ring

1шт.

23

H755975

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

plug

1шт.

24

F8229

PLUNGER

load check

3шт.

H636951

SEAT

poppet, load check, Incl. Ref. 25 and 26

6шт.

25

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.

26

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

seat

1шт.

27

F77048

VALVE POPPET

load check

6шт.

28

H364182

SPRING

load check

6шт.

H636969

FITTING

PLUG ASSEMBLY - load check, port adapter, Incl. Ref. 29 - 31

3шт.

29

NSS

NOT SOLD SEPARAT

PLUG - port adapter

1шт.

30

G32626

RING

backup, plug O-ring

1шт.

31

H755975

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

plug

1шт.
