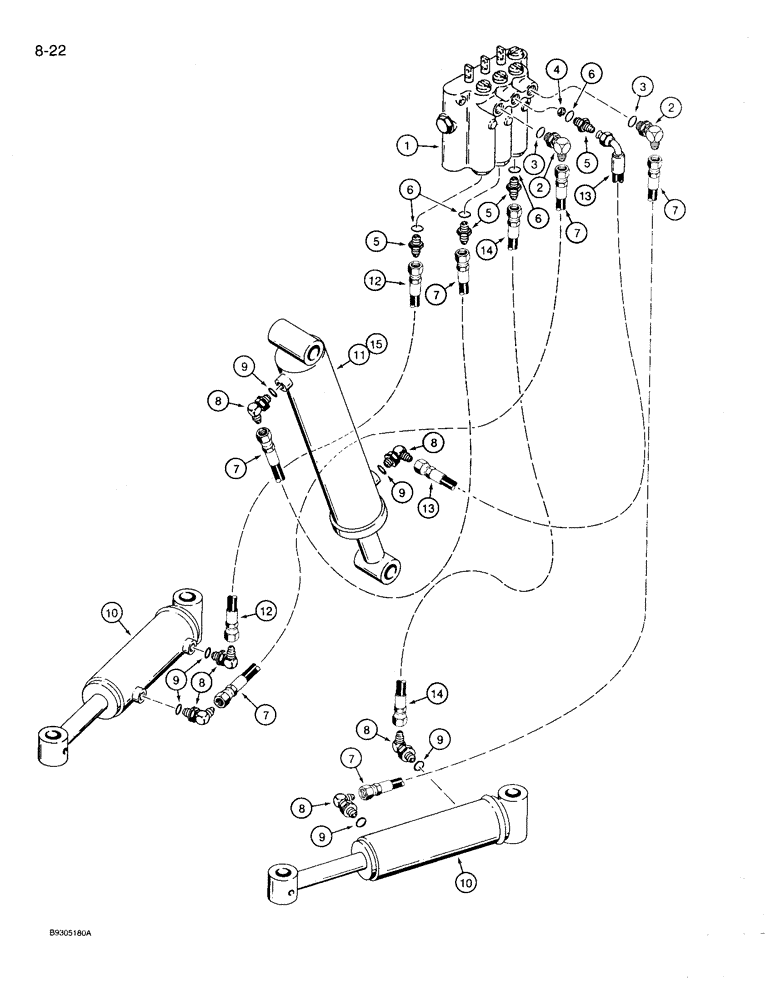

Запчасти Case 360 (8-22) - BACKFILL BLADE ANGLE AND LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

H641050

LOCK VALVE

control, backfill blade, parts list Fig 8-24, no longer available, order H674733

1шт.

1

H674733

VALVE

control, backfill blade, parts list Fig. 8-25A, for mounting hardware see Fig. 8-18

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj O-ring boss, upper right-hand and left-hand angle ports, Incl. Ref. 3

2шт.

4

H165654

ORIFICE

upper lift port, center

1шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Lower lift and angle ports, upper lift port, Incl. Ref. 6

4шт.

7

H185736

HYDRAULIC HOSE,6.35 mm ID x 1066.80 mm, SAE 100R1

Rod End of Angle Cylinders, Closed End of Lift Cylinder

3шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj O-ring boss, Incl. Ref. 9

6шт.

10

H672496

CYLINDER ASSY.

left-hand and right-hand angle, parts list Fig. 8-28

2шт.

11

H672314

CYLINDER

lift, parts list Fig. 8-26, no longer available, order item 15, H673703 cylinder

1шт.

12

H307959

HOSE ASSY.

SPARE PART 52 inch (1321 mm) long, closed end of left-hand angle cylinder

1шт.

13

H433292

HOSE ASSY.

38 inch (965 mm) long, rod end of lift cylinder

1шт.

14

H218453

HYDRAULIC HOSE,6.35 mm ID x 838.20 mm, SAE 100R1

Closed End of Right-Hand Angle Cylinder

1шт.

15

H673703

CYLINDER

lift, parts list Fig. 8-27A

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
