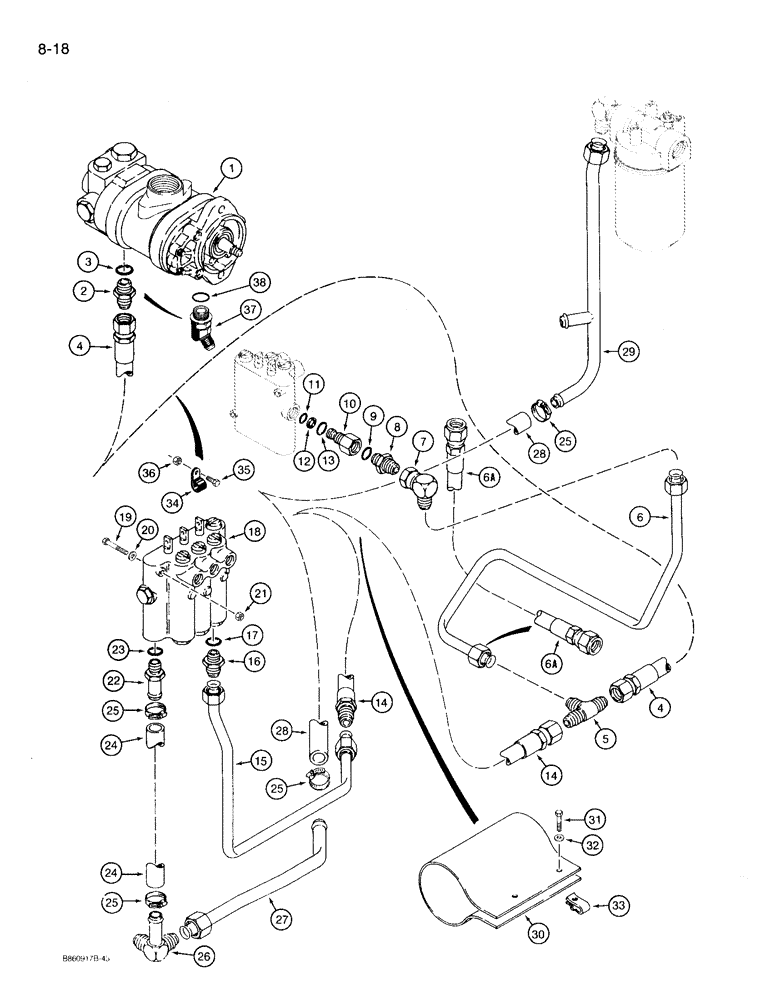

Запчасти Case 360 (8-18) - BACKFILL BLADE SUPPLY AND RETURN LINES - CONTROL VALVE AND MOUNTING (08) - HYDRAULICS

1

H664938

O-RING

dual, steering and equipment hydraulic, parts list Fig. 5-20, for mounting hardware see Figs. 5-12 - 5-16

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

straight, 7/8-14 inch flare x O-ring boss, no longer used, order Ref. 37 and 38 for service, Incl. Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

H195958

HOSE,45.00", SAE 100R1

From Dual Pump to Power Beyond Supply Tee

1шт.

5

218-595

TEE,7/8"-14, 37 Degree

7/8-14 inch flare, supply from daul pump and power beyond

1шт.

6

H672330

HOSE

from steering control valve power beyond to supply tee, no longer used, replace with item 6A hose

1шт.

6a

L46723

HOSE

42 inch (1067 mm) long, from steering control valve power beyond to supply tee, replaces H672330 tube, if used

1шт.

7

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

8

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Straight, Incl. Ref. 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

H347906

FITTING

VALVE ASSEMBLY - power beyond, steering control valve to backfill blade control valve, Incl. Ref. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - valve, power beyond

1шт.

11

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

small

1шт.

12

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

backup, small O-ring

1шт.

13

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

large, body

1шт.

14

D27877

HOSE

33 inch (838 mm) long, replaces a 36 inch (914 mm) long hose used on some models, supply tee to backfill valve inlet tube

1шт.

15

H672331

TUBE ASSY.,15.8 mm OD

backfill valve inlet

1шт.

16

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Straight, Incl. Ref. 17

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

H641050

LOCK VALVE

control, backfill blade, parts list Fig. 8-24, no longer available, order H674733

1шт.

18

H674733

VALVE

control, backfill blade, parts list Fig. 8-25A

1шт.

19

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

20

H426767

WASHER

flat, 1/4 inch, hardened

2шт.

21

232-4114

LOCK NUT,1/4"-20, GC

2шт.

22

217-396

FITTING,3/4" Hose Barb x 3/4" - 16 Male ORB

straight, 3/4 stem end x 3/4-16 inch adj O-ring

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

24

H434537

HOSE

3/4 (19) ID x 15 inch (406 mm) long, backfill control valve outlet, cut from D55911 bulk hose, see below

1шт.

25

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

adj, 11/16 - 1-1/4 inch dia

4шт.

26

H433920

TEE

special

1шт.

27

H672400

TUBE,19 mm OD

backfill control valve return hose to return filter hose

1шт.

28

H307769

HOSE ASSY.

SPARE PART 3/4 (19) ID x 42 inch (1067 mm) long, cut from bulk hose, see Parts Substitution List for bulk hose options, backfill control valve return tube to return filter

1шт.

29

H672332

TUBE ASSY.,19 mm OD

at return filter

1шт.

30

H374678

FLAP

items 14 and 28 hoses, rubber, at articulation joint

1шт.

31

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

32

H426775

WASHER

flat, 5/16 inch, hardened

2шт.

33

H346650

NUT

clip, 5/16 inch NC

2шт.

34

D40471

CLAMP

hose

1шт.

35

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

36

232-4115

LOCK NUT,5/16"-18, GC

1шт.

37

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

D55911

HOSE

bulk, 3/4 (19) ID x 28 inch (711 mm) long

1шт.
