Запчасти Case 360 (8-16) - TRENCHER BOOM LIFT CYLINDER (08) - HYDRAULICS

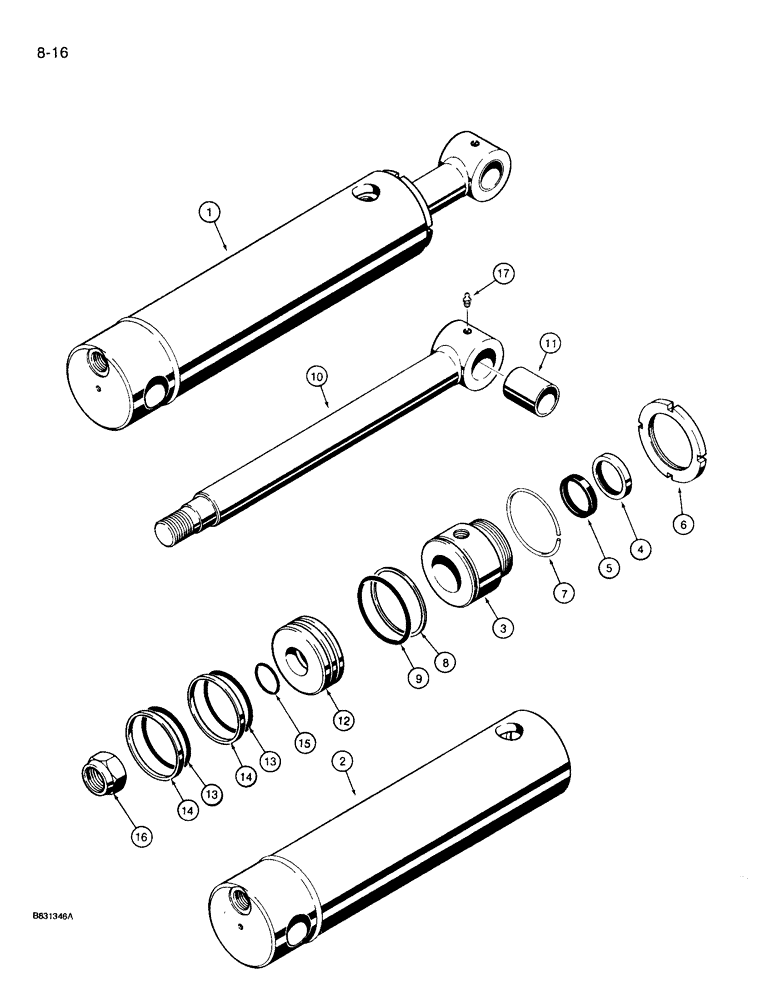

Схема запчастей Case 360 - (8-16) - TRENCHER BOOM LIFT CYLINDER (08) - HYDRAULICS
12
5
11
13
9
7
2
3
4
13
8
1
14
14
16
6
10
15
17

Артикул

Название

Примечание

Количество

1

H530519

CYLINDER BLOCK

3 (76) ID x 10 inch (254 mm) stroke, trencher boom lift, Incl. Ref. 1 - 17

1шт.

2

H122218

SLEEVE CYLINDER

1шт.

3

H120360

BEARING

GLAND - cylinder

1шт.

4

A41785

WIPER SEAL

rod; Part of Seal Kit, P/N H122234

1шт.

5

H220558

SEAL

rod; Part of Seal Kit, P/N H122234

1шт.

6

H745794

BEARING LOCK NUT

NUT - lock, gland

1шт.

7

H52761

RING

retaining, gland; Part of Seal Kit, P/N H122234

1шт.

8

H745760

WASHER

backup, gland O-ring, outer; Part of Seal Kit, P/N H122234

1шт.

9

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

gland, outer; Part of Seal Kit, P/N H122234

1шт.

H570184

ROD

piston, Incl. Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

11

H220624

RING

rod eye

1шт.

12

H120147

PISTON ASSY.

cylinder

1шт.

13

G10389

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

piston seal, outer; Part of Seal Kit, P/N H122234

2шт.

14

H120188

RING

piston, outer; Part of Seal Kit, P/N H122234

2шт.

15

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

piston seal, inner; Part of Seal Kit, P/N H122234

1шт.

16

131-1141

LOCK NUT,1 1/8" - 12, Gr A

hex, self locking, 1-1/8 inch NF

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

H122234

SEAL ASSY.

Incl. Refs. 4, 5, 7, 8, 13, 14 and 15

1шт.

Выбрано товаров: 19
