Запчасти Case 360 (8-14) - TRENCHER BOOM LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

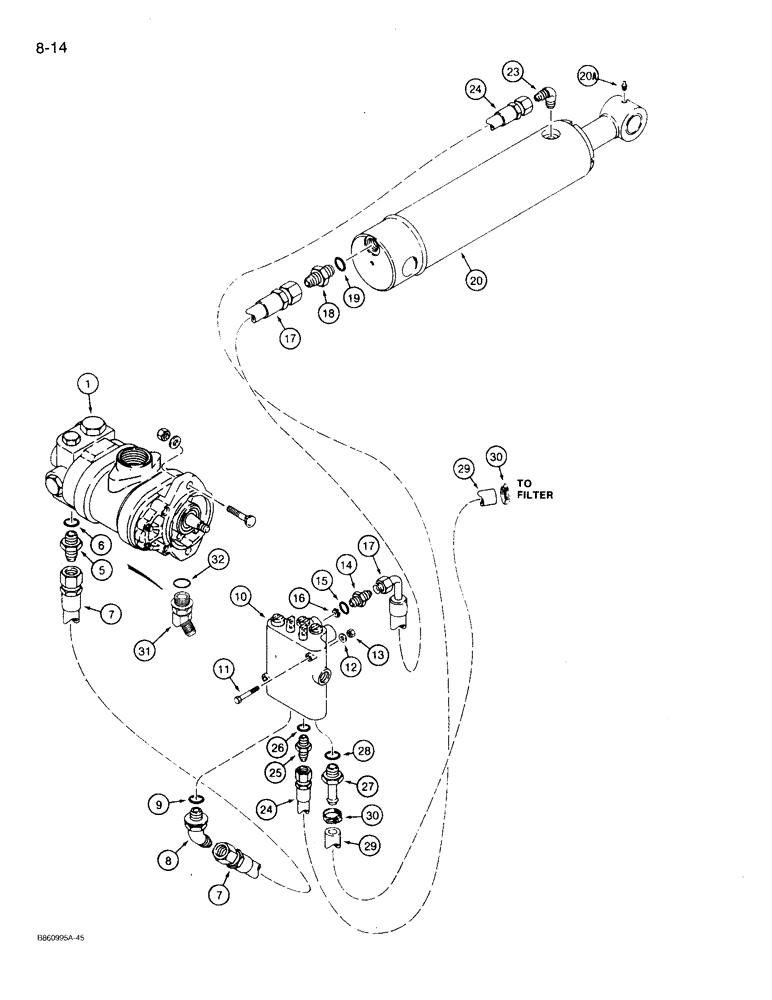

Схема запчастей Case 360 - (8-14) - TRENCHER BOOM LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS
28
29
6
30
19
32
12
23
7
24
26
13
17
8
7
20
11
10
9
1
5
25
24
15
29
30
16
18
31
17
20a
27
14

Артикул

Название

Примечание

Количество

1

H664938

O-RING

dual, steering and equipment hydraulic, parts list Fig. 5-20

1шт.

2

T61773

BOLT

carriage, 7/16 NC x 1-1/2 inch, special

2шт.

3

H426783

WASHER

flat, 7/16 inch, hardened

2шт.

4

232-4117

LOCK NUT,7/16"-14, GC

2шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

strRRefef. 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

H433293

HOSE

30 inch (762 mm) long, dual pump to boom and steering control valve

1шт.

8

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adj O-ring boss, Incl. Ref 9

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

H656454

VALVE

control, steering and trencher boom lift, parts list Fig. 5-22, no longer available, order H674732

1шт.

10

H674732

SLIDE VALVE

control, steering and trencher boom lift, parts list Fig. 5-23A

1шт.

11

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

12

H426767

WASHER

flat, 1/4 inch, hardened

2шт.

13

232-4114

LOCK NUT,1/4"-20, GC

2шт.

14

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 15

1шт.

16

H233981

ORIFICE

special, .078 inch (1.98 mm) orifice

1шт.

17

H231639

HOSE ASSY.

47 inch (1194 mm) long, control valve to trencher boom lift cylinder, closed end

1шт.

18

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Incl. Ref. 19

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

H530519

CYLINDER BLOCK

trencher boom lift, parts list Fig. 8-16

1шт.

20a

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

23

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

90 degree, 9/16-18 flare x 3/8 inch PT

1шт.

24

H243790

HYDRAULIC HOSE,6.35 mm ID x 1473.20 mm, SAE 100R1

Boom Cylinder, Rod End

1шт.

25

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 26

1шт.

27

217-396

FITTING,3/4" Hose Barb x 3/4" - 16 Male ORB

straight, 3/4 stem end x 3/4-16 inch adj O-ring, Incl. Ref. 28

1шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

29

H317271

HOSE

3/4 (19) ID x 30 inch (762 mm) long, control valve to return filter tube, prior to P.I.N. JAF0104157, cut from H379214 bulk hose, see below

1шт.

29

A160209

HYDRAULIC HOSE,19 mm ID x 838.20 mm, SAE 30R2 TYPE 1 SAE J30

Control Valve to Return Filter Tube, P.I.N. JAF0104157 and After

1шт.

30

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

adj, 11/16 - 1-1/4 inch dia

2шт.

31

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adj O-ring boss, Incl. Ref 32

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
