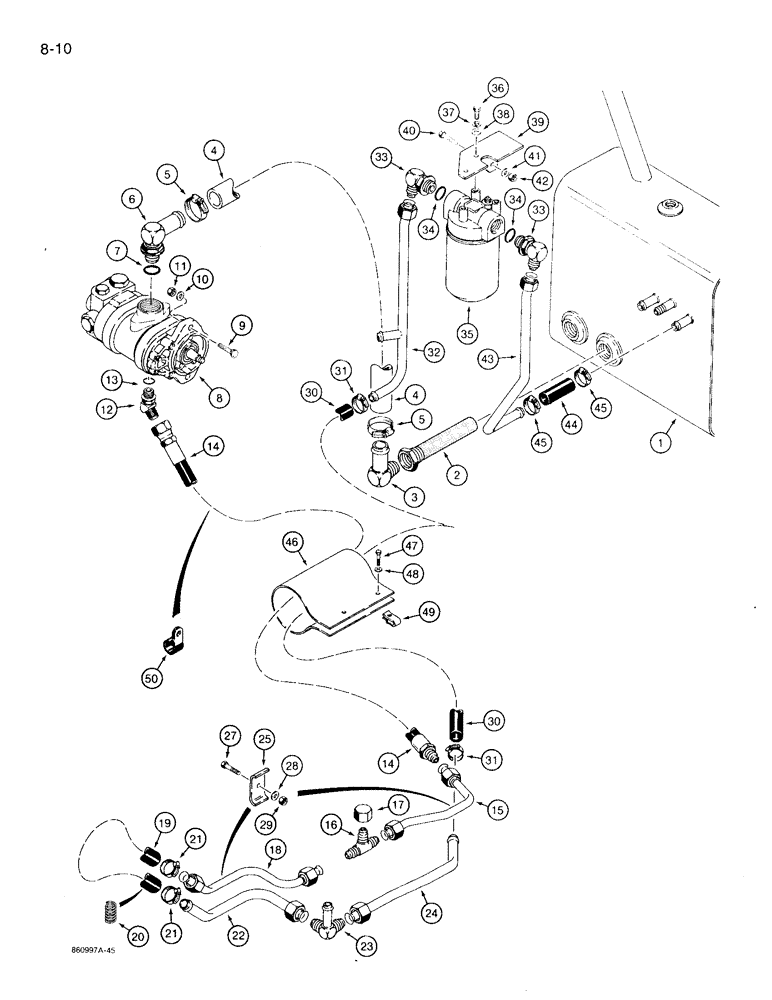

Запчасти Case 360 (8-10) - REAR ATTACHMENT SUPPLY AND RETURN LINES (08) - HYDRAULICS

1

H670836

TANK

hydraulic oil, parts list Fig. 8-2

1шт.

2

H151399

FILTER STRAINER

suction filter

1шт.

3

217-166

STEM,90 Degree Elbow, 1-1/4" Hose Barb x 1" Male NPTF

90 degree, 1-1/4 stem end x 1 inch PT

1шт.

4

H433346

HOSE ASSY.

1-1/4 (32) ID x 40-3/16 inch (1020 mm) long, reservoir to pump, prior to P.I.N. JAF0104157

1шт.

4

121930A1

HYDRAULIC HOSE

1-1/4 (32) ID x 42 inch (1067 mm) long, reservoir to pump, P.I.N. JAF0104157 and after

1шт.

5

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

6

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Includes Ref. 7

1шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

8

H664938

O-RING

dual, steering and equipment hydraulic, parts list Fig. 5-20

1шт.

9

T61773

BOLT

carriage, 7/16 NC x 1-1/2 inch, special

2шт.

10

H426783

WASHER

flat, 7/16 inch, hardened

2шт.

11

232-4117

LOCK NUT,7/16"-14, GC

2шт.

12

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adj O-ring boss, Incl. Ref 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

H202036

HYDRAULIC HOSE,12.70 mm ID x 1752.60 mm, SAE 100R2

Dual Pump to Rear Attachment Supply Tube

1шт.

15

H672296

TUBE ASSY.,15.8 mm OD x 236, 59 mm L

rear attachment supply, hose to tee

1шт.

16

218-595

TEE,7/8"-14, 37 Degree

7/8-14 inch flare

1шт.

17

218-756

CAP,37 Degree, 7/8"-14

Used on models without rear attachment hydraulic circuit

1шт.

18

H672401

TUBE ASSY.,15.8 mm OD

rear attachment supply, tee to hose, see Fig. 8-52 for tractors equipped with auxiliary hydraulics

1шт.

19

H355180

HOSE,10.00", SAE 30R2

Rear Attachment Supply Tube to Return Tube, Used on Models Without Rear Attachments, Cut from H379214 Bulk Hose, See Below

1шт.

20

H315986

SPRING

hose

1шт.

21

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

adj, 11/16 - 1-1/4 inch dia

2шт.

22

H672402

TUBE,19 mm OD

rear attachment return, see Fig. 8-52 for tractors equipped with auxiliary hydraulics

1шт.

23

H433920

TEE

special

1шт.

24

H672400

TUBE,19 mm OD

tee to return hose

1шт.

25

H239061

CLAMP

tubes

2шт.

27

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

28

H426775

WASHER

flat, 5/16 inch, hardened

2шт.

29

232-4115

LOCK NUT,5/16"-18, GC

2шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

1шт.

30

H307769

HOSE ASSY.

SPARE PART 3/4 (19) ID x 42 inch (1067 mm) long, rear attachment return tube to return filter tube, cut from H379214 bulk hose, see below

1шт.

31

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

adj, 11/16 - 1-1/4 inch dia

2шт.

32

H672332

TUBE ASSY.,19 mm OD

hose to return filter

1шт.

33

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 34

2шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

35

H649277

FILTER ASSY

hydraulic oil return, parts list Fig. 8-74

1шт.

36

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

37

492-11031

LOCK WASHER,5/16"

2шт.

38

H426775

WASHER

flat, 5/16 inch, hardened

2шт.

39

H433428

ANGLE

return filter mounting

1шт.

40

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

41

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

42

232-4116

NUT,3/8"-16, GC

2шт.

43

H672333

TUBE ASSY.,19 mm OD

return filter to reservoir hose

1шт.

44

A57185

HOSE

3/4 (19) ID x 3 inch (76 mm) long, return filter tube to reservoir, cut from H379214 bulk hose, see below

1шт.

45

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

adj, 11/16 - 1-1/4 inch dia

2шт.

46

H374678

FLAP

Ref. 14 and 30 hoses, rubber, at articulation joint

1шт.

47

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

48

H426775

WASHER

flat, 5/16 inch, hardened

2шт.

49

H346650

NUT

clip, 5/16 inch NC

2шт.

50

D40471

CLAMP

hose, use existing hardware

1шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

1шт.
