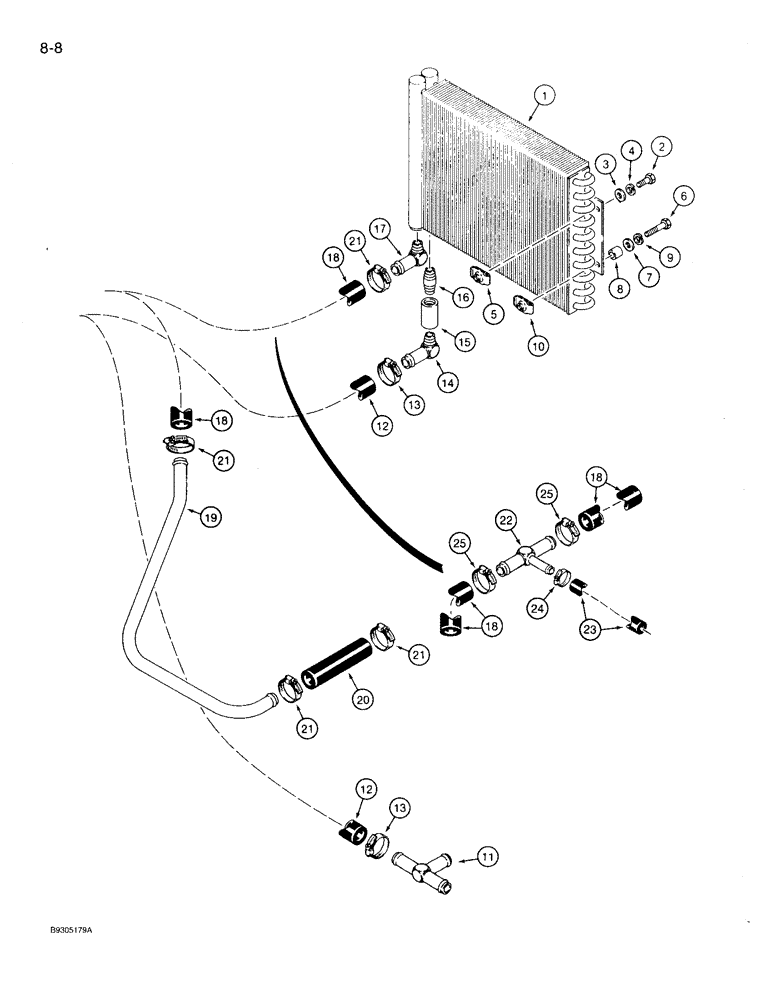

Запчасти Case 360 (8-08) - OIL COOLER HYDRAULIC CIRCUIT (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
12
H309088
HOSE
3/4 (19) ID x 35 inch (889 mm) long, tee to hydraulic oil cooler, cut from H379214 bulk hose, see below
1шт.
13
214-254
HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm
adj, 11/16 - 1-1/4 inch dia.
2шт.
14
217-333
FITTING,90 Degree Elbow, 3/4" Hose Barb x 3/8" Male NPTF
90 degree, 3/4 inch stem end x PT
1шт.
17
217-333
FITTING,90 Degree Elbow, 3/4" Hose Barb x 3/8" Male NPTF
90 degree, 3/4 inch stem end x PT
1шт.
18
H433430
HOSE
3/4 (19) ID x 7-7/8 inch (200 mm) long, hydraulic oil cooler to reservoir return tube, cut from H379214 bulk hose, see below, also see note
1шт.
For plow models with H674539 plow motor with drain hose; H433430 hose is cut in half and Refs. 22 - 25 are used. See Fig. 8-60 for continuation of circuit.
1шт.
20
A57185
HOSE
3/4 (19) ID x 3 inch (76 mm) long, return tube to reservoir, cut from H379214 bulk hose, see below
1шт.
21
214-254
HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm
adj, 11/16 - 1-1/4 inch dia.
4шт.
24
214-252
HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm
adj, 1/2 - 29/32 inch dia.
1шт.
25
214-254
HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm
adj, 11/16 - 1/1/4 inch dia.
2шт.
