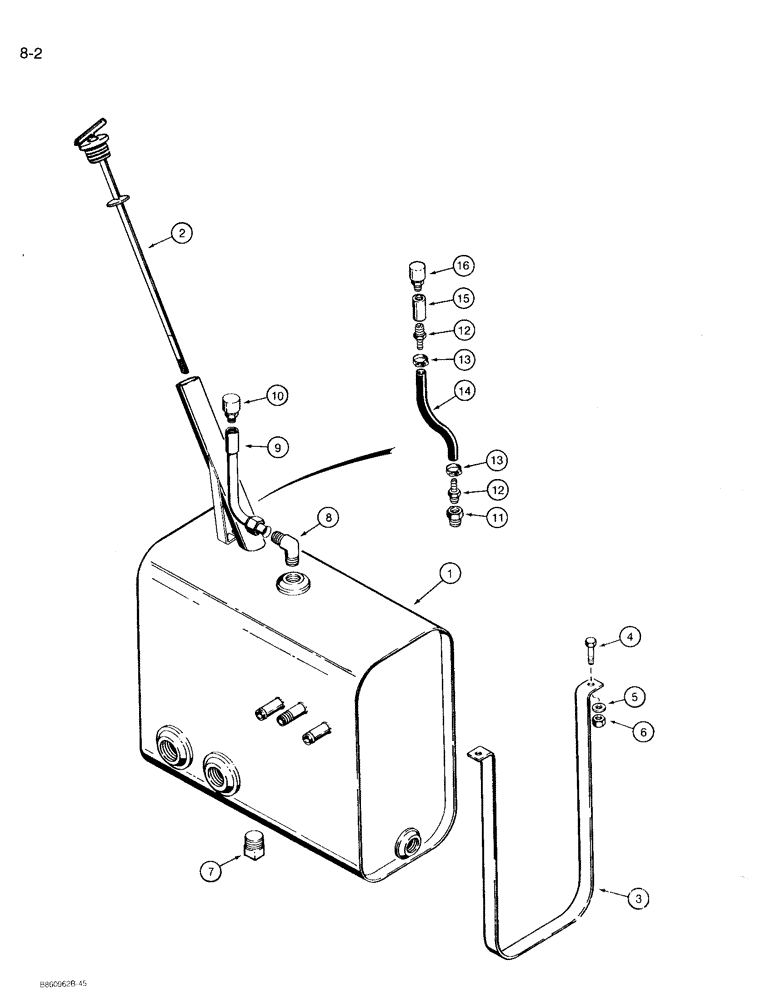

Запчасти Case 360 (8-02) - HYDRAULIC OIL RESERVOIR AND MOUNTING (08) - HYDRAULICS

1

H670836

TANK

RESERVOIR - hydraulic oil

1шт.

2

H433036

DIPSTICK

hydraulic oil reservoir level

1шт.

3

H430785

STRAP

hydraulic oil reservoir retaining

2шт.

4

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

5

H426775

WASHER

flat, 5/16 inch, hardened

4шт.

6

232-4115

LOCK NUT,5/16"-18, GC

4шт.

7

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

square head, 1-1/4 inch NPT, do not use galvanized plug

1шт.

8

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ELBOW - 90 degree

1шт.

9

H672427

TUBE,12.7 mm OD x 114,70 mm L

reservoir to breather, no longer used, order Ref. 11, 12, 13, 14, 15 and 16 for service

1шт.

10

31543

BREATHER

hydraulic oil reservoir, no longer used, order Ref. 11, 12, 13, 14, 15 and 16 for service

1шт.

11

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

reservoir

1шт.

12

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

straight, 1/4 inch barb end x 1/4 inch PT

2шт.

13

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

hose

2шт.

14

H358655

HOSE,0.25" ID x 16.00", SAE 30R2 Type 1

16 inch, hydraulic reservoir

1шт.

15

221-336

COUPLING,Pipe, 1/4" NPT

1шт.

16

31543

BREATHER

hydraulic reservoir

1шт.
