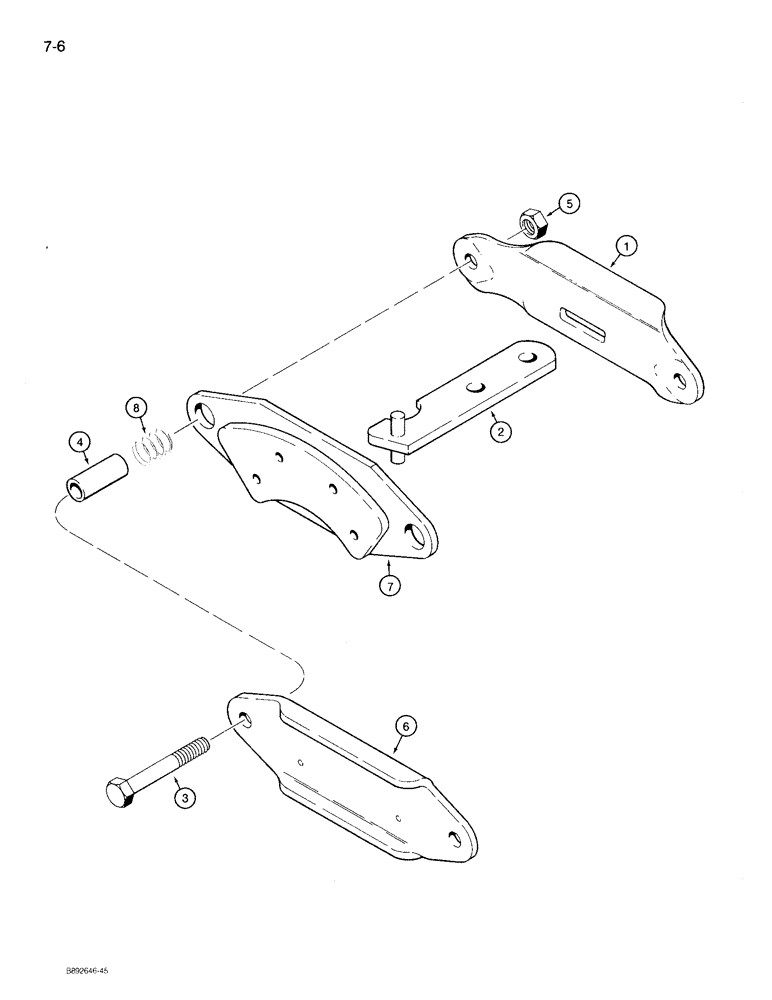

Запчасти Case 360 (7-06) - PARKING BRAKE CALIPER (07) - BRAKES

H673926

CALIPER

parking brake

1шт.

1

H437100

BRACKET

caliper mounting

1шт.

2

H437101

LEVER

actuating

1шт.

3

414-536

BOLT,Hex, 5/16" - 24 x 2-1/4", Gr 5

hex, 5/16 NF x 2-1/4 inch

2шт.

4

NSS

NOT SOLD SEPARAT

SPACER - bracket

2шт.

5

131-1169

LOCK NUT,5/16"-24, GA

2шт.

6

H437102

HOLDER

SHOE AND LINING - parking brake, outside

1шт.

7

H437104

HOLDER

SHOE AND LINING - parking brake, inside

1шт.

Ref 7 SHOULD BE H437102 THE INSIDE ONE WITH LARGER HOLES, AND REF. 6 SHOULD BE H437104 WITH LIP' IS OUTSIDE. per V. HILL, WICHITA. 12/10/99 NAPO TECH.

1шт.

8

H437103

SPRING

urethane, brake shoe return

2шт.
