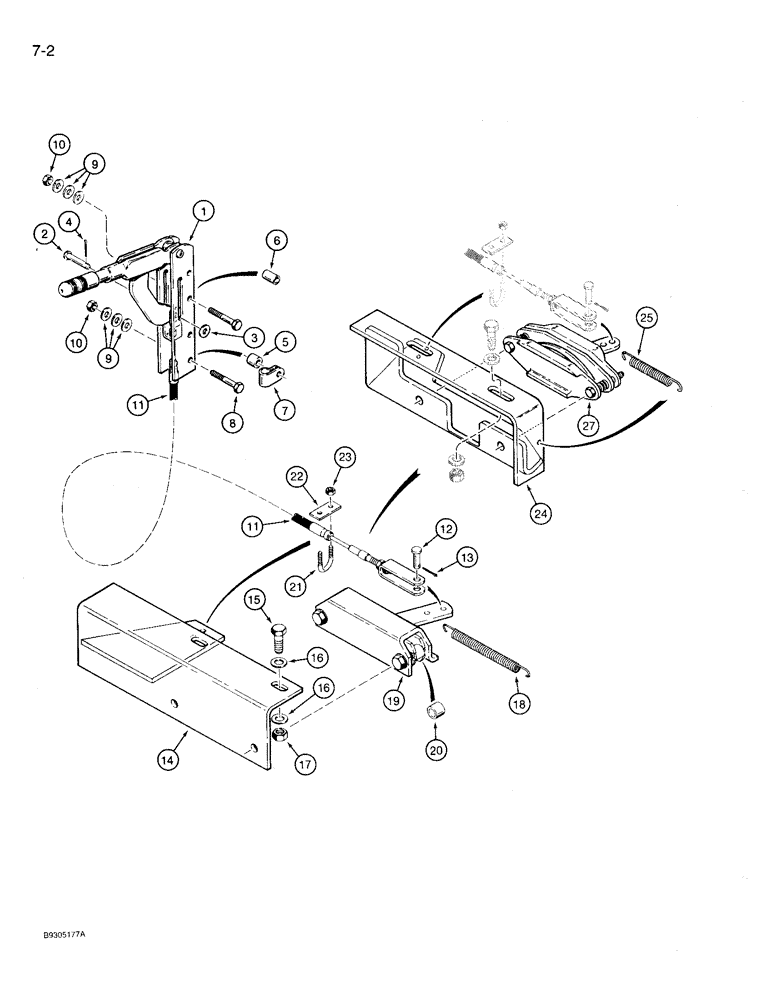

Запчасти Case 360 (7-02) - PARKING BRAKE (07) - BRAKES

H506881

HANDLE

LEVER ASSEMBLY - parking brake

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER - parking brake

1шт.

2

D42458

PIN

clevis, special

1шт.

3

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

1шт.

4

432-612

COTTER PIN,3/32" x 3/4"

1шт.

5

H53959

SPACER

1/2 inch (13 mm) long, parking brake lever, lower

1шт.

6

H53942

SPACER

3/4 inch (20 mm) long, parking brake lever, upper

1шт.

7

D40684

CLAMP,12.7mm ID, 8.78mm Bolt Hole, P Type

parking brake cable

1шт.

8

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

9

H426775

WASHER

flat, 5/16 inch, hardened

6шт.

10

232-4115

LOCK NUT,5/16"-18, GC

2шт.

11

H433341

CABLE

parking brake

1шт.

12

H44586

AXLE PIN

clevis, special

1шт.

13

432-816

COTTER PIN,1/8" x 1"

1шт.

14

H672254

BRACKET

parking brake caliper mounting, used with H638718 caliper assembly only, no longer available, order Ref. 24 bracket for service

1шт.

15

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

16

H274894

WASHER

flat, 1/2 inch, special

4шт.

17

232-4118

NUT,1/2"-13, GC

2шт.

18

H397406

SPRING

lever return, used item 14 bracket only

1шт.

19

H638718

CALIPER

parking brake, parts list page 7-4, no longer available, order Ref. 24, 25 and 26 for service

1шт.

20

H433988

SPRING

urethane, brake shoe return, used with Ref. 14 bracket only

2шт.

21

H166421

HARDWARE

special

1шт.

22

H373779

LARGE PLATE

PLATE, LARGE SPACER - U-bolt

1шт.

23

232-4114

LOCK NUT,1/4"-20, GC

2шт.

24

H673957

BRACKET

parking brake caliper mounting

1шт.

25

H437035

SPRING

lever return, used with Ref. 24 bracket only

1шт.

27

H673926

CALIPER

parking brake, parts list page 7-6

1шт.
