(6-28) - TIRES AND WHEELS

Запчасти Case 360 (6-28) - TIRES AND WHEELS (06) - POWER TRAIN

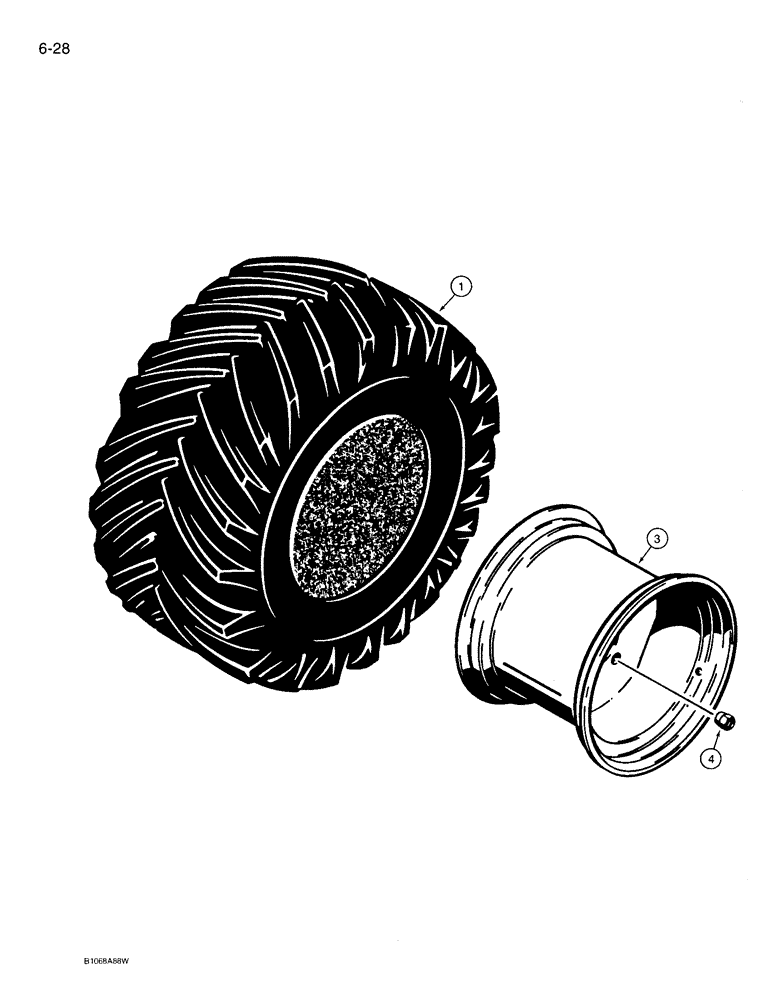

Схема запчастей Case 360 - (6-28) - TIRES AND WHEELS (06) - POWER TRAIN
3
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

TIRE - front and rear, 26 x 12 x 12, 4 ply, 12" Hi-Flotation, Super Terra Grip, purchase locally

4шт.

2

REF

INSTRUCTION

TUBE - tire, 12 x 12, not shown, purchase locally

4шт.

3

H672662

WHEEL

rim, 12 x 10.50

4шт.

4

N4221

WHEEL NUT

wheel retaining

20шт.

REF; 4A REPLACED BY 131-918 FLANGE NUT 1/2" - 20 PER H93VA41

1шт.
