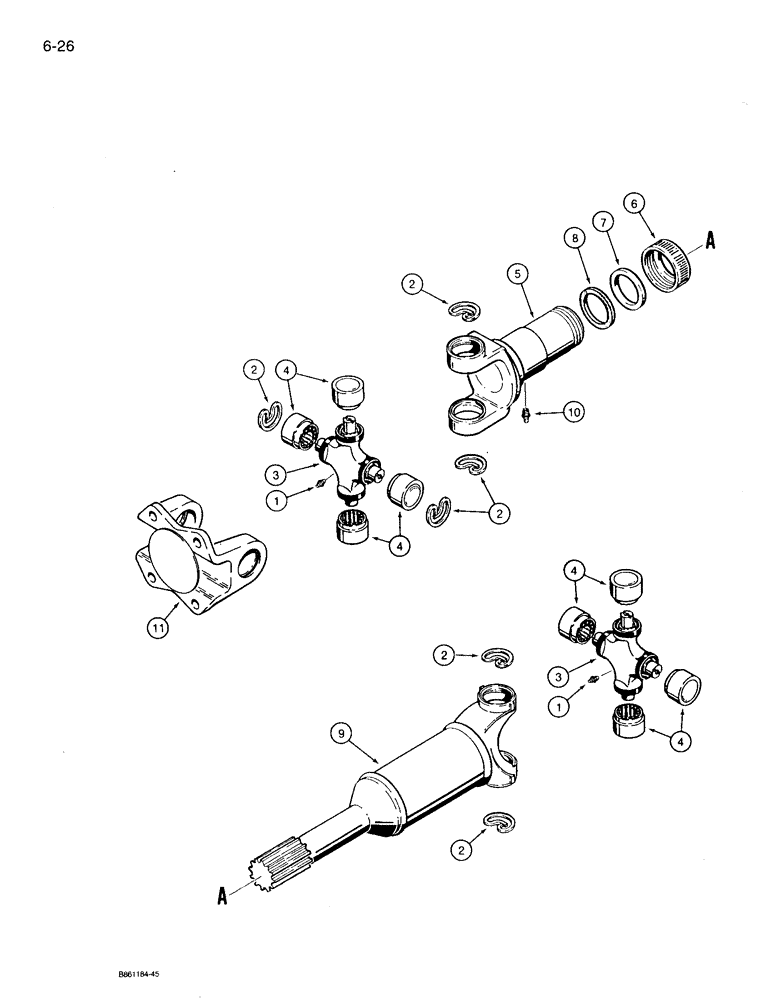

Запчасти Case 360 (6-26) - DRIVE SHAFT (06) - POWER TRAIN

H672125

SHAFT

drive, transmission to rear axle, Incl. Ref. 1 - 11

1шт.

D70629

U-JOINT SPIDER

KIT - universal joint, Incl. Ref. 1 - 4

2шт.

D70629 - 247895A1 U-joint

1шт.

1

219-10

LUBE NIPPLE,1/4" - 28 NPTF

straight, 1/4" - 28 NF taper

1шт.

2

11256

SNAP RING

snap, bearing retaining

4шт.

3

NSS

NOT SOLD SEPARAT

JOINT - universal, drive shaft

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING - universal joint

4шт.

5

H223867

YOKE

UNIVERSAL JOINT YOKE, Serial Range: slip,-axle

1шт.

Ref. 5 - 230555A1 Yoke, Slip

1шт.

REF: 5A ALTERNATE YOKE 102834A1

1шт.

ARTWORK ON REF: 5A & 6A ARE IN THE MAXI-C PARTS CATALOG.

1шт.

6

H223875

CYLINDER END CAP

dust

1шт.

REF: 6A ALTERNATE CAP (SNAP-ON TYPE)

1шт.

ARTWORK ON REF: 5A & 6A ARE IN THE MAXI-C PARTS CATALOG.

1шт.

7

H223891

WASHER

special, steel

1шт.

Ref. 7 - 230556A1 Seal, Dust

1шт.

8

H223883

WASHER

special, cork

1шт.

9

N13969

FORK

TUBE - drive shaft

1шт.

10

219-10

LUBE NIPPLE,1/4" - 28 NPTF

straight, 1/4" - 28 NF taper

1шт.

11

H251777

FLANGE

YOKE -, Serial Range: shaft-transmission

1шт.

102835A1 THIS CAP DOES NOT REQUIRE ITEMS # 7 - 8 & 10. GREASE FTG. IS SUPPLIED WITH CAP. PER ECN: H92SR06

1шт.
