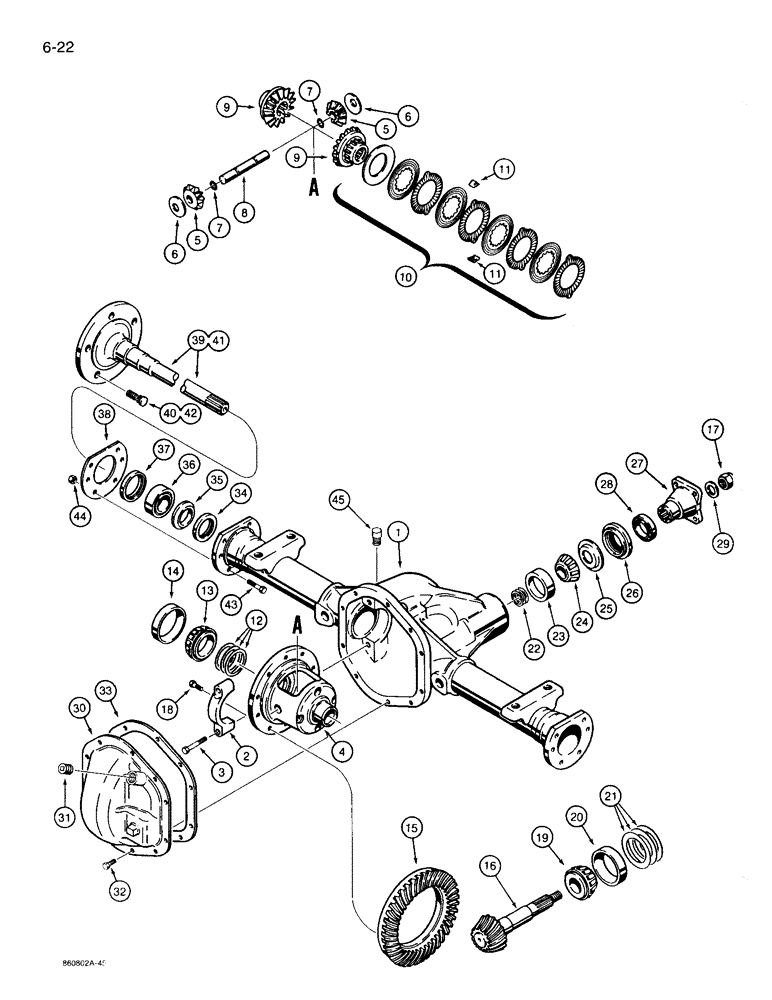

Запчасти Case 360 (6-22) - FRONT AND REAR AXLES (06) - POWER TRAIN

H670638

AXLE HOUSING

AXLE ASSEMBLY - front and rear, Incl. Ref. 1 - 45

2шт.

N14009

HOUSING

axle, Incl. Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - differential bearing

2шт.

3

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

4

H226688

CASE

differential, two pinion

1шт.

H572362

KIT

set, differential, two pinion, Incl. Ref. 5 - 9

1шт.

Ref #4, H226688 & 4A, H572362 sub to part nubmer 100862A1. 100862A1 consists of:

1шт.

100863A1 1 ea. Case

1шт.

H226712 2 ea. Pinions (NSS)

1шт.

H226704 2 ea. Gear (NSS)

1шт.

1 ea. Shaft (NSS) (no part number)

1шт.

38-11624 1 ea. Pin

1шт.

H226746 2 ea. Washers

1шт.

H572370 1 ea. Kit, Diff.

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR - pinion

2шт.

6

H226746

WASHER

thrust, pinion

2шт.

7

H226738

RING, SNAP

RING SNAP pinion

2шт.

8

NSS

NOT SOLD SEPARAT

SHAFT - pinion

1шт.

9

NSS

NOT SOLD SEPARAT

GEAR - side, axle shaft

2шт.

10

H572370

DISC

set, plates and clips, two pinion differential

1шт.

11

H226753

CLIP

plate

4шт.

12

H198259

SHIM,.003" Thk

Case adjustment (0.08 mm)

1шт.

12

H198267

SHIM,.005" Thk

Case adjustment (0.13 mm)

1шт.

12

H198275

SHIM,.010" Thk

Case adjustment (0.25 mm)

1шт.

12

H198283

SHIM,.030" Thk

Case adjustment (0.76 mm)

1шт.

13

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

tapered roller, case

2шт.

14

H753624

BEARING CUP

tapered roller bearing

2шт.

H621516

GEAR WHEEL

SHAFT AND GEAR - axle, ring gear and pinion shaft, Incl. Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR - ring, differential case

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT - pinion, input

1шт.

17

H197566

NUT

special, yoke retaining

1шт.

18

H225219

BOLT (SPREADER)

ring gear mounting

10шт.

19

128241R91

ROLLER BEARING,1.3755" ID x 1.125"

tapered roller, pinion shaft, inner

1шт.

20

128242R1

BEARING CUP,76.225 mm OD x 23.863 mm

pinion shaft bearing, inner

1шт.

21

H198150

SHIM,.003" Thk

Pinion shaft (0.08 mm), Inner

1шт.

21

H198168

SHIM,.005" Thk

Pinion shaft (0.13 mm), Inner

1шт.

21

H198176

SHIM,.010" Thk

Pinion shaft (0.25 mm), Inner

1шт.

22

H198010

SHIM,.003" Thk

Pinion shaft (0.08 mm), Outer

1шт.

22

H198028

SHIM,.005" Thk

Pinion shaft (0.13 mm), Outer

1шт.

22

H198036

SHIM,.010" Thk

Pinion shaft (0.25 mm), Outer

1шт.

22

H198044

SHIM,.030" Thk

Pinion shaft (0.76 mm), Outer

1шт.

23

A26746

BEARING CUP

tapered roller bearing, pinion shaft, outer

1шт.

24

128239R91

ROLLER BEARING,1.125" ID x 2.875" OD x 0.6875, 0.875"

tapered roller, pinion shaft, outer

1шт.

25

H197764

WASHER

oil, pinion shaft, inner

1шт.

26

N8427

OIL SEAL

oil, pinion shaft

1шт.

H670638

AXLE HOUSING

AXLE ASSEMBLY - front and rear, continued from Fig. 6-22

2шт.

27

H197582

YOKE

UNIVERSAL JOINT YOKE axle

1шт.

28

H196998

SPACER

oil, yoke

1шт.

29

H197574

WASHER

special, pinion shaft

1шт.

H672716

COVER ASSY

differential, Incl. Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

COVER - differential

1шт.

REF 30 IS PART NUMBER N8428 NOW AVAILABLE. COUPLER IS 221-585 PLUG IS 221-15, BOTH ARE WELDED INTO COVER.

1шт.

31

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

square socket, 3/4" NPT, magnetic, service replacement for square head plug used in production

1шт.

32

H226555

FLANGE BOLT

special, cover

10шт.

33

REF

INSTRUCTION

GASKET - cover, service with M20704 gasket, see below

1шт.

34

H198093

SEAL ASSY.

oil, axle shaft, inner

2шт.

35

N8429

RETAINER

retainer, seal

2шт.

36

H599266

BEARING ASSY

ball, wheel

2шт.

37

H757518

SEAL

oil, axle shaft, outer

2шт.

38

H315127

SEAL ASSY.

wheel bearing

2шт.

H615807

SHAFT

right-hand axle shaft on rear axle, left-hand axle shaft on front axle, Incl. Ref. 39 and 40

1шт.

39

NSS

NOT SOLD SEPARAT

SHAFT - axle

1шт.

40

H171090

WHEEL BOLT

special, wheel retaining

5шт.

H615815

SHAFT

left-hand axle shaft on rear axle, right-hand axle shaft on front axle, Incl. Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

SHAFT - axle

1шт.

42

H171090

WHEEL BOLT

special, wheel retaining

5шт.

43

H263103

BOLT

special, wheel bearing retaining

12шт.

44

232-4616

LOCK NUT,3/8"-24, GC

12шт.

45

H393199

VENT

1/8 inch NPT

1шт.

M20704

ADHESIVE

cover, form-in-place, 28 fluid ounces per tube

1шт.
