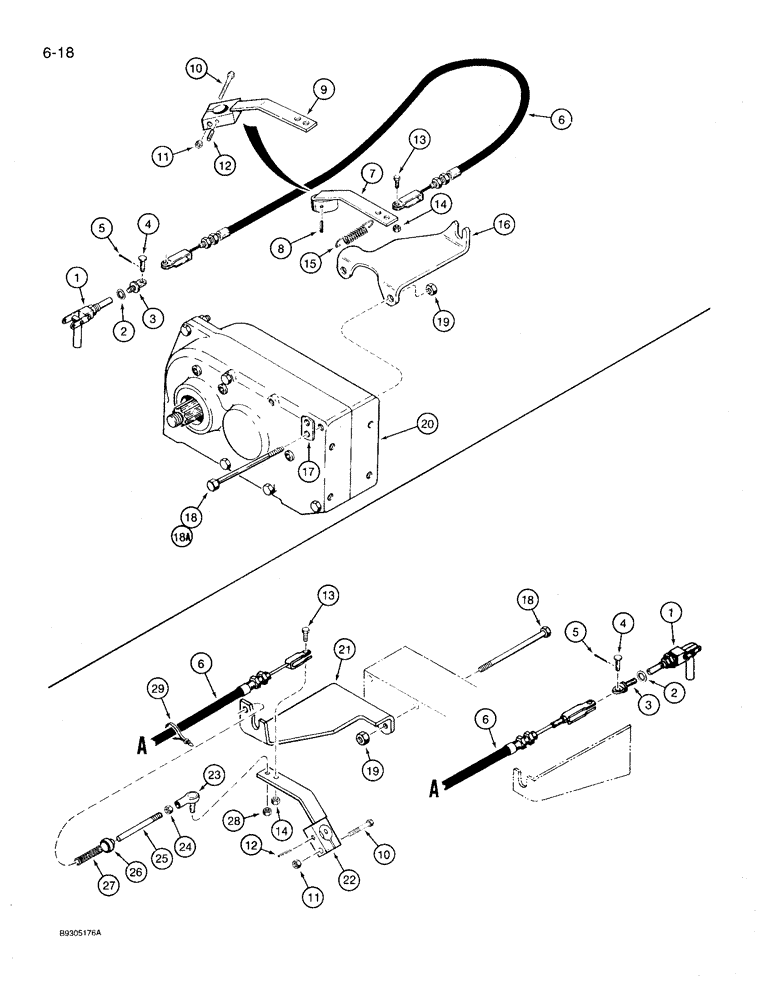

Запчасти Case 360 (6-18) - TRANSMISSION CONTROLS (06) - POWER TRAIN

1

H190629

LEVER

control, transmission shift

1шт.

2

193-61

LOCK WASHER,Int Tooth, 3/4"

1шт.

3

H278572

EYEBOLT

BOLT, EYE cable mounting

1шт.

4

H64824

CLEVIS PIN

5/16 x 3/4 inch

1шт.

5

432-816

COTTER PIN,1/8" x 1"

1шт.

6

H434241

CABLE ASSY.

pull, transmission shift

1шт.

7

H672552

LEVER

control, attaches to ground drive motor, if used

1шт.

8

138-142

LOCK PIN,1/4" x 2", Slotted

1шт.

9

H672715

LEVER

control, attaches to ground drive motor, if used

1шт.

10

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Used with Ref. 9 control lever, if used

1шт.

11

232-4115

LOCK NUT,5/16"-18, GC

Used with Ref. 9 control lever, if used

1шт.

12

138-142

LOCK PIN,1/4" x 2", Slotted

1шт.

13

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

14

232-4115

LOCK NUT,5/16"-18, GC

1шт.

15

H434565

SPRING

return, control lever, if used

1шт.

16

H434246

BRACKET

transmission cable mounting, if used

1шт.

17

H434244

PLATE

return spring anchor, if used

1шт.

18

413-692

BOLT,Hex, 3/8" - 16 x 5-3/4", Gr 5

hex, 3/8 NC x 5-3/4 inch, included with H672754 transmission assembly, parts list Fig. 6-20, used Ref. 16 and 17

2шт.

18a

413-684

BOLT,Hex, 3/8" - 16 x 5-1/4", Gr 5

hex, 3/8 NC x 5-1/4 inch, included with H672754 transmission assembly, parts list Fig. 6-20, replaces Ref.18 on models without Ref. 16 and 17

2шт.

19

232-4116

NUT,3/8"-16, GC

Included with H672754 transmission assembly, parts list Fig. 6-20

2шт.

20

H672754

GEARBOX ASSY

TRANSMISSION ASSEMBLY - ground drive, parts list Fig. 6-20

1шт.

21

H435624

BRACKET

transmission, cable mounting, if used

1шт.

22

H673180

LEVER

control, attaches to ground drive motor, if used

1шт.

23

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

ball, if used

1шт.

24

425-155

JAM NUT,Jam, 5/16"-24, G5

Hex, if used

1шт.

25

H435623

ROD

control, if used

1шт.

26

D63156

SPRING CUP

spring, if used

1шт.

27

H435625

SPRING

control rod, if used

1шт.

28

131-1169

LOCK NUT,5/16"-24, GA

If used

1шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, if used

1шт.
