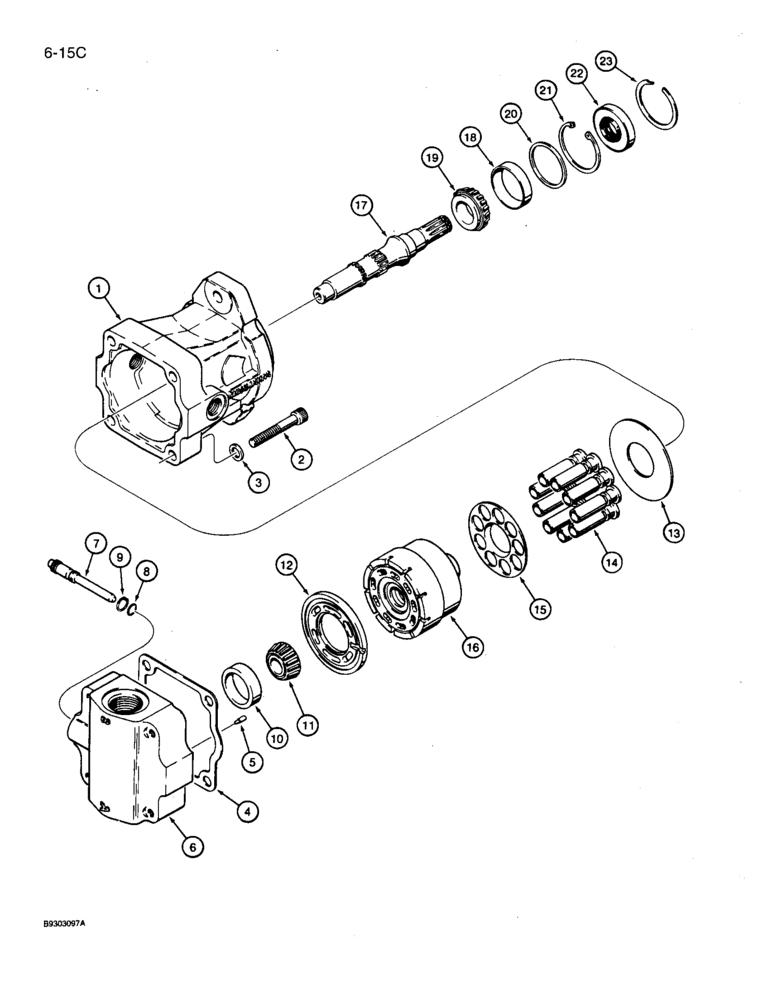

Запчасти Case 360 (6-15C) - GROUND DRIVE MOTOR - H673357, P.I.N. JAF0104134 AND AFTER (06) - POWER TRAIN

H673357

MOTOR

ground drive, Incl. Ref. 1 - 23

1шт.

H673357 IS REPLACED WITH A 224216A1

1шт.

MOTOR ASSY EFF: 4/96 PER H95A311.

1шт.

1

H436031

HOUSING

output shaft end

1шт.

2

61-740

HEX SOC SCREW,7/16"-14 x 2 1/2"

hex socket head, 7/16 NC x 2-1/2 inch

4шт.

3

495-21050

WASHER,7/16"

(Flat, 1/2 x 1-1/4 x 5/64")

4шт.

4

H354076

GASKET

housing

1шт.

5

H351445

PIN

clevis, housing alignment

1шт.

6

H435884

CAP

end, motor

1шт.

REF: 6A REPLACED BY 234853A1 CAP PER

1шт.

7

133482C1

VALVE

bypass

1шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

backup

1шт.

10

651814R1

BEARING CUP

bearing, output shaft, at end cap

1шт.

11

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

tapered roller, output shaft, at end cap

1шт.

11

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

REF: 11 Cup included in Set PN 651814R1

1шт.

12

H351387

LARGE PLATE

PLATE, LARGE valve

1шт.

13

H351379

PLATE, THRUST

thrust

1шт.

H673277

BLOCK

cylinder, motor, Incl. Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - motor

9шт.

15

NSS

NOT SOLD SEPARAT

RETAINER - piston

1шт.

16

NSS

NOT SOLD SEPARAT

BLOCK - piston cylinder

1шт.

17

H354100

SHAFT

output

1шт.

18

572564R1

BEARING CUP

tapered roller bearing, output shaft, at housing

1шт.

19

D29266

ROLLER BEARING,1" ID x 0.58"

tapered roller, output shaft, at housing

1шт.

20

H354050

WASHER

motor

1шт.

21

B13252

RING, SNAP

RING SNAP retaining, inner

1шт.

22

H756296

SEAL

shaft, output

1шт.

23

H436032

RING

retaining, outer

1шт.

Cultivators; 4300,4500,4800,4900, 184 and 1840

1шт.

Chisel Plows; 5600, 5700 and 5800

1шт.

Disk Harrow; 3900,3950, 3950HD, 3900HP

1шт.

Planters; 56, 58, 66, 87, 90 Series, 601 and 955

1шт.

Drills; 7100, 7200 and 8600

1шт.

H95SR55 RELEASE FOR NEW MOTOR.

1шт.
