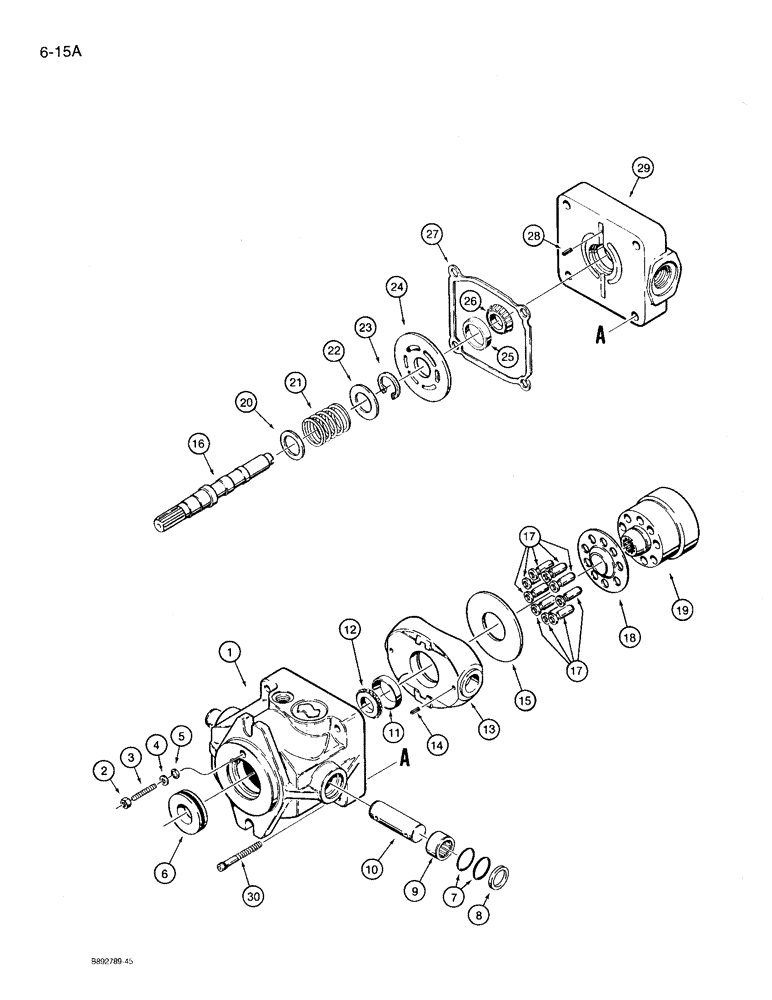

Запчасти Case 360 (6-15A) - GROUND DRIVE MOTOR - H673359, PRIOR TO P.I.N. JAF0104134 (06) - POWER TRAIN

H673359

MOTOR

ground drive, Incl. Ref. 1 - 30

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - output shaft end

1шт.

2

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

3

84-528

SPARE PART set, hex socket, cup point, 5/16 NF x 1-3/4 inch Hex Soc, 5/16"-24 x 1 3/4"

1шт.

4

H354043

WASHER

special

1шт.

5

H264382

WASHER

special, threaded

1шт.

6

H756296

SEAL

shaft, output

1шт.

H435819

GASKET KIT

trunnion seal, Incl. Ref. 7 and 8

2шт.

7

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

bushing

2шт.

8

N14149

BUSHING

housing

1шт.

9

A12652

NEEDLE BEARING,1" ID x 1.251" OD x 0.75"

needle, swash plate

2шт.

10

H351429

SHAFT

swash plate

2шт.

11

D29267

BEARING CUP,1.98" OD x 0.42"

tapered roller bearing, output shaft, at housing

1шт.

12

463911R91

ROLLER BEARING,1" ID x 0.58"

tapered roller, output shaft, at housing

1шт.

13

N7975

LARGE PLATE

PLATE, LARGE swash

1шт.

14

138-2069

PIN,5/16" x 3/4", Coiled

4шт.

15

H351379

PLATE, THRUST

thrust

1шт.

16

H436034

SHAFT

output

1шт.

H673277

BLOCK

cylinder, motor, Incl. Ref. 17 - 23

1шт.

17

NSS

NOT SOLD SEPARAT

PISTON - motor

9шт.

18

NSS

NOT SOLD SEPARAT

RETAINER - piston

1шт.

19

NSS

NOT SOLD SEPARAT

BLOCK - piston cylinder

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - thrust, spring, inner

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - block

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - spring, outer

1шт.

23

NSS

NOT SOLD SEPARAT

RING - snap, cylinder block

1шт.

24

H351387

LARGE PLATE

PLATE, LARGE valve

1шт.

25

B12410

BEARING, CUP,1.782" OD

bearing, output shaft, at end cap

1шт.

26

B12411

ROLLER BEARING,0.75" ID x 0.655"

tapered roller, output shaft, at end cap

1шт.

27

H305441

GASKET

housing

1шт.

28

H351445

PIN

clevis, housing alignment

1шт.

29

H351452

CAP

end, motor

1шт.

30

61-736

HEX SOC SCREW,7/16"-14 x 2 1/4"

hex socket head, 7/16 NC x 2-1/4 inch

4шт.
