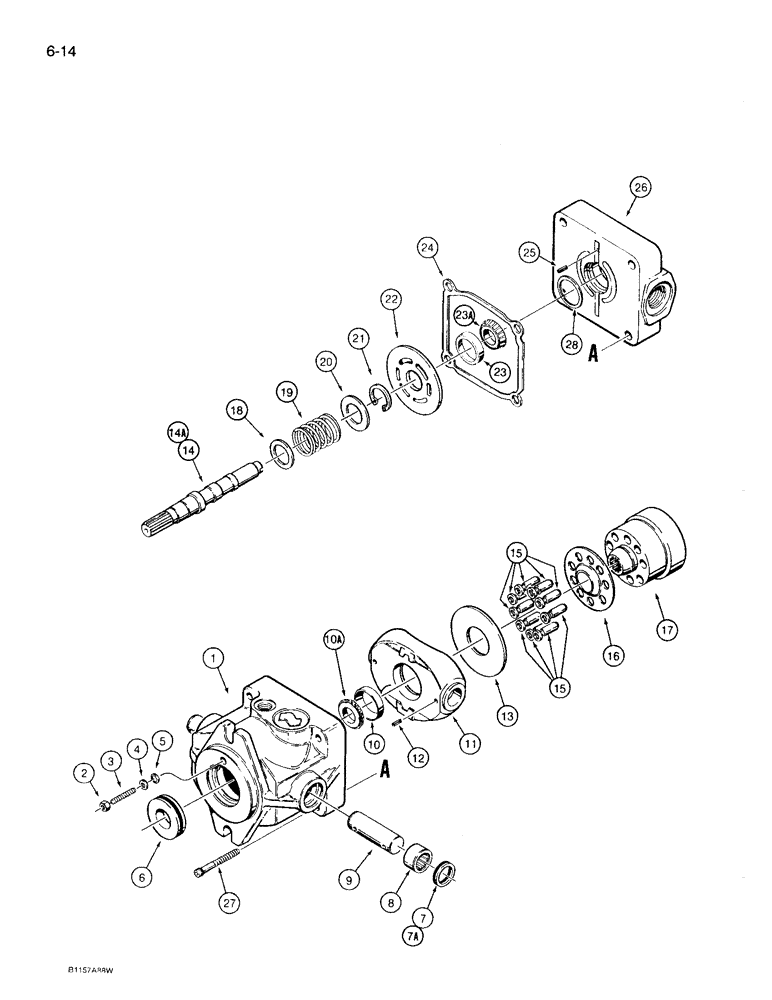

Запчасти Case 360 (6-14) - GROUND DRIVE MOTOR (06) - POWER TRAIN

H585299

MOTOR

ground drive, no longer available, for service order H673359 motor assembly, see Fig. 6-15A

1шт.

4003 has a 12% minimum swash, no bypass valve and no double O-ring. The output is 13 tooth.

1шт.

4040 has a 13% minimum swash, does have a bypass valve (generally used in towing) and has a double O-ring. the output is 13 tooth.

1шт.

Motor mounts are at same place but if used the 4040 although the same in average, may be a slight bit slower in high range than the 4003.

1шт.

H585299 (SS# 18-4003) Motor Assy says to order H673359 (SS# 18-4040). these are similar but are not directly interchangeable per the following.

1шт.

H672978

MOTOR

ground drive, no longer available, for service order H673359 motor assembly, see Fig. 6-15A, Incl. Ref. 1 - 28

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - output shaft end

1шт.

2

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

3

84-528

SPARE PART hex socket, cup point, 5/16" - 24 NF x 1-3/4" Hex Soc, 5/16"-24 x 1 3/4"

1шт.

4

H354043

WASHER

special

1шт.

5

H264382

WASHER

special, threaded

1шт.

6

H756296

SEAL

shaft, output

1шт.

7

H354001

SEAL ASSY.

shaft, swash plate, H585299 motor assembly

2шт.

7a

H435819

GASKET KIT

shaft, swash plate, H672978 motor assembly

2шт.

8

A12652

NEEDLE BEARING,1" ID x 1.251" OD x 0.75"

needle, swash plate

2шт.

9

H351429

SHAFT

swash plate

2шт.

10

572564R1

BEARING CUP

tapered roller bearing, output shaft, at housing

1шт.

10a

D29266

ROLLER BEARING,1" ID x 0.58"

tapered roller, output shaft, at housing

1шт.

11

N7975

LARGE PLATE

PLATE, LARGE swash

1шт.

12

138-2069

PIN,5/16" x 3/4", Coiled

4шт.

13

H351379

PLATE, THRUST

thrust

1шт.

14

N8389

SHAFT

output, H585299 motor assembly

1шт.

14a

138176C1

SHAFT

output, H672978 motor assembly

1шт.

H632489

BLOCK

cylinder, motor, Incl. Ref. 15 - 21

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON - motor

9шт.

16

NSS

NOT SOLD SEPARAT

RETAINER - piston

1шт.

17

NSS

NOT SOLD SEPARAT

BLOCK - piston cylinder

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - thrust, spring, inner

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING - block

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - spring, outer

1шт.

21

NSS

NOT SOLD SEPARAT

RING - snap, cylinder block

1шт.

22

H351387

LARGE PLATE

PLATE, LARGE valve

1шт.

23

B12410

BEARING, CUP,1.782" OD

bearing, output shaft, at end cap

1шт.

23a

B12411

ROLLER BEARING,0.75" ID x 0.655"

tapered roller, output shaft, at end cap

1шт.

24

H305441

GASKET

housing

1шт.

25

H351445

PIN

clevis, housing alignment

1шт.

26

H351452

CAP

end, motor

1шт.

27

61-736

HEX SOC SCREW,7/16"-14 x 2 1/4"

hex socket head, 7/16" - 14 NC x 2-1/4"

4шт.

28

N9525

SHIM,.010" Thk

(0.25 mm), H585299 motor assembly only

1шт.
