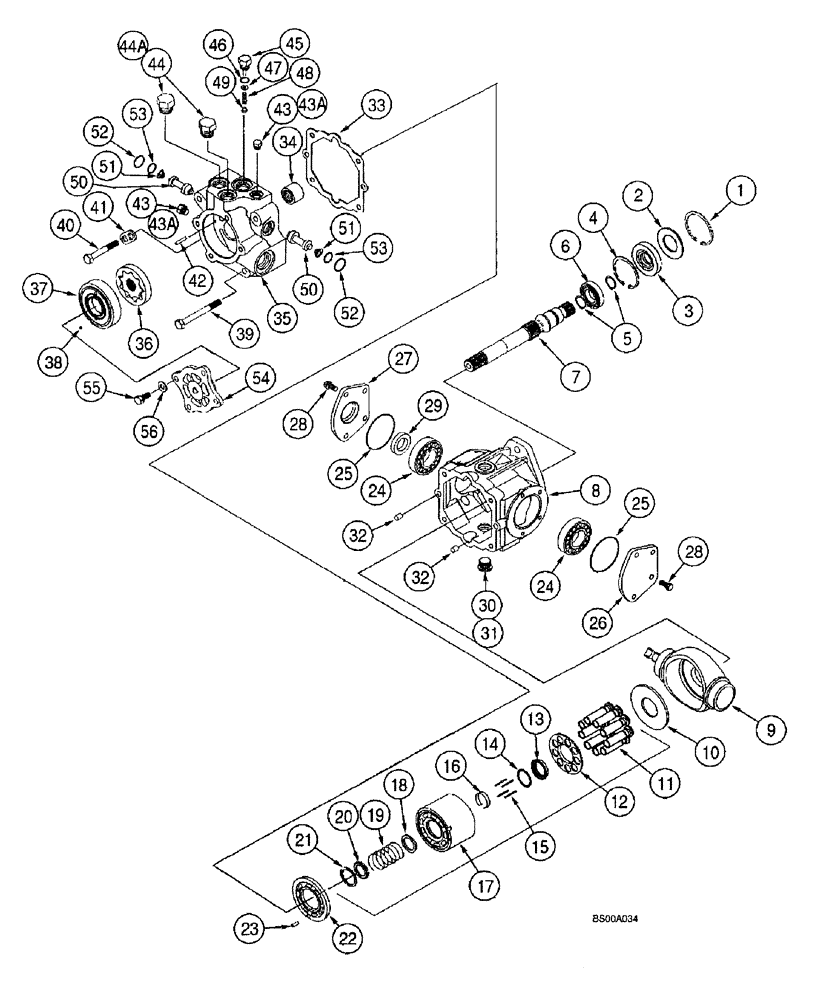

Запчасти Case 360 (6-13E) - GROUND DRIVE PUMP (06) - POWER TRAIN

239919A1

PUMP

ground drive, Incl. Ref. 1 - 56

1шт.

1

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

1шт.

2

241589A1

SEALING WASHER,38.1mm ID x 71.75mm OD x 2.16mm Thk

seal support

1шт.

3

N14103

SEAL

carrier

1шт.

4

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

1шт.

5

100-11137

SNAP RING,#137, Ext

2шт.

6

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

ball

1шт.

7

251664A1

SHAFT

input drive

1шт.

8

241587A1

HOUSING

pump, input shaft end

1шт.

9

241593A1

PIVOT PLATE

swash

1шт.

10

100700A1

PLATE

thrust

1шт.

100706A1

CYLINDER BLOCK

Incl. Ref. 11 - 21

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON - pump

9шт.

12

176376A1

COLLAR

piston

1шт.

13

176375A1

GUIDE RING

retainer

1шт.

14

100705A1

THRUST WASHER

thrust

1шт.

15

117381A1

SPLIT PIN/SAFETY PIN

retainer

4шт.

16

117382A1

SPLIT PIN/SAFETY PIN

pin

1шт.

17

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

18

176372A1

WASHER

thrust

1шт.

19

176373A1

SPRING

cylinder block

1шт.

20

115950A1

WASHER

spring

1шт.

21

102-22162

SNAP RING,43.20mm ID, Int, Spiral

internal spiral retaining, No. 162

1шт.

22

124841A1

PLATE

valve

1шт.

23

38-11210

LOCK PIN,3/16" x 5/8", Slotted

1шт.

24

241590A1

BEARING ASSY

2шт.

25

239-5146

O-RING,Square, 0.094" Thk x 2.612" ID, -146, Cl 5, 75 Duro

2шт.

26

H438310

COVER

housing

1шт.

27

H438311

COVER

CARRIER - housing

1шт.

28

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

Full Thd

8шт.

29

H438288

SEAL

lip

1шт.

30

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 31

1шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

32

F23124

AXLE PIN

locating

2шт.

33

124826A1

GASKET

end cap

1шт.

34

132391A1

BEARING, NEEDLE

1шт.

35

124839A1

CAP

end

1шт.

36

124842A1

ROTOR ASSY.

complete, pump

1шт.

37

124843A1

SPACER

gerotor

1шт.

38

211-1006

BALL,3/16" Dia

1шт.

39

828-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

2шт.

40

828-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9

2шт.

41

100703A1

PLATE, SPACER

PLATE,SPACER lifting

1шт.

42

H351445

PIN

dowel

1шт.

43

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 43A

2шт.

44

86512512

PLUG,7/8" - 14 ORB

2шт.

44a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

45

234850A1

PLUG

hex, Incl. Ref. 46

1шт.

46

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

47

132377A1

BLOCK

shim

1шт.

48

H438299

SPRING

compression

1шт.

49

H438300

POPPET

plug

1шт.

50

258793A1

VALVE POPPET

check valve

2шт.

51

N14435

SPRING

relief valve

2шт.

52

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

53

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

54

234851A1

COVER

gerotor

1шт.

55

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

56

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

355831A1

SEAL KIT

seal repair, overhaul

1шт.

43a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
