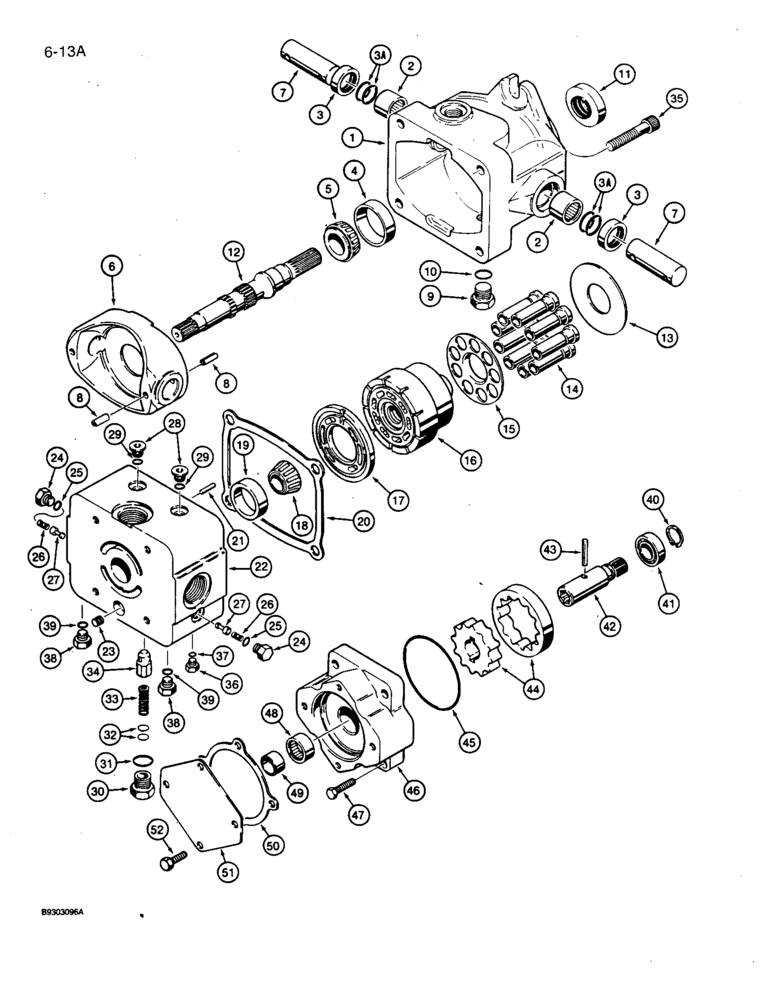

Запчасти Case 360 (6-13A) - GROUND DRIVE PUMP (06) - POWER TRAIN

H673356

PUMP

ground drive, Sundstrand P/N 18-2111-88-10, Incl. Ref. 1 - 52

1шт.

H673356 PUMP ASSY REPLACED BY 224045A1 PUMP ASSY PER RELEASE H95A311 ON 18 SERIES

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - input shaft end

1шт.

2

A12652

NEEDLE BEARING,1" ID x 1.251" OD x 0.75"

needle, trunnion shaft

2шт.

H435819

GASKET KIT

seal, bearing, Incl. Ref. 3 and 3A

2шт.

3

N14149

BUSHING

housing

1шт.

3a

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

2шт.

4

572564R1

BEARING CUP

tapered roller bearing

1шт.

5

D29266

ROLLER BEARING,1" ID x 0.58"

tapered roller, input shaft, outer

1шт.

6

N7975

LARGE PLATE

PLATE, LARGE swash, pistons

1шт.

7

133473C1

SHAFT

trunnion, with pin hole

2шт.

8

138-2069

PIN,5/16" x 3/4", Coiled

4шт.

9

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Incl. Ref. 10

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

H756296

SEAL

lip, input shaft

1шт.

12

H436036

SHAFT

input

1шт.

12a

234847A1

SHAFT

Input

1шт.

13

H351379

PLATE, THRUST

1шт.

H673277

BLOCK

cylinder, Incl. Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - pump

9шт.

15

NSS

NOT SOLD SEPARAT

RETAINER - piston

1шт.

16

NSS

NOT SOLD SEPARAT

BLOCK - piston

1шт.

17

H351387

LARGE PLATE

PLATE, LARGE

1шт.

18

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

tapered roller, shaft, inner

1шт.

18

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

REF: 18 Cup included in Set PN 651814R1

1шт.

19

651814R1

BEARING CUP

tapered roller bearing, shaft, inner

1шт.

20

71895C2

GASKET

housing

1шт.

21

H351445

PIN

dowel, valve plate alignment

1шт.

22

H436023

CAP

port end

1шт.

23

VIBRO2000

CATALOG

expansion

1шт.

24

N14436

PLUG

check valve, Incl. Ref. 25

2шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

N14435

SPRING

check valve

2шт.

27

N14437

VALVE POPPET

check valve

2шт.

28

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 29

2шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

the Sundstrand M35 pump is installed on newer 360 trenchers. The part number is 239919A1. It has a square shaft for the mounting of the control arm

1шт.

O-RINGS AND SEAL KIT ALSO LISTED

1шт.

Cultivators; 4300,4500,4800,4900, 184 and 1840

1шт.

Chisel Plows; 5600, 5700 and 5800

1шт.

Disk Harrow; 3900,3950, 3950HD, 3900HP

1шт.

Planters; 56, 58, 66, 87, 90 Series, 601 and 955

1шт.

Drills; 7100, 7200 and 8600

1шт.

N7977

BLOCK

shim, relief valve, Includes: Shims

2шт.

32

NSS

NOT SOLD SEPARAT

SHIM - .002 inch thick

3шт.

32

NSS

NOT SOLD SEPARAT

SHIM - .005 inch thick

2шт.

32

NSS

NOT SOLD SEPARAT

SHIM - .010 inch thick

1шт.

32

NSS

NOT SOLD SEPARAT

SHIM - .032 inch thick

1шт.

32

NSS

NOT SOLD SEPARAT

SHIM - .050 inch thick

1шт.

33

H387688

SPRING

relief valve

1шт.

34

H387670

VALVE POPPET

charge pump

1шт.

35

61-34436

SCREW - hex socket cap, 7/16 NC x 2-1/4 inch

4шт.

36

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 37

1шт.

37

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

38

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 39

2шт.

39

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

40

103-1162

SNAP RING,#62, Ext

bearing, CLIP - hose (74122 mtg.)

1шт.

41

H757948

BEARING

charge pump shaft, inner

1шт.

42

H351411

SHAFT

charge pump

1шт.

43

H436024

PIN

shaft

1шт.

H673360

KIT

charge pump assembly, Incl. Ref. 44 - 52

1шт.

44

V37352

ROTOR ASSY.

complete

1шт.

45

238-5036

O-RING,0.07" Thk x 2.364" ID, -36, Cl 5, 75 Duro

1шт.

46

NSS

NOT SOLD SEPARAT

HOUSING - charge pump

1шт.

47

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

48

A30588

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W

needle, charge pump shaft, outer

1шт.

49

F60377

RACE

needle bearing

1шт.

50

H297994

GASKET

housing

1шт.

51

H337311

LARGE PLATE

PLATE, LARGE cover, housing

1шт.

52

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.
