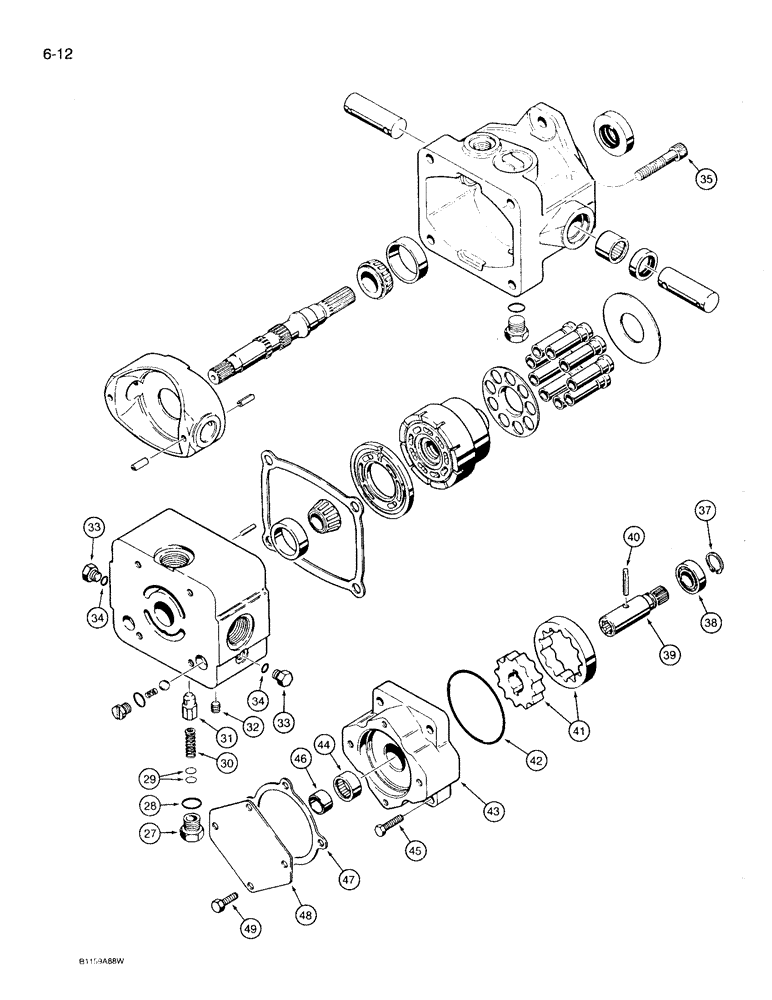

Запчасти Case 360 (6-12) - GROUND DRIVE PUMP (06) - POWER TRAIN

REF

INSTRUCTION

PUMP ASSEMBLY - ground drive, continued from previous page

1шт.

H591545

LOCK VALVE

Relief, charge pump, Incl. Ref. 27 - 31

1шт.

27

H387696

PLUG

relief valve

1шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

N7977

BLOCK

shim, relief valve, Includes: Shims

2шт.

29

NSS

NOT SOLD SEPARAT

SHIM - .002 inch thick

3шт.

29

NSS

NOT SOLD SEPARAT

SHIM - .005 inch thick

2шт.

29

NSS

NOT SOLD SEPARAT

SHIM - .010 inch thick

1шт.

29

NSS

NOT SOLD SEPARAT

SHIM - .032 inch thick

1шт.

29

NSS

NOT SOLD SEPARAT

SHIM - .050 inch thick

1шт.

30

H387688

SPRING

relief valve

1шт.

31

H387670

VALVE POPPET

charge pump

1шт.

32

F23137

PLUG

pipe

2шт.

33

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 34

2шт.

34

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

35

61-736

HEX SOC SCREW,7/16"-14 x 2 1/4"

hex socket head, 7/16 NC x 2-1/4 inch

4шт.

37

49476

SUPPORT

bearing

1шт.

38

H757948

BEARING

ball, charge pump shaft, inner

1шт.

39

H351411

SHAFT

charge pump

1шт.

H591529

KIT

charge pump assembly, H672498 pump assembly

1шт.

H673278

KIT

charge pump assembly, H672977 pump assembly, Incl. Ref. 40 - 49

1шт.

40

H757070

PIN

shaft

1шт.

41

V37352

ROTOR ASSY.

complete

1шт.

42

S5629

O-RING,2.239" ID x 2.379" OD x 0.07"

housing to end cap

1шт.

43

NSS

NOT SOLD SEPARAT

HOUSING - charge pump

1шт.

44

A30588

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W

needle, charge pump shaft, outer

1шт.

45

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

46

F60377

RACE

needle bearing

1шт.

47

H297994

GASKET

housing

1шт.

48

H337311

LARGE PLATE

PLATE, LARGE cover, housing

1шт.

49

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

the Sundstrand M35 pump is installed on newer 360 trenchers. The part number is 239919A1. It has a square shaft for the mounting of the control arm

1шт.
