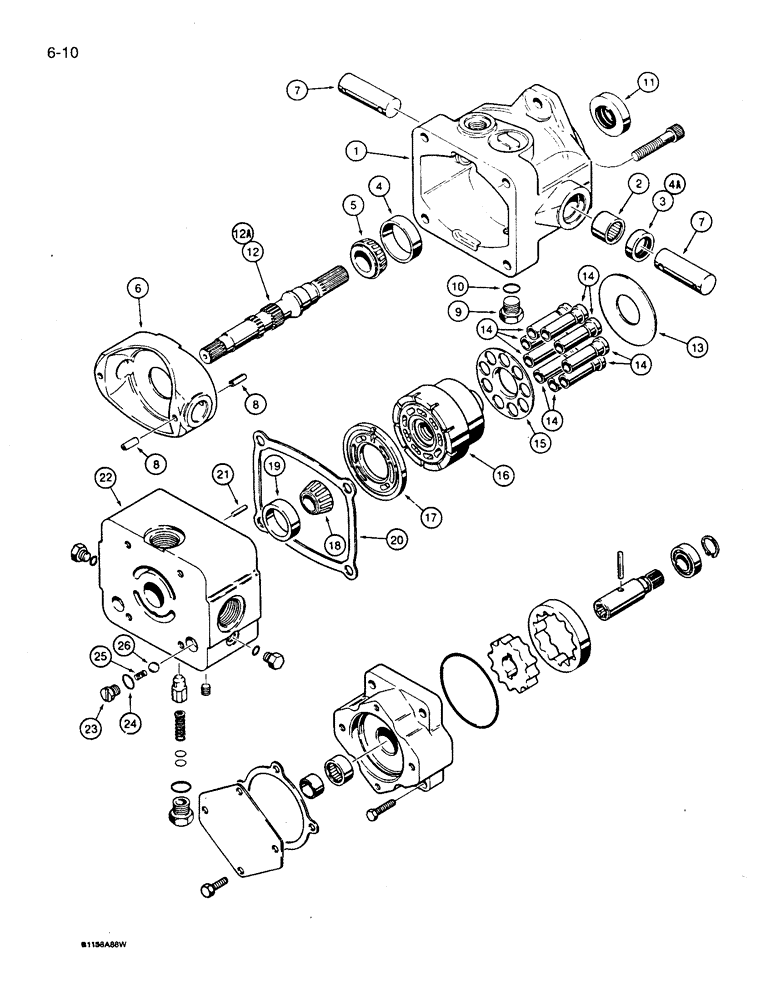

Запчасти Case 360 (6-10) - GROUND DRIVE PUMP (06) - POWER TRAIN

H672498

PUMP

ground drive, Sundstrand part no. 18-2095, no longer available, order H673356, Fig. 6-13A

1шт.

CHANGE REFERENCE TO H672498 PUMP ASSY TO ORER # H673356 THIS # IS REPLACED SEE Fig. 6-9 REF. # 1A.

1шт.

H672977

PUMP

ground drive, Sundstrand part no. 18-2111, no longer available, order H673356, Fig. 6-13A, Includes: Ref. 1 - 26

1шт.

N13686

HOUSING

H672498 pump assembly, input shaft end, Incl. Ref. 1 - 4

1шт.

N8021

HOUSING

H672977 pump assembly, input shaft end

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - input shaft end

1шт.

2

A12652

NEEDLE BEARING,1" ID x 1.251" OD x 0.75"

needle, trunnion shaft

2шт.

3

H354001

SEAL ASSY.

lip, bearing, H672498 pump assembly

2шт.

4

572564R1

BEARING CUP

tapered roller bearing

1шт.

4a

H435819

GASKET KIT

H672977 pump assembly

2шт.

5

D29266

ROLLER BEARING,1" ID x 0.58"

tapered roller, input shaft, outer

1шт.

6

N7975

LARGE PLATE

PLATE, LARGE swash, pistons

1шт.

7

H351429

SHAFT

trunnion, with pin hole

2шт.

8

138-2069

PIN,5/16" x 3/4", Coiled

Trunnion shafts

4шт.

9

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Housing

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Plug

1шт.

11

H756296

SEAL

lip, input shaft

1шт.

12

N13961

SHAFT

input, H672498 pump assemby

1шт.

12a

138176C1

SHAFT

input, H672977 pump assembly

1шт.

13

H351379

PLATE, THRUST

1шт.

H632489

BLOCK

cylinder, H672498 pump assembly

1шт.

H673277

BLOCK

cylinder, H672977 pump assembly, Incl. Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - pump

9шт.

15

NSS

NOT SOLD SEPARAT

RETAINER - piston

1шт.

16

NSS

NOT SOLD SEPARAT

BLOCK - piston

1шт.

17

H351387

LARGE PLATE

PLATE, LARGE valve

1шт.

18

B12411

ROLLER BEARING,0.75" ID x 0.655"

tapered roller, shaft, inner

1шт.

19

B12410

BEARING, CUP,1.782" OD

tapered roller bearing, shaft, inner

1шт.

20

H305441

GASKET

housing

1шт.

21

H351445

PIN

dowel, valve plate alignment

1шт.

22

H351403

CAP

port end

1шт.

23

D63410

PLUG

check valve, port end housing

2шт.

25

D63409

VALVE SPRING

check valve

2шт.

26

211-212

BALL

7/16 inch, grade 25, chrome alloy steel, check valve

2шт.

the Sundstrand M35 pump is installed on newer 360 trenchers. The part number is 239919A1. It has a square shaft for the mounting of the control arm

1шт.

24

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, plug

2шт.
