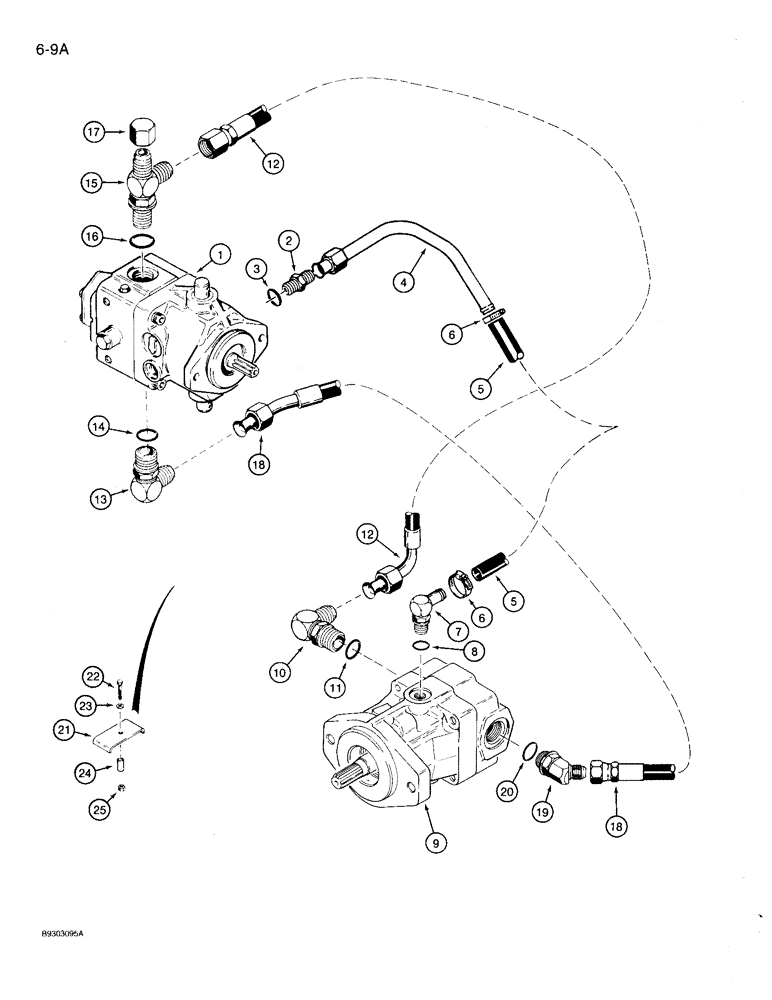

Запчасти Case 360 (6-09A) - GROUND DRIVE HYDRAULIC CIRCUIT, P.I.N. JAF0104134 AND AFTER (06) - POWER TRAIN

P.I.N. JAF0104134 AND AFTER

1шт.

1

H673356

PUMP

PUMP ASSEMBLY - ground drive, parts list Fig. 6-13A

1шт.

REF; 1A 224045A1 PUMP ASSY - REPLACES REF. # 1 PER H95A311 RELEASE. EFF. 4-1-96 09-MAY-96

1шт.

See Fig. 5-2, items 25 and 31 for correct control levers used with this pump

1шт.

Ref. 1 - When this pump replaces the old style, caution should be used as the old control levers won't fit unless they have all ready been changed to the split type (Ref. 25 and 31 on Fig. 5-2)

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Straight, O-Ring boss, Incl. Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

H672334

TUBE,19 mm OD

ground drive pump to ground drive motor supply hose

1шт.

REF; 4A 233743A1 TUBE - REPLACES REF. # 4

1шт.

5

H317271

HOSE

3/4 inch (19 mm) ID x 30" (762 mm) long, ground drive motor supply, cut from H379214 bulk hose, see below

1шт.

6

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

adj, 11/16 - 1-1/4 inch dia

2шт.

7

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

P.I.N. JAF0104134 And After, Ref. 7

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

H673357

MOTOR

ground drive, parts list Fig. 6-15C

1шт.

REF; 9A 224216A1 MOTOR ASSY - REPLACES REF. # 9 PER H95A311 RELEASE 09-MAY-96

1шт.

10

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adj. O-Ring, Incl. Ref. 11

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

H433287

HOSE

53 inch (1346 mm) long, ground drive pump and motor loop, prior to P.I.N. JAF0104157

1шт.

12

121931A1

HYDRAULIC HOSE

55 inch (1400 mm) long, ground drive pump and motor loop, P.I.N. JAF0104157 and after

1шт.

REF; 12A 233740A1 REPLACES BOTH HOSES CALLED OUT IN REF 12.

1шт.

13

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adj. O-Ring, Incl. Ref. 14

1шт.

14

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

15

218-5585

TEE,37 Degree, 1 1/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

relief valve return, Incl. Ref. 16

1шт.

16

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Tee

1шт.

17

218-335

CAP,37 Degree, 1 1/16"-12

Hex

1шт.

18

H433288

HOSE ASSY.

43 inch (1092 mm) long, ground drive pump and motor loop

1шт.

19

218-5144

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

45 deg, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring, Incl. Ref. 20

1шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

21

H239061

CLAMP

ground drive loop hoses

1шт.

22

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

23

H426775

WASHER

flat, 5/16 inch, hardened

1шт.

24

H433557

TUBE

1шт.

25

232-4115

LOCK NUT,5/16"-18, GC

1шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

1шт.

SEE FIG. 6-13-B FOR PARTS BREAKDOWN ON H95SR55

1шт.
