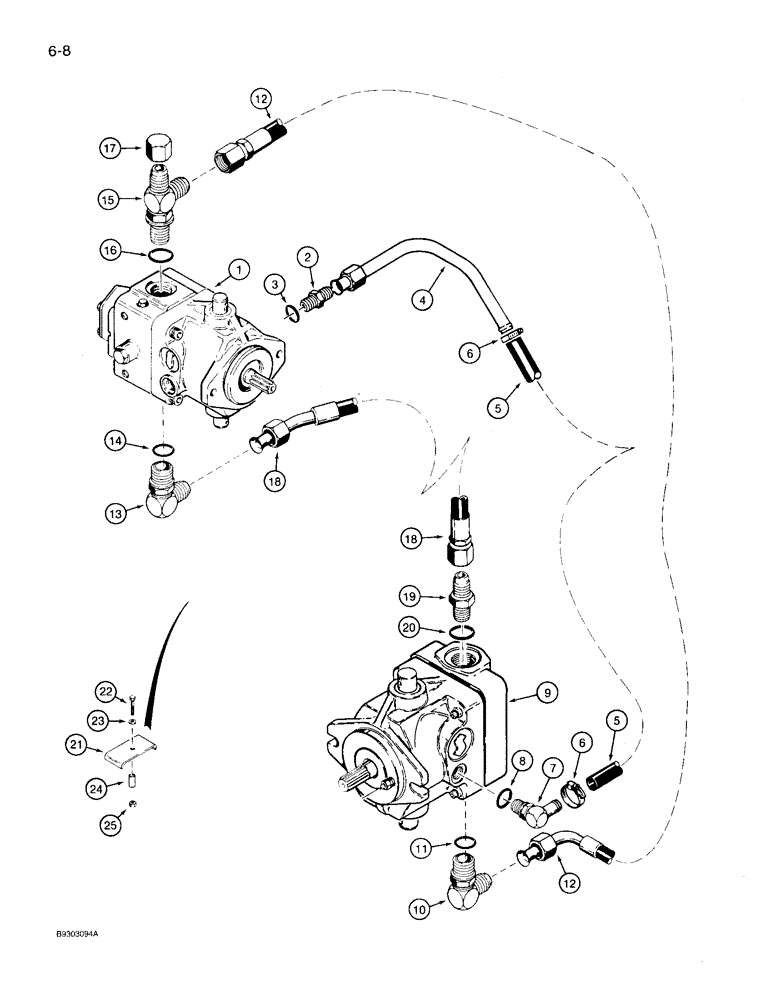

Запчасти Case 360 (6-08) - GROUND DRIVE HYDRAULIC CIRCUIT, PRIOR TO P.I.N. JAF0104134 (06) - POWER TRAIN

PRIOR TO P.I.N. JAF0104134

1шт.

1

REF

INSTRUCTION

PUMP ASSEMBLY - ground drive, for correct assembly and components, see Figs. 6-10 and 6-12 for models prior to P.I.N. JAF0104134

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Straight, O-Ring boss

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

H672334

TUBE,19 mm OD

ground drive pump to ground drive motor supply hose

1шт.

5

H317271

HOSE

3/4 (19) ID x 30 inch (762 mm) long, ground drive motor supply, cut from H379214 bulk hose, see below

1шт.

6

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

adj, 11/16 - 1-1/4 inch dia

2шт.

7

217-364

FITTING,90 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

ELBOW - 90 deg, 3/4 stem end x 3/4-16 inch adj O-ring boss, Incl. Ref. 8

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

REF

INSTRUCTION

MOTOR ASSEMBLY - ground drive, for correct assembly and components, see Fig. 6-14 or 6-15A for models prior to P.I.N. JAF0104134, see Fig. 6-16 for motor mounting hardware

1шт.

10

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adj. O-Ring, Incl. Ref. 11

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

H433287

HOSE

53 inch (1346 mm) long, ground drive pump and motor loop

1шт.

13

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adj. O-Ring, Incl. Ref. 14

1шт.

14

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

15

218-5585

TEE,37 Degree, 1 1/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

1-1/16-12 fl branch x fl x 1-5/16-12 inch adj O-ring, Incl. Ref. 16

1шт.

16

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

17

218-335

CAP,37 Degree, 1 1/16"-12

Hex

1шт.

18

H433288

HOSE ASSY.

43 inch (1092 mm) long, ground drive pump and motor loop

1шт.

19

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER, Incl. Ref. 20

1шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

21

H239061

CLAMP

ground drive loop hoses

1шт.

22

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

23

H426775

WASHER

flat, 5/16", hardened, plated

1шт.

24

H433557

TUBE

SPACER - clamp

1шт.

25

232-4115

LOCK NUT,5/16"-18, GC

1шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

1шт.
