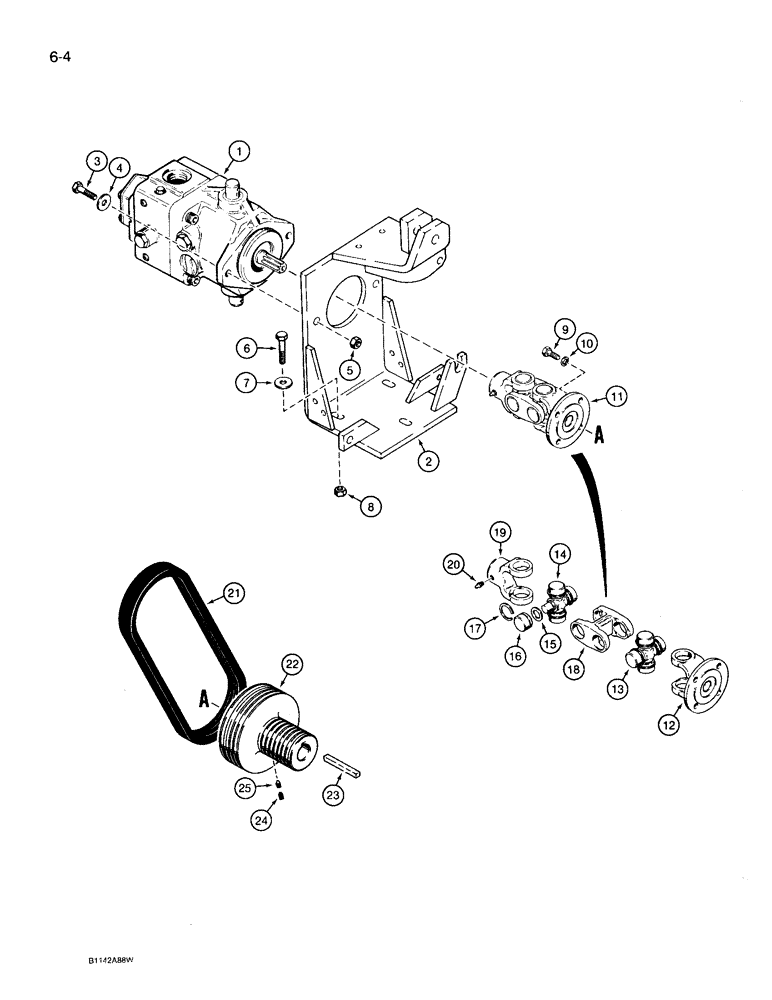

Запчасти Case 360 (6-04) - GROUND DRIVE PUMP MOUNTING - WISCONSIN GASOLINE ENGINE MODELS PRIOR TO P.I.N. 1256193 (06) - POWER TRAIN

1

REF

INSTRUCTION

PUMP ASSEMBLY - ground drive, for correct assembly and components, see Figs. 6-10 and 6-12

1шт.

2

H670851

BRACKET

ground drive pump mounting

1шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

4

H274894

WASHER

1/2 inch, special

2шт.

5

232-4118

NUT,1/2"-13, GC

2шт.

6

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

7

H274894

WASHER

1/2 inch, special

3шт.

8

232-4118

NUT,1/2"-13, GC

3шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

10

492-11031

LOCK WASHER,5/16"

4шт.

11

H582007

JOINT TURNING

U-JOINT ASSEMBLY - double, Incl. Ref. 12 - 20

1шт.

12

H245902

FORK

YOKE - flanged end

1шт.

13

H582437

BEARING ASSY

BEARING AND CROSS ASSEMBLY - U-joint, Incl. Ref. 14 - 17

2шт.

14

NSS

NOT SOLD SEPARAT

CROSS - U-joint

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - bearing

4шт.

16

NSS

NOT SOLD SEPARAT

BEARING - needles and cap

4шт.

17

H245910

RING, SNAP

RING SNAP retaining, bearing

4шт.

18

H244855

COUPLING

YOKE - center, double pivot, U-joint

1шт.

19

H244848

FORK

YOKE - splined end, U-joint

1шт.

20

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

Splined yoke

1шт.

21

H428987

V-BELT,355.00 mm L, 2 Ribs

3 Groove, Ground Drive Pump and Dual Pump Drive

1шт.

22

H433049

SHEAVE

engine

1шт.

23

H434542

KEY

square, 3/8 x 3-1/4 inch long

1шт.

24

178-853

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

set, hex socket headless, 3/8 NC x 3/8 inch, half dog point

1шт.

25

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

set, hex socket headless, 3/8 NC x 3/8 inch, cone point

1шт.
