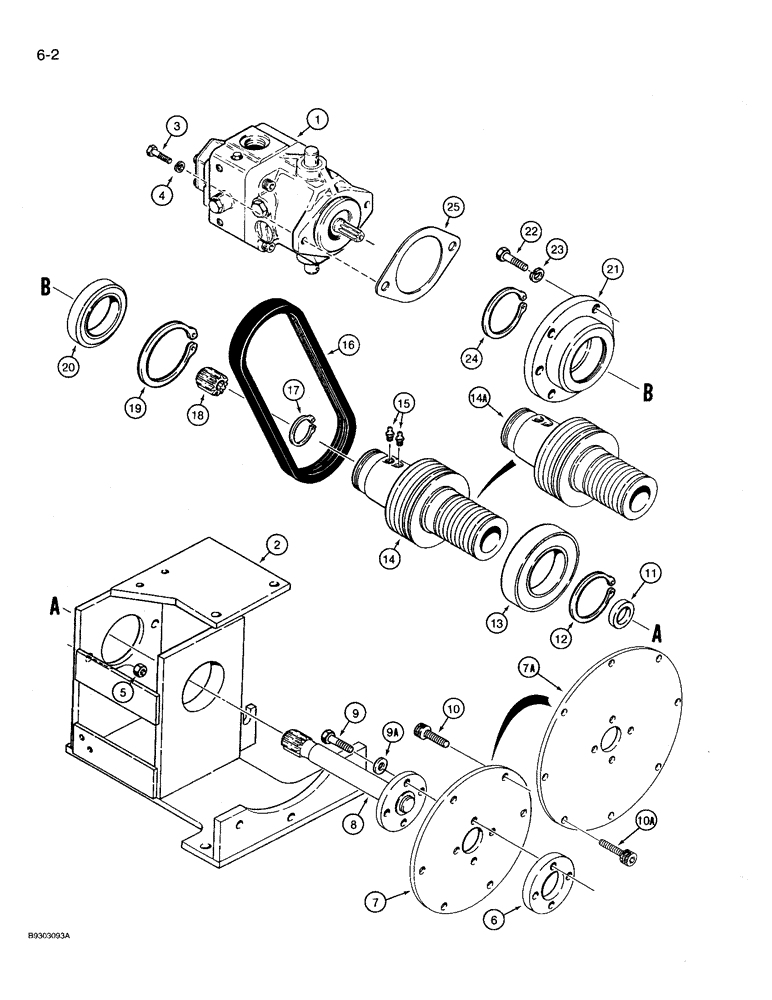

Запчасти Case 360 (6-02) - GROUND DRIVE PUMP MOUNTING - DEUTZ DIESEL ENGINE MODELS (06) - POWER TRAIN

1

REF

INSTRUCTION

PUMP ASSEMBLY - ground drive, for correct assembly and components, see Figs. 6-10 and 6-12

1шт.

2

H673144

BRACKET

mounting, engine and ground drive pump, left-hand side, prior to P.I.N. JAF0104257, see Fig. 2-14 for bracket mounting hardware

1шт.

2a

120809A1

SUPPORT

mounting, engine and ground drive pump, left-hand side, P.I.N. JAF0104257 and after, not shown, see Fig. 2-15A for illustration and for bracket mounting hardware

1шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

5

232-4118

NUT,1/2"-13, GC

2шт.

6

H435516

PLATE

backup, flex plate

1шт.

7

H435515

FLEXIBLE COUPLING

prior to P.I.N. JAF0104257

1шт.

7a

120569A1

PLATE

flex, P.I.N. JAF0104257 and after

1шт.

8

H673139

STEERING SHAFT

drive, ground drive pump

1шт.

9

428-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

hex, 3/8 NF x 1 inch, grade 8

4шт.

9a

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat, 13/32 x 13/16 x 3/32 inch, hardened

4шт.

10

862-8012

HEX SOC SCREW,M8 x 12mm, Cl 12.9

hex socket, 8 - 1.25 x 12 mm, class 12.9, prior to P.I.N. JAF0104257

6шт.

10a

864-10016

HEX SOC SCREW,M10 x 16mm, Cl 8.8

P.I.N. JAF0104257 and after

8шт.

11

D23962

SEAL

shaft

1шт.

12

A7888

RING, SNAP

RING SNAP bearing retaining

1шт.

13

H435512

BALL BEARING

sheave

1шт.

14

H435540

SHEAVE

pump drive, no longer available, order Ref. 14A sheave for service

1шт.

14a

H673558

SHEAVE

pump drive

1шт.

#14a: removable splined sleeve is H436404 - set screws shown on print to be 178-253 (invalid p/n) -size of screw .375-16 unc x .375

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

16

H428987

V-BELT,355.00 mm L, 2 Ribs

3 Groove, Ground Drive Pump and Dual Pump Drive

1шт.

17

R16289

SNAP RING,1.06", Int, #106

bushing 1.06", Int, #106

1шт.

18

H435520

BUSHING

splined, sheave

1шт.

19

H435511

SNAP RING,4.25", Int, #425

brg 4.25", Int, #425

1шт.

20

H435513

BALL BEARING

pump mounting flange

1шт.

21

H435544

FLANGE

ground drive pump mounting

1шт.

22

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

24

A31227

SNAP RING,#275, Ext

sheave #275, Ext

1шт.

25

144169C2

GASKET,0.79mm Thk

ground drive pump

1шт.

the Sundstrand M35 pump is installed on newer 360 trenchers. The part number is 239919A1. It has a square shaft for the mounting of the control arm

1шт.
