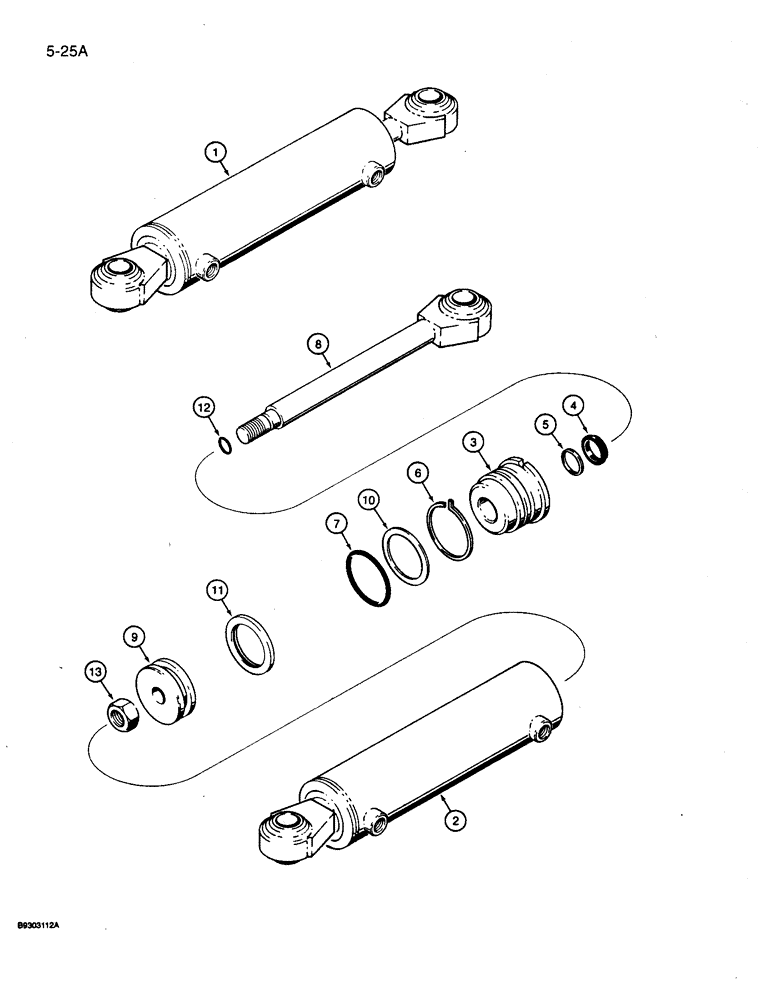

Запчасти Case 360 (5-25A) - STEERING CYLINDER - H674931 (05) - STEERING

1

H674931

CYLINDER BLOCK

C2 (51 mm) ID x 8 inch (203 mm) stroke, steering, Incl. Ref. 2 - 13

1шт.

2

H630160

CYLINDER

1шт.

3

H347765

GLAND

cylinder

1шт.

4

H755793

RETAINER

WIPER - rod; Part of Seal Kit, P/N H674942

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - gland, inner, piston rod, illustration may not be true representation of part; Part of Seal Kit, P/N H674942

1шт.

6

H207027

LOCK ASSY

RING - gland locking wire; Part of Seal Kit, P/N H674942

1шт.

7

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

Part of Seal Kit, P/N H674942

1шт.

8

H630178

ROD

piston, 1 inch (25 mm) diameter

1шт.

9

H347757

PISTON

cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup, gland, outer; Part of Seal Kit, P/N H674942

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - crown, piston, outer, illustration may not be true representation of part; Part of Seal Kit, P/N H674942

1шт.

12

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

Part of Seal Kit, P/N H674942

1шт.

13

230-46112

LOCK NUT,3/4"-16, GA

hex, self locking, 3/4 inch NF

1шт.

H674942

GASKET KIT

Incl. Refs. 4, 5, 6, 7, 10, 11 and 12

1шт.
