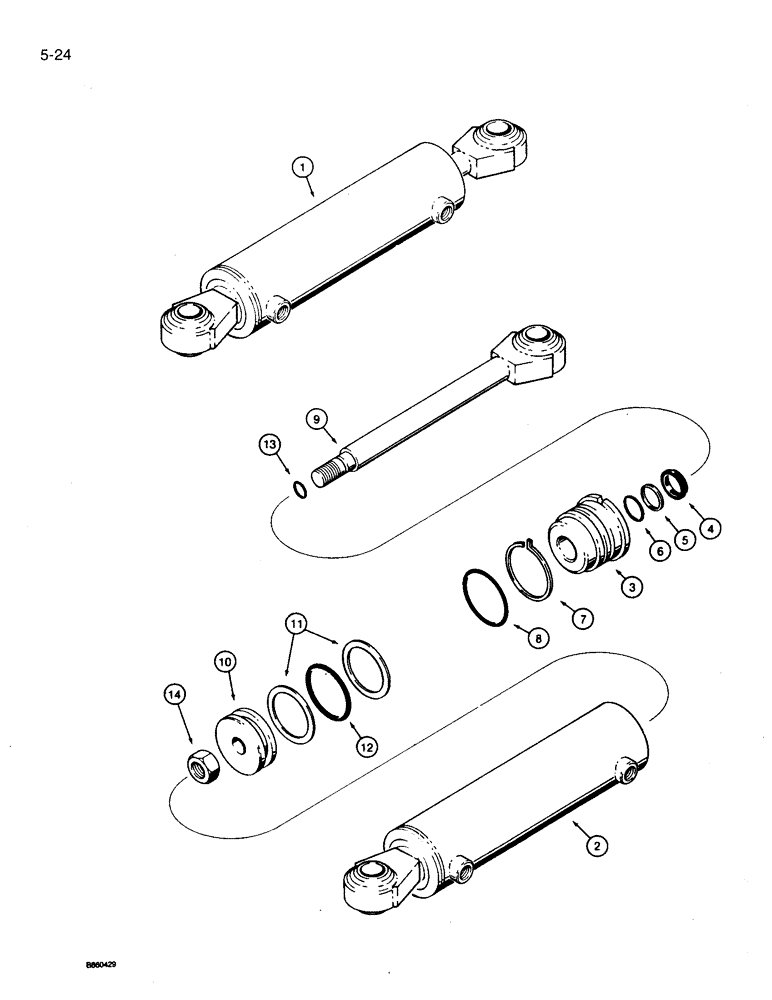

Запчасти Case 360 (5-24) - STEERING CYLINDER - H621367 (05) - STEERING

1

H621367

CYLINDER BLOCK

SPARE PART 2-3/8 (60) ID x 8 inch (203 mm) stroke, steering, no longer available, order H674931, Fig. 5-25A, Incl. Ref. 2 - 14

1шт.

2

H630160

CYLINDER

cylinder

1шт.

3

H347765

GLAND

cylinder

1шт.

4

H755793

RETAINER

WIPER - rod; Part of Seal Kit, P/N H630186

1шт.

5

A35899

RING

backup, small O-ring, gland, inner, piston rod; Part of Seal Kit, P/N H630186

1шт.

6

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

small, gland, inner, piston rod; Part of Seal Kit, P/N H630186

1шт.

7

H207027

LOCK ASSY

RING - gland locking wire; Part of Seal Kit, P/N H630186

1шт.

8

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

gland, outer; Part of Seal Kit, P/N H630186

1шт.

9

H630178

ROD

piston, 1 inch (25 mm) diameter

1шт.

10

H347757

PISTON

cylinder

1шт.

11

B17300

O-RING

backup, piston seal; Part of Seal Kit, P/N H630186

2шт.

12

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

piston, outer; Part of Seal Kit, P/N H630186

1шт.

13

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

piston rod; Part of Seal Kit, P/N H630186

1шт.

14

131-172

LOCK NUT,3/4"-16, GA

hex, self locking, 3/4 inch NF

1шт.

H630186

GASKET KIT

seal, Incl. Refs. 4, 5, 6, 7, 8, 11, 12 and 13

1шт.
