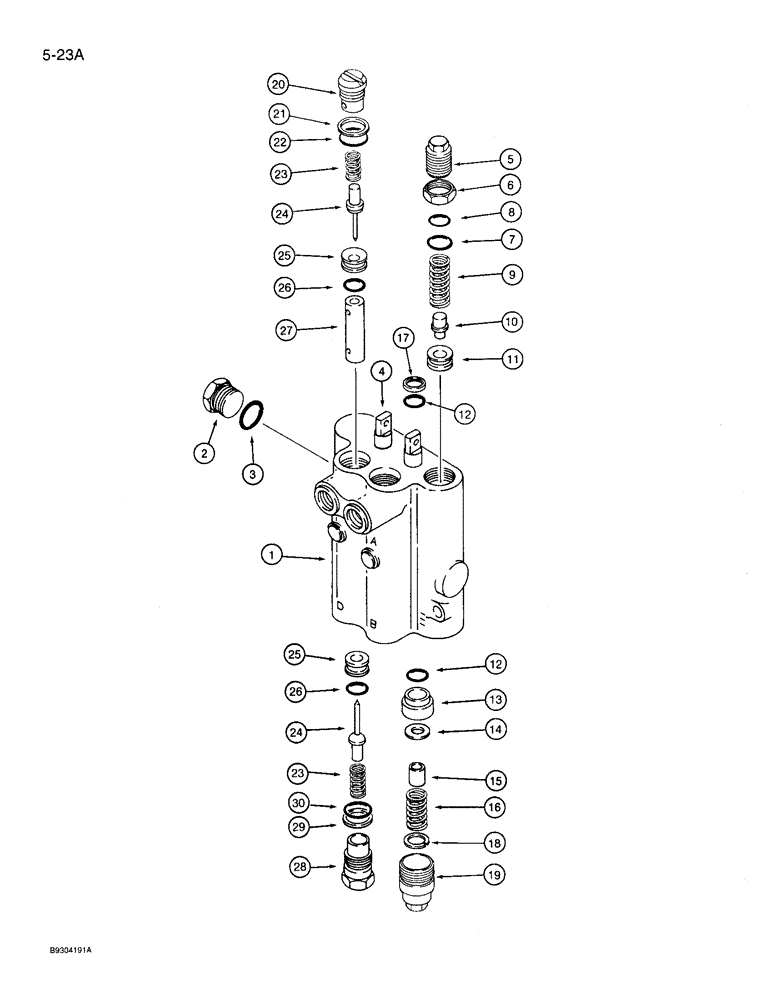

Запчасти Case 360 (5-23A) - STEERING AND ATTACHMENT LIFT CONTROL VALVE - H672732 (05) - STEERING
№
Артикул
Название
Примечание
Количество
H674732
SLIDE VALVE
VALVE ASSEMBLY - control, steering and attachment lift, Incl. Ref. 1 - 30
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - valve
1шт.
N9862
PLUG
special, valve body, Incl. Ref. 2 and 3
1шт.
2
NSS
NOT SOLD SEPARAT
PLUG - special, valve body
1шт.
3
238-5114
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
1шт.
4
NSS
NOT SOLD SEPARAT
SPOOL - steering control valve
2шт.
H673106
PLUG
relief valve, Incl. Ref. 5 - 7
1шт.
5
NSS
NOT SOLD SEPARAT
PLUG - relief valve
1шт.
6
218-1278
BHD LOCK NUT,Blkhd, 3/4"-16
small hex, lock, 3/4 inch NF
1шт.
7
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
8
F12267
WASHER
relief valve, .010 inch (0.3 mm) thick
1шт.
8
H746149
SHIM,.015" Thk
Relief valve (0.4 mm)
1шт.
8
H220798
SHIM,.035" Thk
relief valve, .035 inch (0.9 mm) thick
1шт.
9
H435565
SPRING
relief valve
1шт.
10
F37837
VALVE POPPET
relief valve
1шт.
11
NSS
NOT SOLD SEPARAT
SEAT - relief valve
1шт.
12
H438995
O-RING
spool, special
4шт.
13
674775R1
BUSHING
spool
2шт.
14
N9256
WASHER
special
2шт.
15
H438994
SPACER
spool
2шт.
16
674490R1
SPRING
spool centering
2шт.
17
H435703
SEAL
wiper, spool
2шт.
18
N9257
RING, SNAP
RING SNAP retaining
2шт.
19
N9253
CAP
valve body
2шт.
H636977
PLUG
seat retaining, Incl. Ref. 20 - 22
2шт.
20
NSS
NOT SOLD SEPARAT
PLUG - seat retaining
1шт.
21
G32626
RING
plug O-ring
1шт.
22
H755975
O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro
plug
1шт.
23
H364182
SPRING
poppet
4шт.
24
F88777
PLUNGER
valve
4шт.
H636951
SEAT
poppet, Incl. Ref. 25 and 26
4шт.
25
NSS
NOT SOLD SEPARAT
SEAT - poppet
1шт.
27
N14695
PLUNGER
valve
2шт.
H636969
FITTING
PLUG ASSEMBLY - lower port, Incl. Ref. 28 - 30
2шт.
28
NSS
NOT SOLD SEPARAT
PLUG - lower port
1шт.
29
G32626
RING
plug O-ring
1шт.
30
H755975
O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro
plug
1шт.
Выбрано товаров: 38
