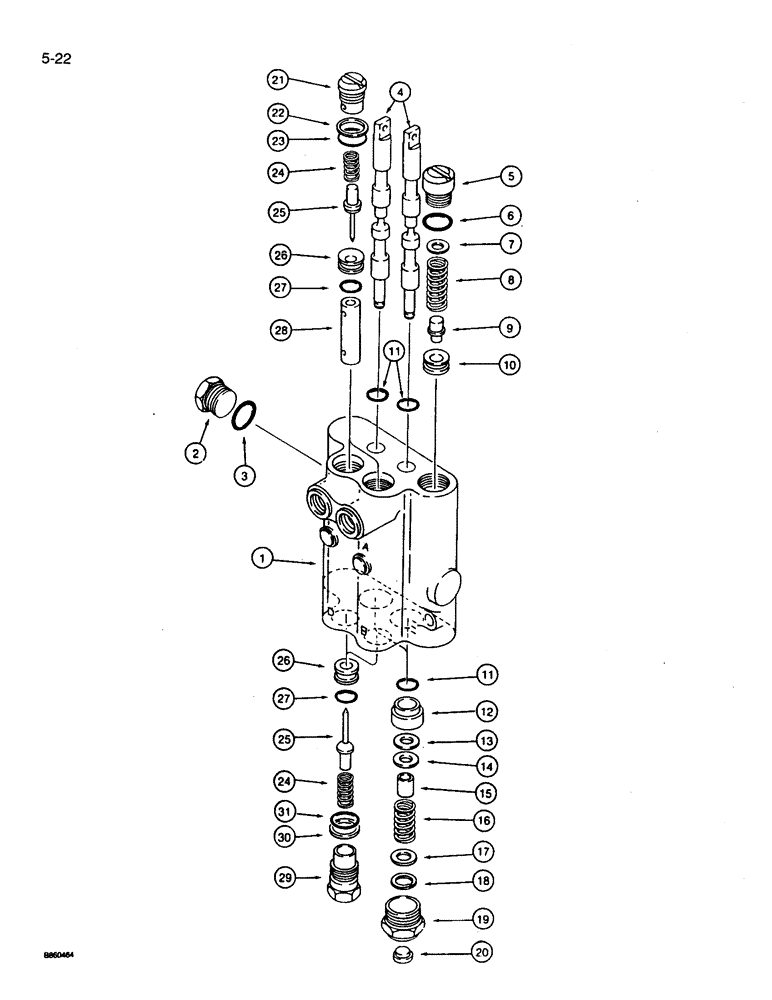

Запчасти Case 360 (5-22) - STEERING AND TRENCHER BOOM LIFT CONTROL VALVE (05) - STEERING
№
Артикул
Название
Примечание
Количество
H656454
VALVE
control, steering and trencher boom lift, two spool, Incl. Ref. 1 - 31
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - valve
1шт.
N9862
PLUG
special, valve body, not used on models with power beyond for backfill blade circuit, Incl. Ref. 2 and 3
1шт.
2
NSS
NOT SOLD SEPARAT
PLUG - special, valve body
1шт.
3
A7982
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
plug
1шт.
4
NSS
NOT SOLD SEPARAT
SPOOL - steering control valve
2шт.
F37892
PLUG
relief valve, Incl. Ref. 5 and 6
1шт.
5
NSS
NOT SOLD SEPARAT
PLUG - relief valve
1шт.
6
D48359
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
plug
1шт.
7
F12267
WASHER
SHIM - relief valve, .010 inch (0.3 mm) thick
1шт.
7
H746149
SHIM,.015" Thk
Relief valve (0.4 mm)
1шт.
7
H220798
SHIM,.035" Thk
relief valve, .035 inch (0.9 mm) thick
1шт.
8
L33609
SPRING
relief valve (color coded purple)
1шт.
9
F37837
VALVE POPPET
relief valve
1шт.
10
NSS
NOT SOLD SEPARAT
SEAT - relief valve
1шт.
11
A27410
O-RING,0.487" ID x 0.693" OD x 0.103"
spool
4шт.
12
F36304
BUSHING
valve body
2шт.
13
H253054
WASHER
special, upper, .020 inch (0.5 mm) thick, if used
2шт.
14
H253062
WASHER
special, middle, .046 inch (1.2 mm) thick
2шт.
15
F36239
SPACER
spool
2шт.
16
F36306
SPRING
spool centering
2шт.
17
F36908
WASHER
special, lower, .065 inch ( 1.7 mm) thick
2шт.
18
H758367
RING
retaining, washer
2шт.
19
H375667
CAP
valve body
2шт.
20
205-14
HOLE PLUG BUTTON,3/8"
button
2шт.
H636977
PLUG
seat retaining, Incl. Ref. 21 - 23
2шт.
21
NSS
NOT SOLD SEPARAT
PLUG - seat retaining
1шт.
22
G32626
RING
backup, plug O-ring
1шт.
23
H755975
O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro
plug
1шт.
24
H364182
SPRING
poppet
4шт.
25
F77048
VALVE POPPET
4шт.
H636951
SEAT
poppet, Incl. Ref. 26 and 27
4шт.
26
NSS
NOT SOLD SEPARAT
SEAT - poppet
1шт.
27
A18414
O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro
seat
1шт.
28
F8229
PLUNGER
valve
2шт.
H636969
FITTING
lower port, Incl. Ref. 29 - 31
2шт.
29
NSS
NOT SOLD SEPARAT
PLUG - lower port
1шт.
30
G32626
RING
backup, plug O-ring
1шт.
31
H755975
O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro
plug
1шт.
Выбрано товаров: 39
