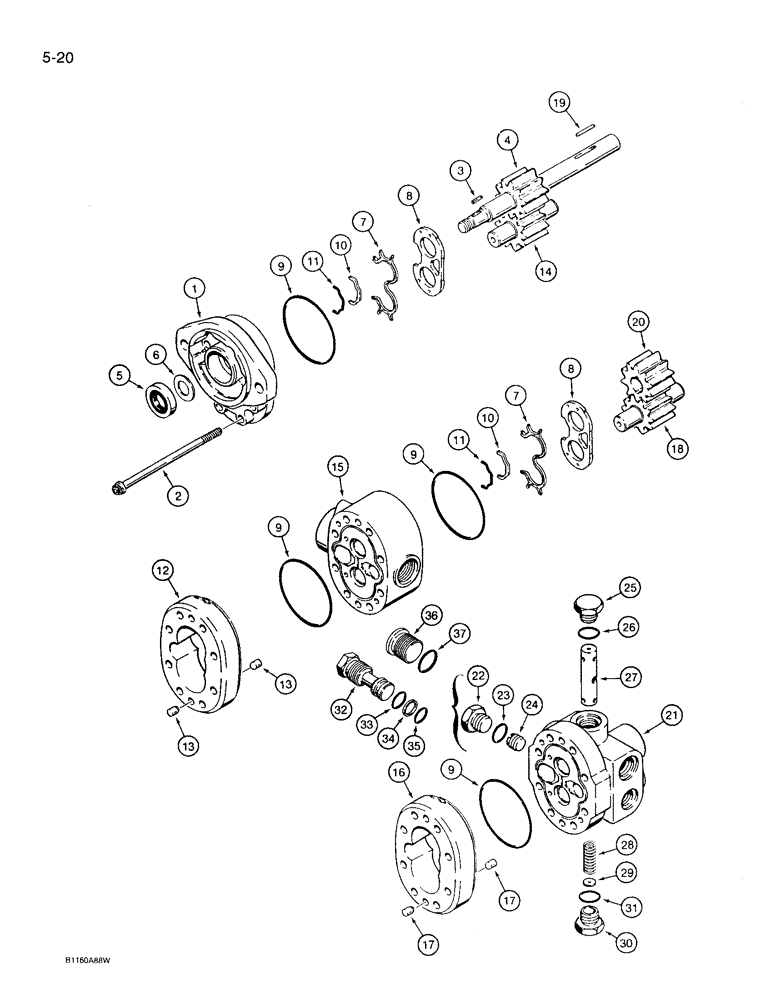

Запчасти Case 360 (5-20) - DUAL HYDRAULIC PUMP (05) - STEERING

H664938

O-RING

dual, steering and equipment hydraulics, Incl. Ref. 1 - 37

1шт.

1

H435648

COVER

pump, shaft end

1шт.

2

166-163

12 PT SCREW,Flg, 5/16" - 18 x 5", Gr 8

Ferry head, 5/16 NC x 5 inch, grade 8

8шт.

3

H173963

BUCKET TOOTH KEY

lock, drive gear shaft

1шт.

4

N13949

GEAR

drive, pump

1шт.

H435655

GASKET KIT

seal, also includes (2) H755975 O-rings, (1) 369908R1 O-ring, (1) N7319 ring, (1) A64436 O-ring, and (1) 237-6016 O-ring (Ref. 26, 31, 33, 34, 35, and 37), Incl. Ref. 5 - 11

1шт.

5

H83733

SEAL

shaft

1шт.

6

N13135

WASHER

special, shaft seal

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - backup, wear plate

2шт.

8

NSS

NOT SOLD SEPARAT

PLATE - wear, housing

2шт.

9

H758599

O-RING,2.989" ID x 3.129" OD

large, pump body

4шт.

10

NSS

NOT SOLD SEPARAT

SEAL - bearing

2шт.

11

NSS

NOT SOLD SEPARAT

SEAL - molded

2шт.

N13947

BODY

gear, shaft end, Incl. Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - gear

1шт.

13

71120

VALVE

PIN - dowel, shaft end gear housing

4шт.

14

N13948

GEAR

driven, shaft end

1шт.

15

H435649

PLATE

bushing

1шт.

N13657

BODY

gear, port end, Incl. Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - gear

1шт.

17

71120

VALVE

PIN - dowel, port end gear housing

4шт.

18

N13658

SPROCKET ASSY.

GEAR - driven, port end

1шт.

19

N13654

KEY

drive gear lock, port end

1шт.

20

N13655

GEAR

drive, port end

1шт.

N13946

PLATE

KIT - repair, cover, port end, Includes: Ref. 21 - 36

1шт.

21

NSS

NOT SOLD SEPARAT

COVER - port end

1шт.

N9862

PLUG

outer, port end cover, used with Ref. 24 plug in some pump assemblies, if used, Incl. Ref. 22 and 23

1шт.

22

NSS

NOT SOLD SEPARAT

PLUG - outer

1шт.

23

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

outer plug

1шт.

24

NSS

NOT SOLD SEPARAT

PLUG - inner, port end cover, used with N9862 plug in some pump assemblies, if used

1шт.

N13951

PLUG

spool, priority flow, port end cover, Incl. Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

PLUG - spool

1шт.

26

H755975

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

spool plug

1шт.

27

NSS

NOT SOLD SEPARAT

SPOOL - priority flow

1шт.

28

N13952

SPRING

retention, priority flow

1шт.

29

L33506

DISC

used as a shim

1шт.

203944C1

PLUG

spring seat, Incl. Ref. 32 - 35

1шт.

30

NSS

NOT SOLD SEPARAT

PLUG - spring retention

1шт.

31

H755975

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

plug

1шт.

N14624

PLUG

port end cover, lower, used with item 36 plug in some pump assemblies, if used

1шт.

32

NSS

NOT SOLD SEPARAT

PLUG - port end cover

1шт.

33

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

large

1шт.

34

N7319

RING

backup, small O-ring

1шт.

35

A64436

O-RING,0.549" ID x 0.755" OD

small

1шт.

36

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Port end cover, upper, used with item 32 plug in some pump assemblies, if used, Incl. Ref 37

1шт.

37

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Plug

1шт.
