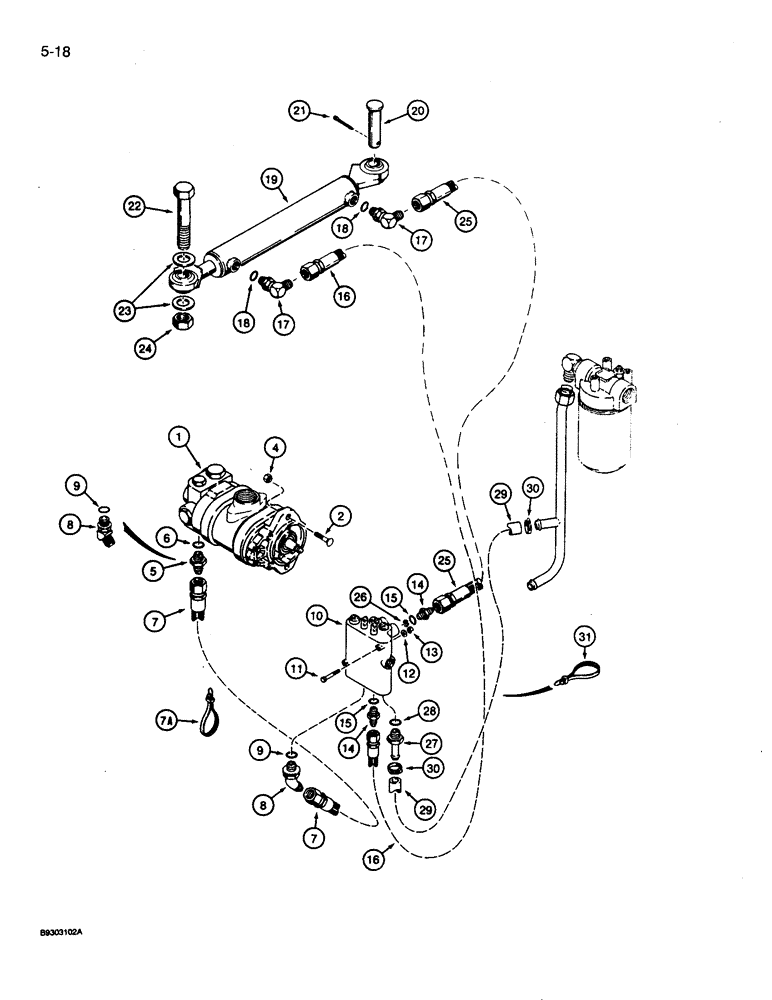

Запчасти Case 360 (5-18) - STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

H664938

O-RING

dual, steering and equipment hydraulic, see parts list Fig. 5-20

1шт.

Power beyond fittings are on Fig. 8-18.

1шт.

2

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

2шт.

4

232-4116

NUT,3/8"-16, GC

2шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

strRRefef. 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

H433293

HOSE

30 inch (762 mm) long, dual pump to steering control valve inlet

1шт.

7a

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

8

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adj. O-ring boss, Incl. Ref 9

1-2шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

H656454

VALVE

control, steering and trencher boom, parts list Fig. 5-22, no longer available, order H674732

1шт.

10

H674732

SLIDE VALVE

control, steering and trencher boom, parts list Fig. 5-23A

1шт.

11

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

12

H426767

WASHER

flat, 1/4 inch, hardened

2шт.

13

280129

NUT,1/4"-20

hex lock, 1/4 inch NC

2шт.

14

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 15

2шт.

16

H362418

HOSE

48 inch (1219 mm) long, steering control valve to rod end of steering cylinder

1шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 18

2шт.

19

H621367

CYLINDER BLOCK

SPARE PART steering, see parts list Fig. 5-24, no longer available, order H674931

1шт.

19

H674931

CYLINDER BLOCK

steering, see parts list Fig. 5-25A

1шт.

20

H70623

AXLE PIN

clevis, special

1шт.

21

432-1628

COTTER PIN,1/4" x 1 3/4"

1шт.

22

413-1680

BOLT,Hex, 1" - 8 x 5", Gr 5

hex, 1 NC x 5 inch

1шт.

23

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, 1 inch, hardened

2шт.

24

232-41116

LOCK NUT,1"-8, GC

1шт.

25

H434536

HOSE ASSY.

39 inch (991 mm) long, closed end of steering cylinder to steering control valve

1шт.

26

H233981

ORIFICE

upper right-hand port

1шт.

27

217-396

FITTING,3/4" Hose Barb x 3/4" - 16 Male ORB

straight, 3/4 stem end x 3/4-16 inch adj. O-ring, Includes: Ref. 28

1шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

29

H317271

HOSE

3/4 (19) ID x 30 inch (762 mm) long, prior to P.I.N. JAF0104257, may be cut from bulk hose, see Parts Substitution List for bulk hose options, steering control valve outlet port to return filter

1шт.

29

A160209

HYDRAULIC HOSE,19 mm ID x 838.20 mm, SAE 30R2 TYPE 1 SAE J30

P.I.N. JAF0104257 and After, May be Cut From Bulk Hose, See Parts Substitution List for Bulk Hose Options, Steering Control Valve Outlet Port to Return Filter

1шт.

30

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

adj., 11/16 - 1-1/4 inch dia.

2шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
