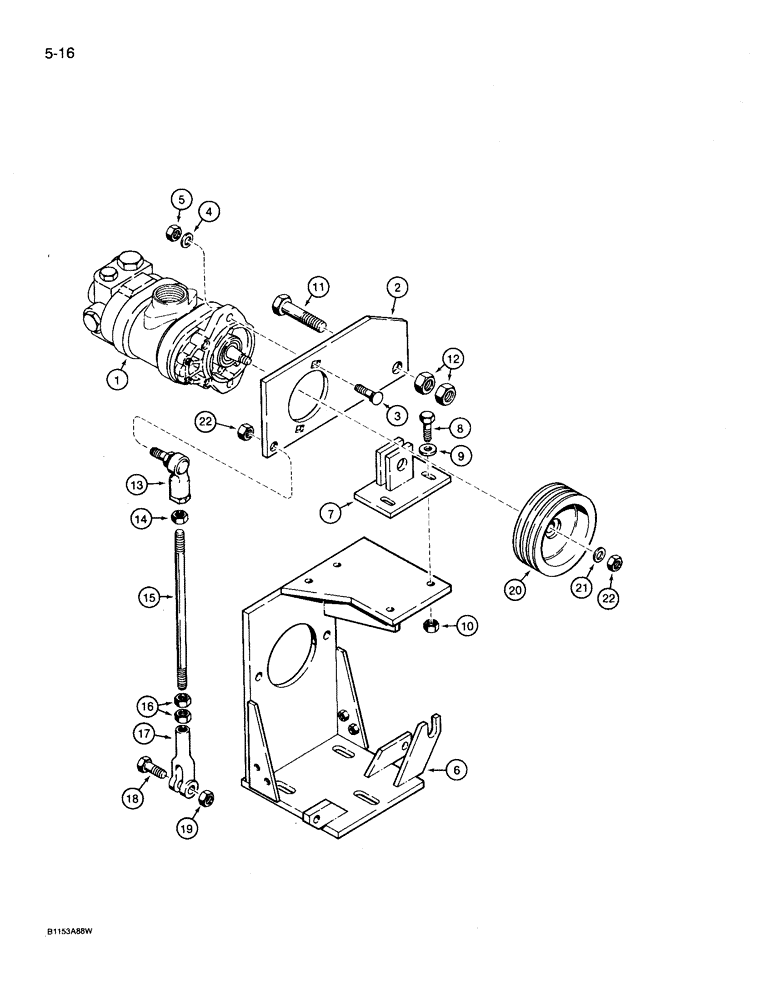

Запчасти Case 360 (5-16) - DUAL PUMP MOUNTING - WISCONSIN GASOLINE ENGINE MODELS, P.I.N. 1256193 AND AFTER (05) - STEERING

P.I.N. 1256193 AND AFTER

1шт.

1

H664938

O-RING

dual, steering and equipment hydraulic, see parts list Fig. 5-21

1шт.

2

H435718

LARGE PLATE

PLATE, LARGE dual pump mounting

1шт.

3

T61773

BOLT

carriage, 7/16 NC x 1-1/2 inch, special

2шт.

4

H426783

WASHER

flat, 7/16 inch, hardened

2шт.

5

232-4117

LOCK NUT,7/16"-14, GC

2шт.

6

H672831

BRACKET

ground drive pump mounting

1шт.

7

H672832

BRACKET

pivot, dual pump mounting bracket

1шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

9

H274894

WASHER

flat, 1/2 inch, special

2шт.

10

232-4118

NUT,1/2"-13, GC

2шт.

11

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

1шт.

12

232-41112

NUT,3/4"-10, GC

2шт.

13

L44143

BALL JOINT

ball, 1/2 inch NF

1шт.

14

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

15

H434888

THREADED ROD

drive belt adjusting

1шт.

16

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

17

H310706

CLEVIS COUPLING

drive belt adjusting rod

1шт.

18

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

19

232-4118

NUT,1/2"-13, GC

2шт.

20

H428995

SHEAVE

dual pump

1шт.

21

H274894

WASHER

flat, 1/2 inch, special

1шт.

22

131-168

LOCK NUT,1/2"-20, GA

hex, self-locking, 1/2 inch NF

2шт.
