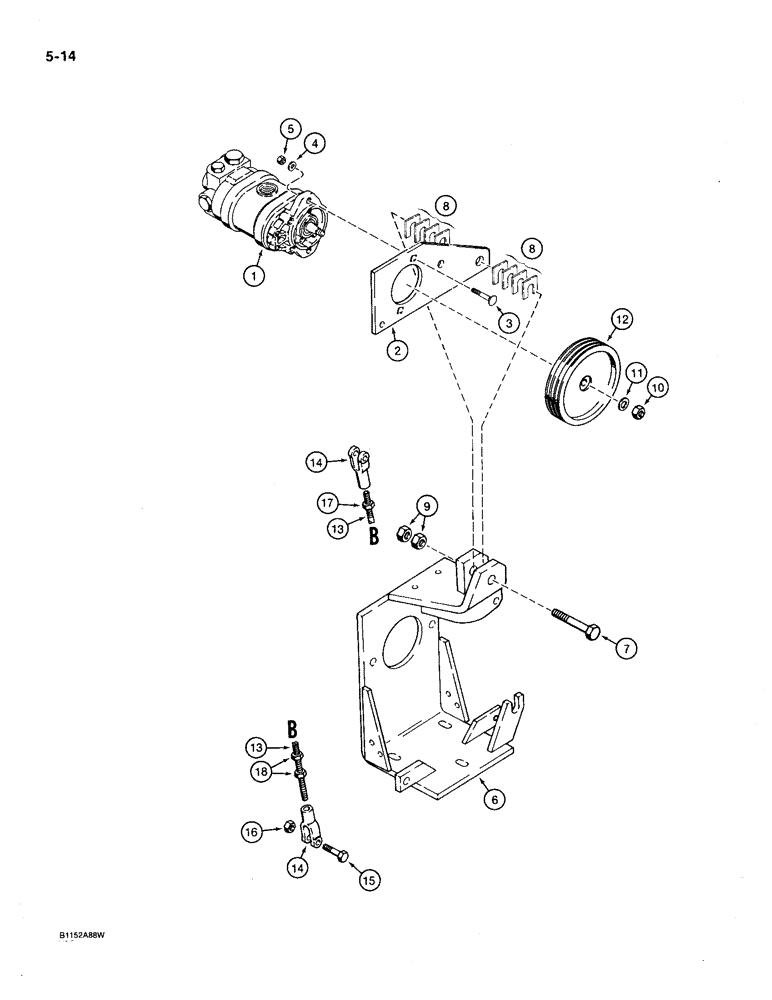

Запчасти Case 360 (5-14) - DUAL PUMP MOUNTING - WISCONSIN GASOLINE ENGINE MODELS, PRIOR TO P.I.N. 1256193 (05) - STEERING

PRIOR TO P.I.N. 1256193

1шт.

1

H664938

O-RING

dual, steering and equipment hydraulic, see parts list Fig. 5-20

1шт.

2

H435718

LARGE PLATE

PLATE, LARGE dual pump mounting (replaces H434532)

1шт.

3

T61773

BOLT

carriage, 7/16 NC x 1-1/2 inch

2шт.

4

H426783

WASHER

flat, 7/16 inch hardened

2шт.

5

232-4117

LOCK NUT,7/16"-14, GC

2шт.

6

H670851

BRACKET

ground drive pump mounting, see Fig. 6-4 for mounting hardware

1шт.

7

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

8

H434644

SPACER

dual pump mounting bracket, replaces 3/4 inch flat washers

1шт.

9

131-1152

LOCK NUT,3/4"-10, GC

2шт.

10

131-168

LOCK NUT,1/2"-20, GA

hex, self-locking, 1/2 inch NF

1шт.

11

H274894

WASHER

flat, 1/2 inch, special

1шт.

12

H428995

SHEAVE

dual pump

1шт.

13

H434185

ROD

drive belt adjusting

1шт.

14

H310706

CLEVIS COUPLING

drive belt adjusting rod

2шт.

15

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

16

232-4118

NUT,1/2"-13, GC

2шт.

17

131-168

LOCK NUT,1/2"-20, GA

hex, self-locking, 1/2 inch NF

1шт.

18

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.
