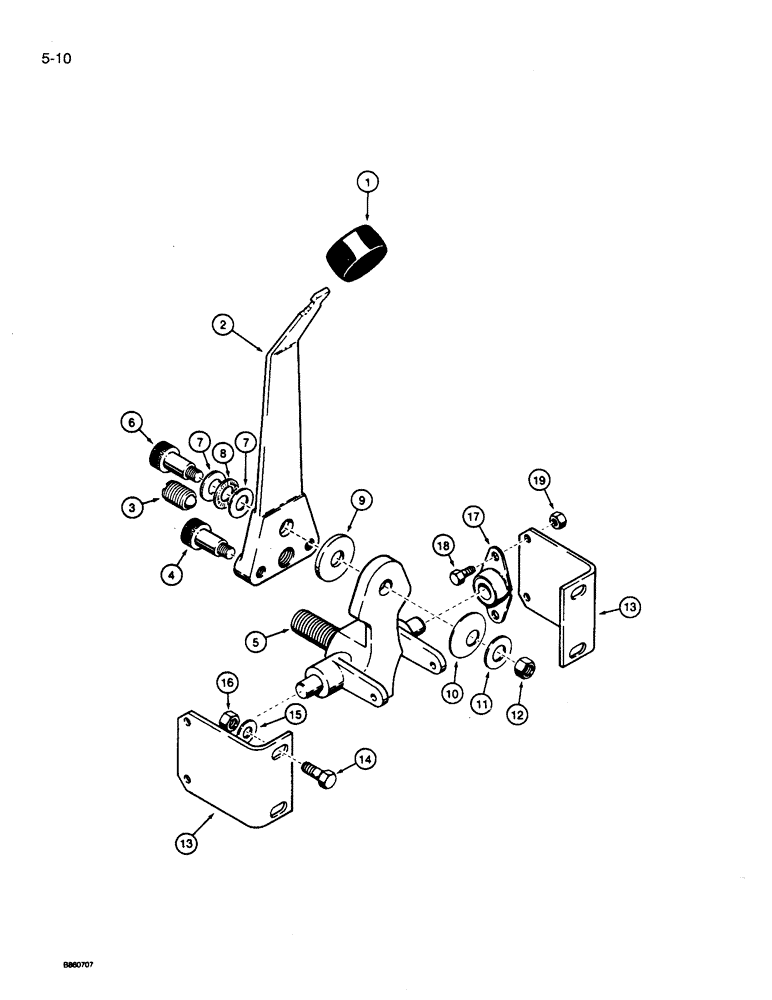

Запчасти Case 360 (5-10) - DIRECTIONAL AND GROUND DRIVE CONTROLS - CREEP CONTROL (05) - STEERING

1

A177435

BALL KNOB

creep control

1шт.

2

H672311

HANDLE

creep control

1шт.

3

H404731

GUIDE

detent, special

1шт.

4

H404822

BOLT

special

2шт.

5

H433501

PIVOT

drive control

1шт.

6

H404822

BOLT

special

1шт.

7

H405035

BEARING WASHER

thrust, bearing

2шт.

8

H405043

BEARING WASHER,12.75mm ID x 23.55mm OD x 1.98mm Thk

thrust, disc

1шт.

9

H429894

WASHER

friction

1шт.

10

D33544

WASHER

Belleville

1шт.

11

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat, 3/8 inch, hardened

1шт.

12

232-4116

NUT,3/8"-16, GC

1шт.

13

H429845

ANGLE

creep control mounting

2шт.

14

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

15

H426775

WASHER

flat, 5/16 inch, hardened

4шт.

16

232-4115

LOCK NUT,5/16"-18, GC

4шт.

17

H755785

FLANGED BEARING,15.88mm ID

creep control pivot

2шт.

18

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

19

232-4114

LOCK NUT,1/4"-20, GC

4шт.
