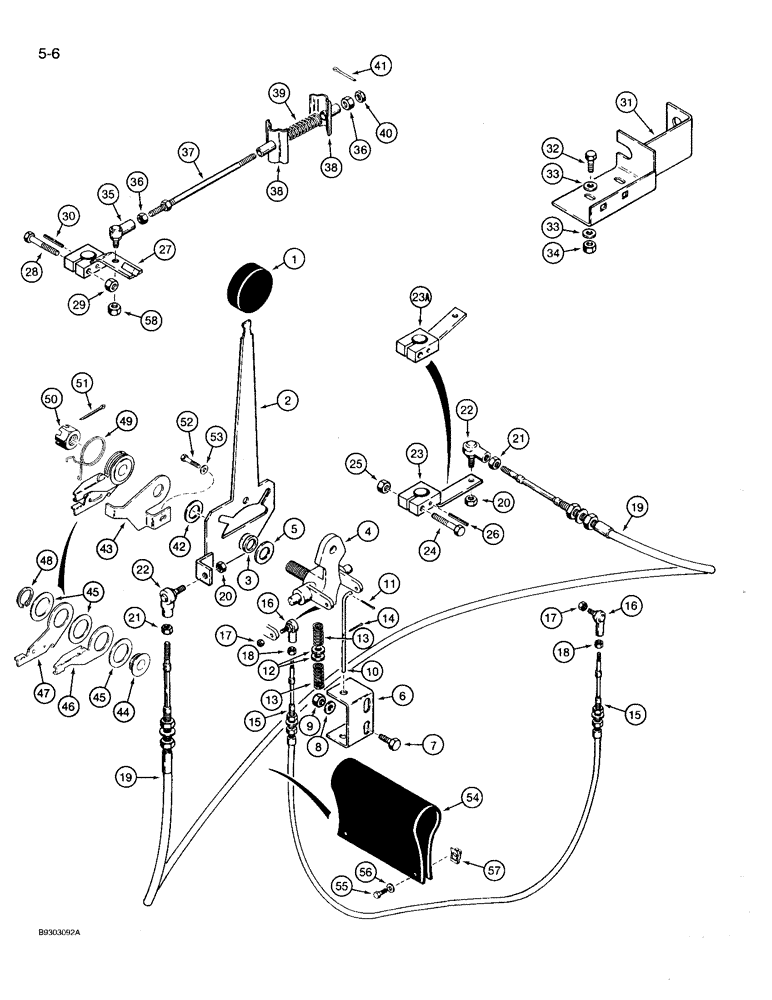

Запчасти Case 360 (5-06) - DIRECTIONAL AND GROUND DRIVE CONTROLS - STEERING, FORWARD, REVERSE P.I.N. JAF0022340 AND AFTER (05) - STEERING

P.I.N. JAF0022340 AND AFTER

1шт.

1

A177435

BALL KNOB

directional control handle

1шт.

2

H672329

HANDLE

directional control, Includes: Ref. 3

1шт.

3

H433184

BEARING

directional control handle

1шт.

4

H435855

PIVOT

drive control, mounting parts on Fig. 5-10

1шт.

5

H433170

WASHER

flat, nylon, special

1шт.

6

H433356

CHANNEL

steering spring retention

1шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

8

H426775

WASHER

flat, 5/16 inch, hardened

2шт.

9

232-4115

LOCK NUT,5/16"-18, GC

2шт.

10

H433355

ROD

centering

1шт.

11

432-412

COTTER PIN,1/16" x 3/4"

1шт.

12

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

13

H196717

VALVE SPRING

steering control

2шт.

14

132-320

COTTER PIN,3/32" x 3/4"

1шт.

15

H433340

CABLE

steering control

1шт.

16

H358374

PIVOT,1/4" - 28 x 1-1/3"

ball, 1/4 inch NF, steering control cable

2шт.

17

131-1168

LOCK NUT,1/4"-28, GA

2шт.

18

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

19

H433339

CABLE

ground drive control

1шт.

Ref 19, H433339 is 92" long. Later production machines changed to 233187a1 cable, which is 129" long. Changed per ECN H95A311. 1/3/00 BW CAM

1шт.

20

131-1169

LOCK NUT,5/16"-24, GA

2шт.

21

425-155

JAM NUT,Jam, 5/16"-24, G5

Hex

2шт.

22

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

ball, 5/16 inch NF, ground drive control cable

2шт.

23

H672708

LEVER

control, attaches to ground drive pump, prior to P.I.N. JAF0104257

1шт.

23a

120996A1

LEVER

control, attaches to ground drive pump, P.I.N. JAF0104257 and after

1шт.

24

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

25

232-4115

LOCK NUT,5/16"-18, GC

1шт.

26

138-142

LOCK PIN,1/4" x 2", Slotted

1шт.

27

H673675

LEVER

actuator, attaches to ground drive pump

1шт.

28

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

29

232-4115

LOCK NUT,5/16"-18, GC

1шт.

30

138-142

LOCK PIN,1/4" x 2", Slotted

1шт.

31

H673177

BRACKET

neutral centering

1шт.

32

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

33

H426775

WASHER

flat, 5/16 inch, hardened

4шт.

34

232-4115

LOCK NUT,5/16"-18, GC

2шт.

35

S236680

BALL JOINT

ball, 3/8 inch NF, rod end

1шт.

36

425-116

NUT,3/8" - 24, Gr 5

Hex

2шт.

37

H668186

STEM

neutral centering

1шт.

38

H668194

CHANNEL

centering spring

2шт.

39

K625098

SPRING

centering

1шт.

40

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

41

432-816

COTTER PIN,1/8" x 1"

1шт.

42

H433170

WASHER

flat, nylon, special

1шт.

43

H436230

LARGE PLATE

PLATE, LARGE centering

1шт.

H673263

MOUNTING PARTS

neutral start switch, Incl. Ref. 44 - 48

1шт.

44

H435800

HUB

bracket

1шт.

45

H257915

SHIM,0.813mm Thk

Bracket

3шт.

46

H436226

CONTACT PLATE

PLATE, LARGE switch contact

1шт.

47

H436227

PLATE

switch mounting

1шт.

48

F62020

SNAP RING,#125, Ext

#125, Ext

1шт.

49

H436231

SPRING

mount assembly

1шт.

50

425-1212

SLOTTED NUT,3/4"-10, G5

hex, slotted, 3/4 inch NC

1шт.

51

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

52

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

53

H426775

WASHER

flat, 5/16 inch bolt size, hardened, plated

1шт.

54

H374678

FLAP

steering and ground drive control cables, rubber, at articulation joint

1шт.

55

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

56

H426775

WASHER

flat, 5/16 inch, hardened

2шт.

57

H346650

NUT

U-type, 5/16 inch NC, special

2шт.

58

131-1326

JAM NUT,Jam, 3/8"-24

hex, jam, self-locking, 3/8 inch NF

1шт.
