(5-04) - DIRECTIONAL AND GROUND DRIVE CONTROLS - STEERING, FORWARD, REVERSE PRIOR TO P.I.N. JAF0022340

Запчасти Case 360 (5-04) - DIRECTIONAL AND GROUND DRIVE CONTROLS - STEERING, FORWARD, REVERSE PRIOR TO P.I.N. JAF0022340 (05) - STEERING

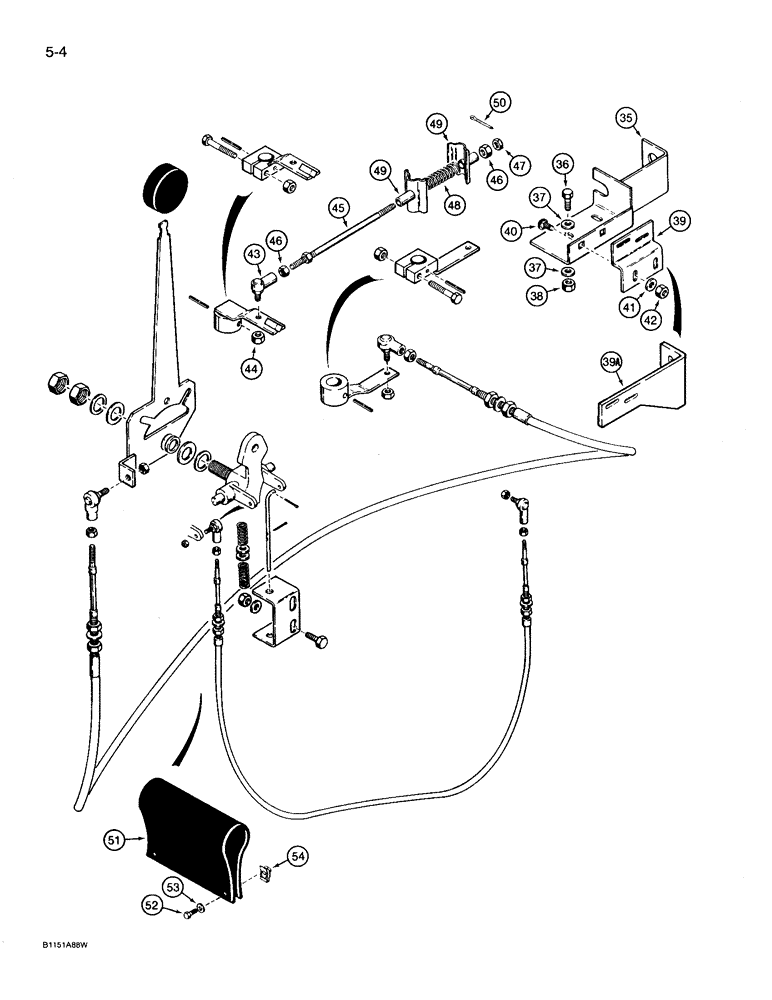

Схема запчастей Case 360 - (5-04) - DIRECTIONAL AND GROUND DRIVE CONTROLS - STEERING, FORWARD, REVERSE PRIOR TO P.I.N. JAF0022340 (05) - STEERING
35
49
37
46
49
47
52
39
41
45
51
46
54
37
43
39a
42
48
44
40
38
36
53
50
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PRIOR TO P.I.N. JAF0022340

1шт.

35

H673177

BRACKET

neutral centering

1шт.

36

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

37

H426775

WASHER

flat, 5/16 inch, hardened

4шт.

38

232-4115

LOCK NUT,5/16"-18, GC

2шт.

39

H434488

BRACKET

neutral start switch mounting, used on models with Wisconsin gasoline engine, if used

1шт.

39a

H435619

ANGLE

neutral start switch mounting, used on models with Deutz diesel engine, if used

1шт.

40

411-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 2

carriage, 3/8 NC x 1 inch, grade 2

2шт.

41

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat, 3/8 inch, hardened

2шт.

42

232-4116

NUT,3/8"-16, GC

2шт.

43

S236680

BALL JOINT

3/8 inch NF, rod end

1шт.

44

131-177

LOCK NUT,3/8"-24, GA

hex, self-locking, 3/8 inch NF

1шт.

45

H668186

STEM

neutral centering

1шт.

46

425-116

NUT,3/8" - 24, Gr 5

Hex

2шт.

47

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

48

K625098

SPRING

centering

1шт.

49

H668194

CHANNEL

centering spring

2шт.

50

132-310

COTTER PIN,1/8" x 1"

1шт.

51

H374678

FLAP

steering and ground drive control cables, rubber, at articulation joint

1шт.

52

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

53

H426775

WASHER

flat, 5/16 inch, hardened

2шт.

54

H346650

NUT

U-type, 5/16 inch NC, special

2шт.
