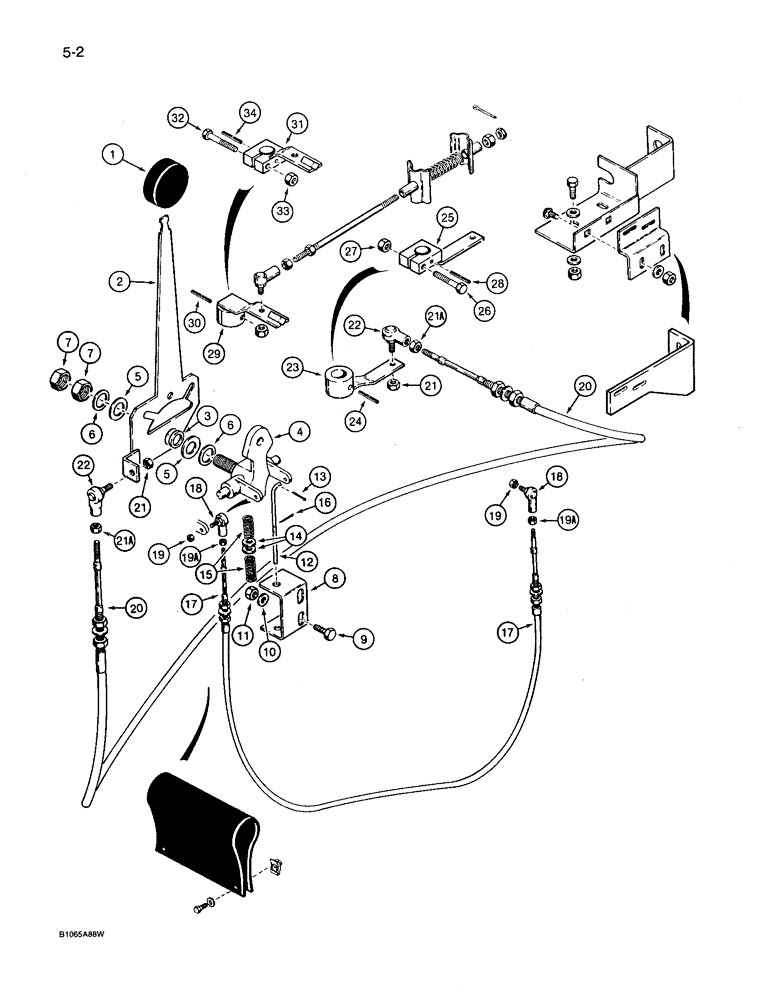

Запчасти Case 360 (5-02) - DIRECTIONAL AND GROUND DRIVE CONTROLS - STEERING, FORWARD, REVERSE PRIOR TO P.I.N. JAF0022340 (05) - STEERING

PRIOR TO P.I.N. JAF0022340

1шт.

1

A177435

BALL KNOB

directional control handle

1шт.

2

H672329

HANDLE

directional control

1шт.

3

H433184

BEARING

directional control handle

1шт.

4

H433501

PIVOT

drive control, mounting parts on Fig. 5-10

1шт.

5

H433170

WASHER

flat, nylon, special

2шт.

6

495-11081

WASHER,3/4", SAE

2шт.

7

425-1412

JAM NUT,Jam, 3/4"-10, G5

hex, jam, 3/4 inch NC

2шт.

8

H433356

CHANNEL

steering spring retention

1шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

10

H426775

WASHER

flat, 5/16 inch, hardened

2шт.

11

232-4115

LOCK NUT,5/16"-18, GC

2шт.

12

H433355

ROD

centering

1шт.

13

432-412

COTTER PIN,1/16" x 3/4"

1шт.

14

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

15

H196717

VALVE SPRING

steering control

2шт.

16

432-612

COTTER PIN,3/32" x 3/4"

1шт.

17

H433340

CABLE

steering control

1шт.

18

H358374

PIVOT,1/4" - 28 x 1-1/3"

ball, 1/4 inch NF, steering control cable

2шт.

19

131-1168

LOCK NUT,1/4"-28, GA

2шт.

19a

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

20

H433339

CABLE

ground drive control

1шт.

21

131-1169

LOCK NUT,5/16"-24, GA

2шт.

21a

425-155

JAM NUT,Jam, 5/16"-24, G5

Hex

2шт.

22

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

ball, 5/16 inch NF, ground drive control cable

2шт.

23

H672495

LEVER

control, attaches to ground drive pump, if used

1шт.

24

138-142

LOCK PIN,1/4" x 2", Slotted

1шт.

25

H672708

LEVER

control, attaches to ground drive pump, if used

1шт.

Ref. 25 and 31 must be used when H673356 ground drive pump is installed. Shafts on H673356 are too short for Ref. 23 and 29 to install properly.

1шт.

Ref. 31 and 25 are required with pump ass'y.

1шт.

26

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Used with Ref. 25 control lever, if used

1шт.

27

131-1215

LOCK NUT,5/16"-18, GC

Used with item 25 control lever, if used

1шт.

28

138-142

LOCK PIN,1/4" x 2", Slotted

1шт.

29

H672494

LEVER

actuator, attaches to ground drive pump, no longer available, order (1) H672702 lever, (1) 413-536 bolt, and (1) 131-1215 nut, Ref. 31, 32 and 33

1шт.

30

138-142

LOCK PIN,1/4" x 2", Slotted

1шт.

31

H672702

LEVER

actuator, attaches to ground drive pump, replaces H672494

1шт.

Ref. 25 and 31 must be used when H673356 ground drive pump is installed. Shafts on H673356 are too short for Ref. 23 and 29 to install properly.

1шт.

Ref. 31 and 25 are required with pump ass'y.

1шт.

32

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Used with Ref. 31 control lever, if used

1шт.

33

232-4115

LOCK NUT,5/16"-18, GC

Used with Ref. 31 control lever, if used

1шт.

34

138-142

LOCK PIN,1/4" x 2", Slotted

1шт.
