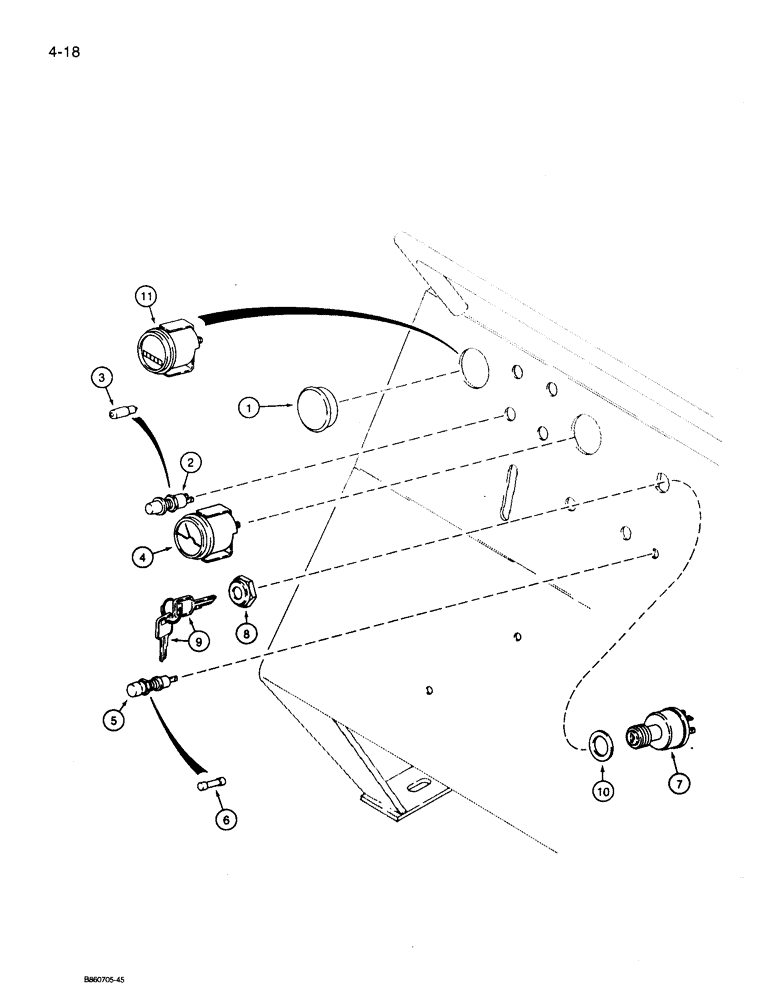

Запчасти Case 360 (4-18) - INSTRUMENTS AND MOUNTING (04) - ELECTRICAL SYSTEMS

1

353-417

PLUG,Dome, 2.000" hole, Nylon

button, 2 inch, if used

1шт.

2

H603852

LIGHT

warning, glow plug, two used on models with Wisconsin gasoline engine, four used on models with Deutz diesel engine, Incl. Ref. 3

2-4шт.

114323A1

LENS

Red Replacement Lens For H603852

1шт.

3

A15126

BULB

lamp, No. 1815

1шт.

4

1341333C1

AMMETER

electrical

1шт.

5

376852R91

HOUSING

fuse, panel mounted

1шт.

6

223-31

FUSE,10 Amp, Type 3AG

3AG, 30 ampere

1шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - ignition, includes keys, Incl. Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

KEY - switch, without keys

1шт.

8

A77314

NUT

hex, special, switch mounting

1шт.

9

A77313

SET OF 2 KEYS

metal without padding

1шт.

10

F67231

WASHER

special, if used

1шт.

11

H347898

HOURMETER

engine, if used

1шт.

12

175462A1

LIGHT

neutral indicator, green, if used, Incl. Ref. 13

1шт.

281820A1

LENS

Green Replacement Lens For 175462A1

1шт.

13

A15126

BULB

lamp, No. 1815

1шт.

ADDITIONAL PARTS ADDED PER H94A309

1шт.

175462A1 NEUTRAL SWITCH INDICATOR

1шт.

178265A1 NEUTRAL SWITCH INDICATORBRACKET

1шт.
