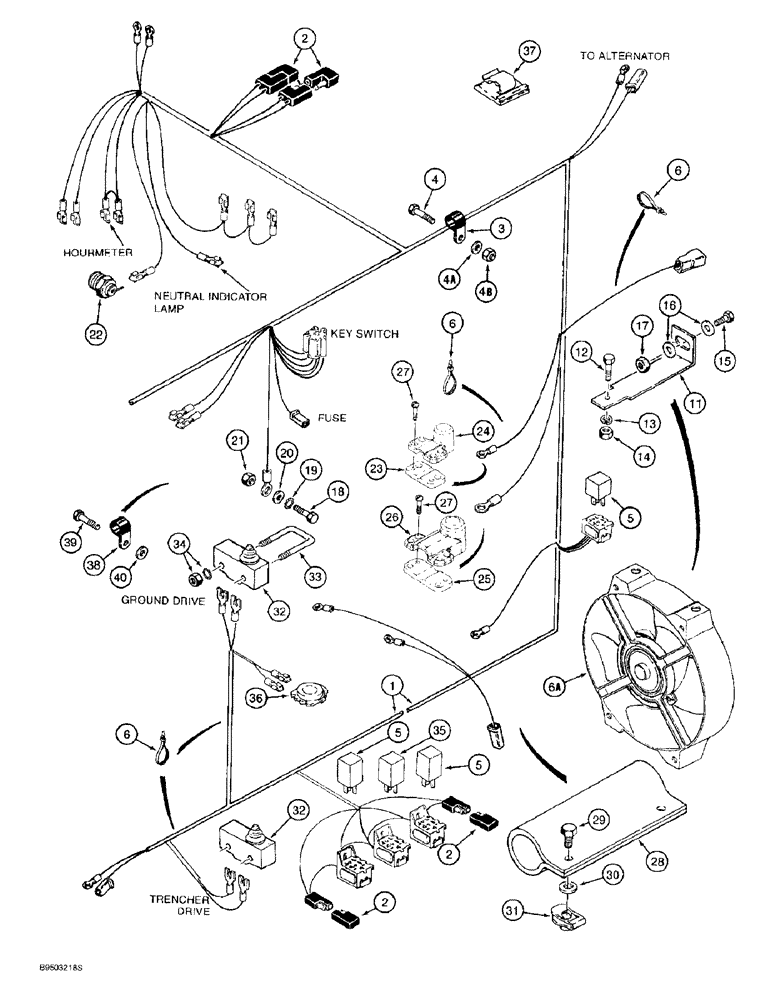

Запчасти Case 360 (4-17G) - MAIN WIRING HARNESS & CONNECTIONS - WISCONSIN GAS ENGINES P.I.N. JAF0022340 & AFTER W/SEAT INTERLOCK (04) - ELECTRICAL SYSTEMS

P.I.N. JAF0022340 & AFTER W/SEAT INTERLOCK

1шт.

1

139693A1

HARNESS

main wiring

1шт.

2

L71879

DIODE ELEMENT,400V, 3A

harness, alternating protecting, neutral and seat

4шт.

3

D40471

CLAMP

P-type, harness

1шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

4a

H426775

WASHER

flat, special, hardened

1шт.

4b

232-4115

LOCK NUT,5/16"-18, GC

1шт.

5

D128310

RELAY

30 ampere, starter, neutral and seat

3шт.

Ref. item 5 - D128310 relay is marked 40 amp on the relay-this is the RESISTANCE rating. The INDUCTIVE rating is 30 amps. We use this inductive rating in our literature. by bb 6/26/96

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

6a

H674469

FAN

oil cooler, no longer available, order Ref. 7, 8, 9 and 10

1шт.

7

H438066

FAN

blade, not shown, see Fig. 4-17C

1шт.

8

H438067

MOTOR

fan, not shown, see Fig. 4-17C

1шт.

9

H438068

SHROUD

fan, not shown, see Fig. 4-17C

1шт.

10

H438069

CLIP

blade retaining, not shown, see Fig. 4-17C

1шт.

11

H436175

ANGLE

fan mounting

4шт.

12

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

13

892-11006

LOCK WASHER,M6

4шт.

14

825-1406

NUT,M6, Cl 8

4шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

16

H426775

WASHER

flat, special, hardened, hardened

8шт.

17

232-4115

LOCK NUT,5/16"-18, GC

4шт.

18

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Fan motor ground to frame

1шт.

19

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

20

H426767

WASHER

flat, 9/32 x 5/8 x 3/64 inch, hardened, special

1шт.

21

232-4114

LOCK NUT,1/4"-20, GC

1шт.

22

H81935

SENDER UNIT

SENDER hydraulic oil temperature

1шт.

23

115757A1

RETAINER

small cap

1шт.

24

115756A1

CAP

small, starter relay

1шт.

25

115760A1

RETAINER

large cap

1шт.

26

115759A1

COVER

large, starter relay

1шт.

27

760-34313

SELF-TAP SCREW,Pan Hd, M4.2 x 13

Phillips

4шт.

28

H374678

FLAP

rubber, harness, at articulation joint

1шт.

29

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

30

H426775

WASHER

flat, special, hardened, hardened

2шт.

31

H346650

NUT

U-type, 5/16 inch NC

2шт.

32

H435820

SWITCH

neutral start, includes terminal hardware, for ground drive and trencher drive, see Fig. 5-6, Ref. 47 for ground drive switch mounting and Fig. 9-18, Ref. 8 for trencher drive mounting

2шт.

33

H435814

U-BOLT

neutral start

1шт.

34

193-1003

NUT,Keps, w/LW,#6-32

External tooth

2шт.

34a

H434491

ALTERNATOR

engine, not shown, does not include A44678 pulley, order separately, parts list Fig. 4-8

1шт.

87297230

REMAN-ALTERNATOR

REMANUFACTURED Bosch 12v 65a ALTERNATOR - NA Only

1шт.

87297231

CORE-ALTERNATOR

Return Number, Bosch 12 v 65a ALTERNATOR - NA Only

1шт.

35

1994819C1

RELAY

time delay

1шт.

#35 replaced by 224787A1 effective s/n JAF0198107

1шт.

36

175875A1

SWITCH

seat interlock

1шт.

37

H439303

CLIP

harness retaining, self-adhesive

2шт.

38

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

P-type, 1 inch ID, Serial Range: harness-engine

1шт.

39

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

40

H426767

WASHER

flat, 9/32 x 5/8 x 3/64 inch

1шт.
