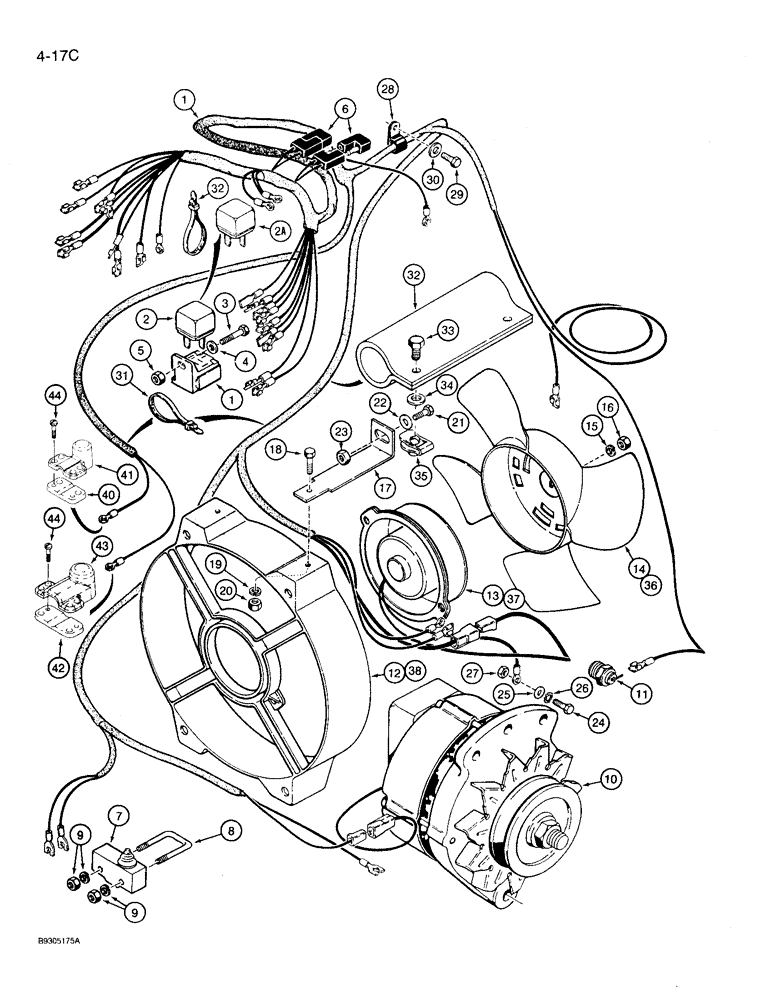

Запчасти Case 360 (4-17C) - MAIN WIRING HARNESS AND CONNECTIONS - WISCONSIN GASOLINE ENGINE MODELS P.I.N. JAF0022340 AND AFTER (04) - ELECTRICAL SYSTEMS

P.I.N. JAF0022340 AND AFTER

1шт.

1

H436582

HARNESS

main wiring

1шт.

2

S513724

RELAY

engine magneto, no longer available, order 1983394C1, Ref. 2A

1шт.

2a

1983394C1

RELAY

electrical, engine magneto

1шт.

3

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

If used

1шт.

4

495-31019

WASHER,0.19" ID x 0.38" OD x 0.05" Thk

flat, 3/16 x 3/8 x 3/64 inch, if used

1шт.

5

230-42409

NUT,#10-24, GA

hex, self-locking, No. 10 NC, if used

1шт.

6

L71879

DIODE ELEMENT,400V, 3A

harness, isolation

2шт.

7

H435820

SWITCH

neutral start, includes terminal hardware

1шт.

8

H435814

U-BOLT

neutral start

1шт.

9

193-1003

NUT,Keps, w/LW,#6-32

External tooth

2шт.

10

H434491

ALTERNATOR

engine, does not include H107508 pulley, order separately, alternator parts list Fig. 4-8

1шт.

87297230

REMAN-ALTERNATOR

REMANUFACTURED Bosch 12v 65a ALTERNATOR - NA Only

1шт.

87297231

CORE-ALTERNATOR

Return Number, Bosch 12 v 65a ALTERNATOR - NA Only

1шт.

11

H81935

SENDER UNIT

SENDER hydraulic oil temperature

1шт.

H673325

FAN

oil cooler, electric, no longer available, order Ref. 36, 37, 38 and 39 on Fig. 4-17G, Includes: Ref. 12 - 16

1шт.

12

H437576

BRACKET

fan

1шт.

13

H438067

MOTOR

fan, (replaces H674257)

1шт.

BOLT TO MOUNT REF. 13 TO 12 IS A 843-1516

1шт.

14

H437590

FAN

blade

1шт.

15

892-11005

LOCK WASHER,M5

1шт.

16

825-1405

NUT,M5, Cl 8

1шт.

17

H436175

ANGLE

fan mounting

4шт.

18

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

19

892-11006

LOCK WASHER,M6

4шт.

20

825-1406

NUT,M6, Cl 8

4шт.

21

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

22

H426775

WASHER

flat, special, hardened

4шт.

23

232-4115

LOCK NUT,5/16"-18, GC

4шт.

24

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

25

H426767

WASHER

flat, 9/32 x 5/8 x 3/64 inch, hardened, special

1шт.

26

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

27

232-4114

LOCK NUT,1/4"-20, GC

1шт.

28

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

P-type, 1 inch ID, Serial Range: mounts-engine

1шт.

29

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Replaces 3/4 inch long bolt

1шт.

30

H426767

WASHER

flat, 9/32 x 5/8 x 3/64 inch, hardened, special

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

32

H374678

FLAP

rubber, harness, at articulation joint

1шт.

33

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

34

H426775

WASHER

flat, special, hardened

2шт.

35

H346650

NUT

U-type, 5/16 inch NC, special

2шт.

H674469

FAN

oil cooler, no longer available, order Ref. 36, 37, 38 and 39

1шт.

36

H438066

FAN

blade

1шт.

37

H438067

MOTOR

fan

1шт.

BOLTS TO MOUNT MOTOR ARE 187-1095- SOCKET HEAD COUNTER SUNK FAN MOTOR MOUNTING BOLTS - NOW SUBBING TO 280-1848 9-18-96 PD

1шт.

38

H438068

SHROUD

fan

1шт.

39

H438069

CLIP

blade retaining, not shown

1шт.

40

115757A1

RETAINER

small cap

1шт.

41

115756A1

CAP

small, starter relay

1шт.

42

115760A1

RETAINER

large cap

1шт.

43

115759A1

COVER

large, starter relay

1шт.

44

760-34313

SELF-TAP SCREW,Pan Hd, M4.2 x 13

Phillips

4шт.
