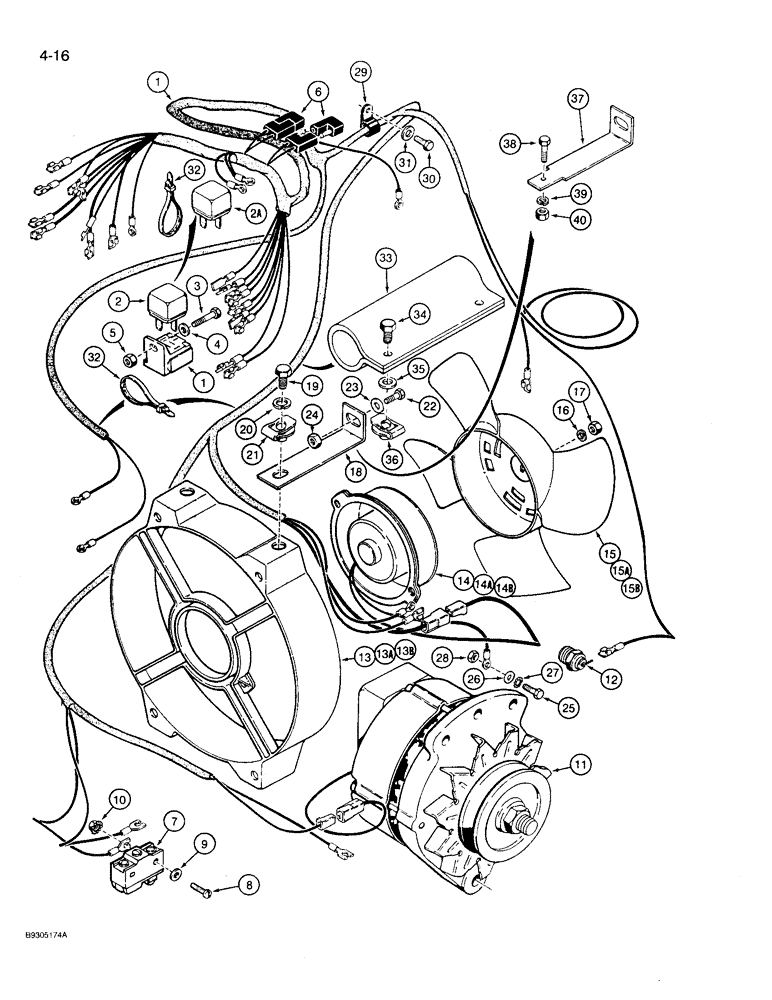

Запчасти Case 360 (4-16) - MAIN WIRING HARNESS AND CONNECTIONS - WISCONSIN GASOLINE ENGINE MODELS PRIOR TO P.I.N. JAF0022340 (04) - ELECTRICAL SYSTEMS

PRIOR TO P.I.N. JAF0022340

1шт.

1

H433342

HARNESS

main wiring

1шт.

2

S513724

RELAY

no longer available, order 1983394C1, Ref. 2A

1шт.

2

1983394C1

RELAY

electrical

1шт.

3

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

If used

1шт.

4

495-31019

WASHER,0.19" ID x 0.38" OD x 0.05" Thk

flat, 3/16 x 3/8 x 3/64 inch, if used

1шт.

5

230-42409

NUT,#10-24, GA

hex, self-locking, No. 10 NC, self-locking, if used

1шт.

6

L71879

DIODE ELEMENT,400V, 3A

harness

2шт.

7

D133918

SWITCH

neutral start

1шт.

8

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

2шт.

9

495-31016

WASHER,#6

2шт.

10

193-1003

NUT,Keps, w/LW,#6-32

External tooth

2шт.

11

H434491

ALTERNATOR

engine, does not include H107508 pulley, order separately, alternator parts list Fig. 4-8

1шт.

87297230

REMAN-ALTERNATOR

REMANUFACTURED Bosch 12v 65a ALTERNATOR - NA Only

1шт.

87297231

CORE-ALTERNATOR

Return Number, Bosch 12 v 65a ALTERNATOR - NA Only

1шт.

12

H81935

SENDER UNIT

SENDER hydraulic oil temperature

1шт.

H672448

FAN

oil cooler

1шт.

H673325

FAN

oil cooler

1шт.

H674469

FAN

oil cooler, Includes: Ref. 13 - 17

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - fan, H672448 fan assembly

1шт.

13

H437576

BRACKET

fan, H673325 fan assembly

1шт.

13

H438068

SHROUD

fan, H674469 fan assembly

1шт.

14

H428318

MOTOR, ELECTRIC

fan, H672448 fan assembly

1шт.

14

H674257

MOTOR

fan, H673325 fan assembly

1шт.

14

H438067

MOTOR

fan, H674469 fan assembly

1шт.

15

H428326

FAN

blade, H672448 fan assembly

1шт.

15

H437590

FAN

blade, H673325 fan assembly

1шт.

15

H438066

FAN

blade, H674469 fan assembly

1шт.

16

892-11005

LOCK WASHER,M5

H672448 or H673325 Fan assembly

1шт.

17

825-1405

NUT,M5, Cl 8

H672448 or H673325 fan assembly

1шт.

17

H438069

CLIP

blade retaining, not shown, H674469 fan assembly

1шт.

18

H433884

ANGLE

fan mounting, used on models prior to P.I.N. JAF0002542

4шт.

19

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Used with Ref. 18 bracket only

4шт.

20

492-11031

LOCK WASHER,5/16"

Used with Ref. 18 bracket only

4шт.

21

H346650

NUT

U-type, 5/16 inch NC, special, used with Ref. 18 bracket only

4шт.

22

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

23

H426775

WASHER

flat, special, hardened

4шт.

24

232-4115

LOCK NUT,5/16"-18, GC

4шт.

25

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

26

H426767

WASHER

flat, 9/32 x 5/8 x 3/64 inch, hardened, special

1шт.

27

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

28

232-4114

LOCK NUT,1/4"-20, GC

1шт.

29

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

P-type, 1 inch ID, Serial Range: mounts-engine

1шт.

30

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

31

H426767

WASHER

flat, 9/32 x 5/8 x 3/64 inch, hardened, special

1шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

33

H374678

FLAP

rubber, harness, at articulation joint

1шт.

34

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

35

H426775

WASHER

flat, special, hardened

2шт.

36

H346650

NUT

U-type, 5/16 inch NC, special

2шт.

37

H436175

ANGLE

fan mounting, used on models with P.I.N. JAF0002542 and after

4шт.

38

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

Used with Ref. 37 bracket only

4шт.

39

892-11006

LOCK WASHER,M6

Used with Ref. 37 Bracket Only

4шт.

40

825-1406

NUT,M6, Cl 8

Used with Ref. 37 bracket only

4шт.
