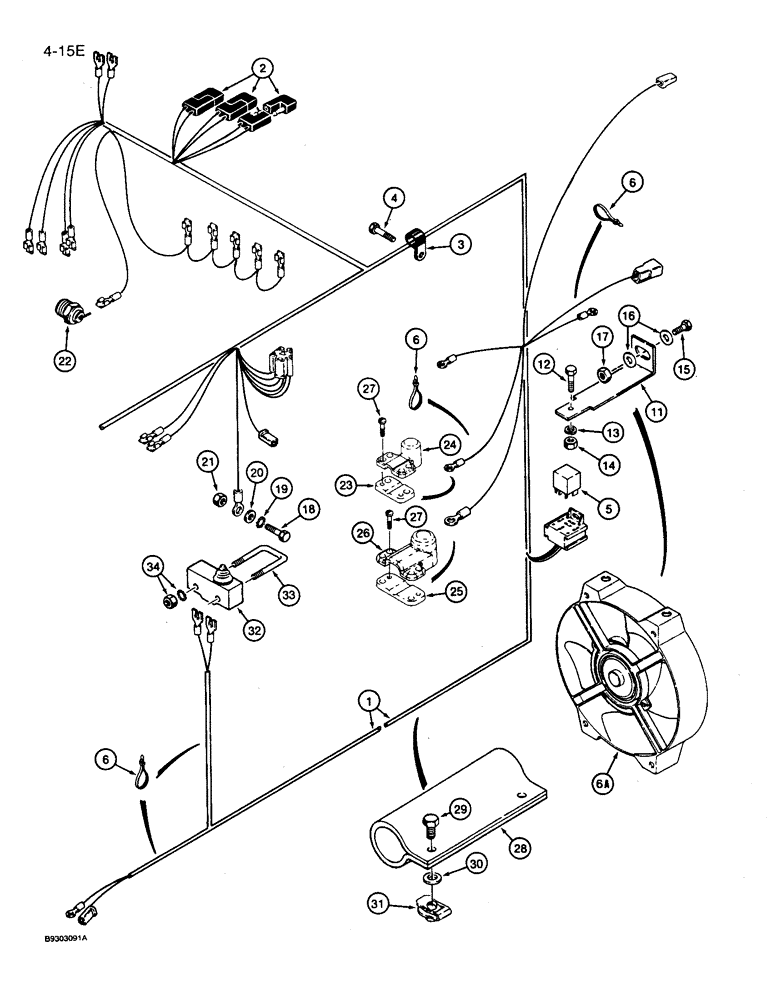

Запчасти Case 360 (4-15E) - MAIN WIRING HARNESS AND CONNECTIONS - DEUTZ DIESEL ENGINE MODELS P.I.N. JAF0104257 AND AFTER (04) - ELECTRICAL SYSTEMS

P.I.N. JAF0104257 AND AFTER

1шт.

1

121753A1

HARNESS

main wiring

1шт.

REF; A1 REPLACED BY 139702A1 HARNESS

1шт.

2

L71879

DIODE ELEMENT,400V, 3A

harness, alternator protecting

3шт.

3

D40471

CLAMP

P-type, harness

1шт.

4

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

5

D128310

RELAY

30 ampere, starter

1шт.

Ref. item 5 - D128310 relay is marked 40 amp on the relay-this is the RESISTANCE rating. The INDUCTIVE rating is 30 amps. We use this inductive rating in our literature. by bb 6/26/96

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

6a

H674469

FAN

oil cooler, no longer available, order Ref. 7, 8, 9 and 10

1шт.

7

H438066

FAN

blade, not shown, see Fig. 4-15C

1шт.

8

H438067

MOTOR

fan, not shown, see Fig. 4-15C

1шт.

9

H438068

SHROUD

fan, not shown, see Fig. 4-15C

1шт.

10

H438069

CLIP

blade retaining, not shown, see Fig. 4-15C

1шт.

11

H436175

ANGLE

fan mounting

4шт.

12

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

13

892-11006

LOCK WASHER,M6

4шт.

14

825-1406

NUT,M6, Cl 8

4шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

16

H426775

WASHER

flat, special, hardened

8шт.

17

232-4115

LOCK NUT,5/16"-18, GC

4шт.

18

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

19

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

20

H426767

WASHER

flat, 9/32 x 5/8 x 3/64 inch, hardened, special

1шт.

21

232-4114

LOCK NUT,1/4"-20, GC

1шт.

22

H81935

SENDER UNIT

SENDER hydraulic oil temperature

1шт.

23

115757A1

RETAINER

small cap

1шт.

24

115756A1

CAP

small, starter relay

1шт.

25

115760A1

RETAINER

large cap

1шт.

26

115759A1

COVER

large, starter relay

1шт.

27

760-34313

SELF-TAP SCREW,Pan Hd, M4.2 x 13

Phillips

4шт.

28

H374678

FLAP

rubber, harness, at articulation joint

1шт.

29

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

30

H426775

WASHER

flat, special, hardened

2шт.

31

H346650

NUT

U-type, 5/16 inch NC

2шт.

32

H435820

SWITCH

neutral start, includes terminal hardware, ground drive, see Fig. 5-6, Ref. 47 for switch mounting

1шт.

33

H435814

U-BOLT

neutral start

1шт.

34

193-1003

NUT,Keps, w/LW,#6-32

External tooth

2шт.

IF CUSTOMER IS LOOKING FOR ALTERNATOR THAT IS BUILT INTO ENGINE SEE NOTE AT BOTTOM OF PAGE THAT SAYS THEY MUST GET THROUGH DUETZ. sb 5/5/98

1шт.
