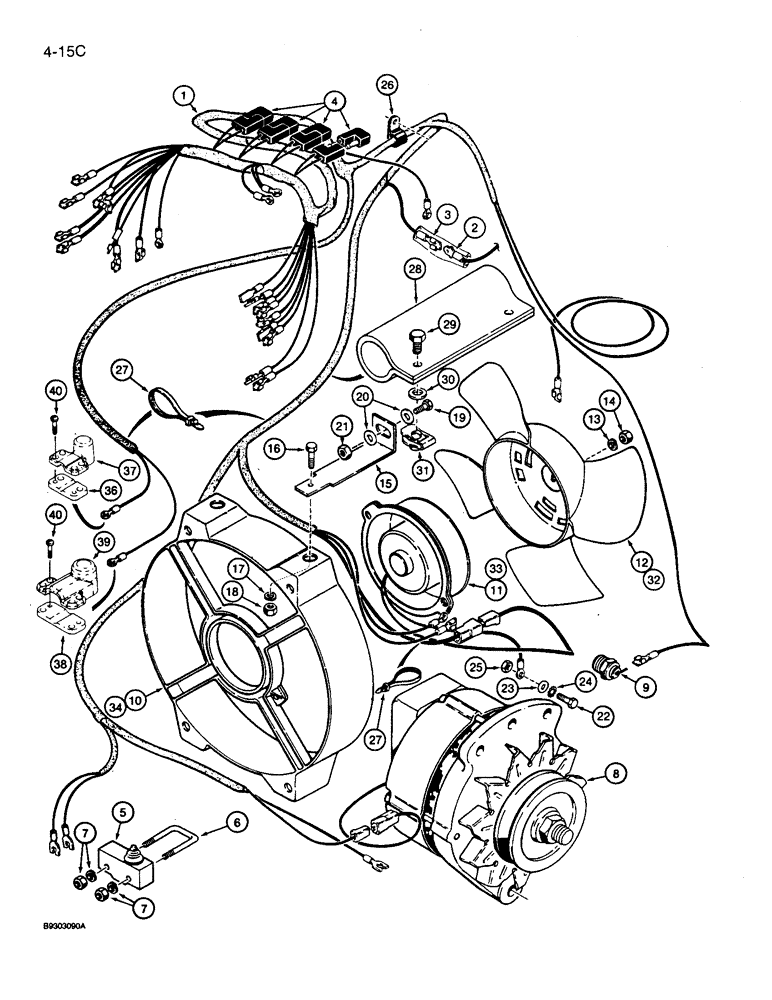

Запчасти Case 360 (4-15C) - MAIN WIRING HARNESS AND CONNECTIONS - DEUTZ DIESEL ENGINE MODELS P.I.N. JAF0022340 - JAF0104256 (04) - ELECTRICAL SYSTEMS

P.I.N. JAF0022340 - JAF0104256

1шт.

1

H436583

HARNESS

main wiring

1шт.

2

H133

CONNECTOR - male, 1/4 inch

1шт.

3

223-95

TERMINAL CONNECTOR,Female, 14 - 16

female, 1/4 inch

1шт.

4

L71879

DIODE ELEMENT,400V, 3A

isolation

4шт.

5

H435820

SWITCH

neutral start

1шт.

6

H435814

U-BOLT

neutral start

1шт.

7

193-1003

NUT,Keps, w/LW,#6-32

External tooth

2шт.

8

H434491

ALTERNATOR

engine, does not include H107508 pulley, order separately, alternator parts list Fig. 4-8

1шт.

87297230

REMAN-ALTERNATOR

REMANUFACTURED Bosch 12v 65a ALTERNATOR - NA Only

1шт.

87297231

CORE-ALTERNATOR

Return Number, Bosch 12 v 65a ALTERNATOR - NA Only

1шт.

9

H81935

SENDER UNIT

SENDER hydraulic oil temperature

1шт.

H673325

FAN

oil cooler, no longer available, order Ref. 32, 33, 34 and 35 shown below, Includes. Ref. 10 - 14

1шт.

10

H437576

BRACKET

HOUSING - fan

1шт.

Ref. 10 and 11 are connected with P/N 843-1516 screw.

1шт.

11

H674257

MOTOR

fan, no longer available, order Ref. 32, 33, 34 and 35

1шт.

Ref. 10 and 11 are connected with P/N 843-1516 screw.

1шт.

12

H437590

FAN

blade

1шт.

13

892-1105

LOCK WASHER,M5

lock, 5 mm

1шт.

14

825-1105

NUT,M5, Cl 8

hex, 5 mm

1шт.

15

H436175

ANGLE

fan mounting

4шт.

16

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

17

892-11006

LOCK WASHER,M6

4шт.

18

825-1106

NUT,Hex, M6, Cl 8

4шт.

19

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

20

H426775

WASHER

flat, 5/16 inch, hardened

8шт.

21

232-4115

LOCK NUT,5/16"-18, GC

4шт.

22

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

23

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

24

H426767

WASHER

flat, 1/4 inch, hardened, special

1шт.

25

232-4114

LOCK NUT,1/4"-20, GC

1шт.

26

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

wiring harness, mounts to engine, use existing engine hardware

1шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

28

H374678

FLAP

harness, rubber, at articulation joint

1шт.

29

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

30

H426775

WASHER

flat, 5/16 inch, hardened

2шт.

31

H346650

NUT

clip, 5/16 inch NC

2шт.

H674469

FAN

oil cooler, no longer available, order Ref. 32, 33, 34 and 35

1шт.

32

H438066

FAN

blade

1шт.

33

H438067

MOTOR

fan

1шт.

34

H438068

SHROUD

fan

1шт.

35

H438069

CLIP

blade retaining, not shown

1шт.

36

115757A1

RETAINER

small cap

1шт.

37

115756A1

CAP

small, starter relay

1шт.

38

115760A1

RETAINER

large cap

1шт.

39

115759A1

COVER

large, starter relay

1шт.

40

760-34313

SELF-TAP SCREW,Pan Hd, M4.2 x 13

4шт.
