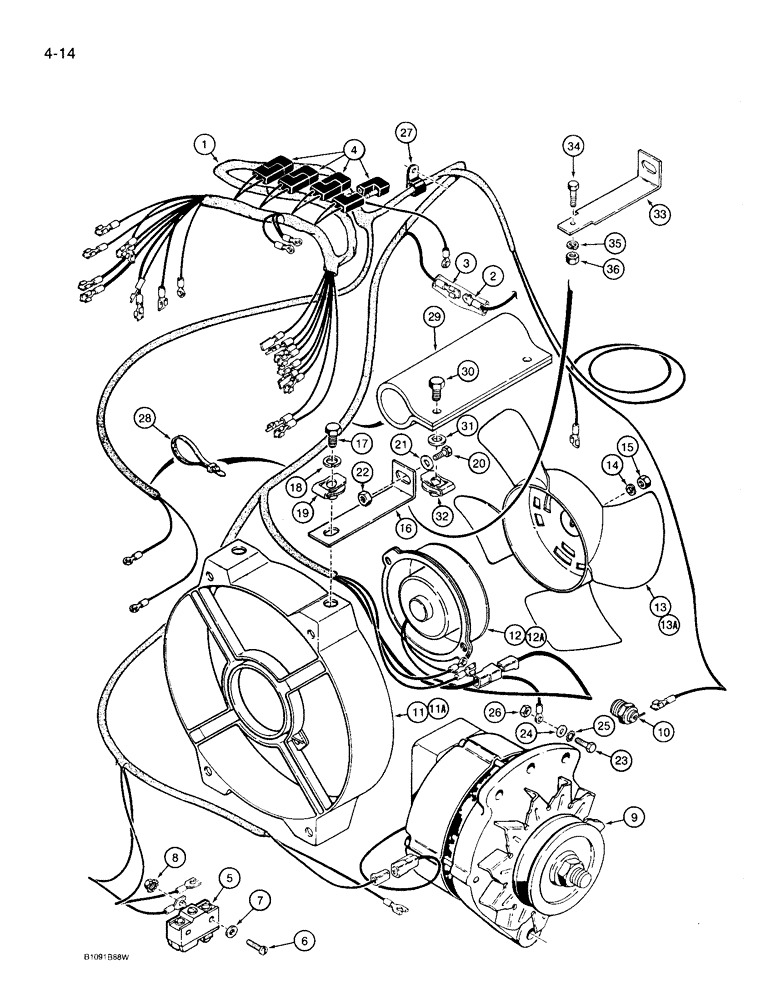

Запчасти Case 360 (4-14) - MAIN WIRING HARNESS AND CONNECTIONS - DEUTZ DIESEL ENGINE MODELS PRIOR TO P.I.N. JAF0022340 (04) - ELECTRICAL SYSTEMS

PRIOR TO P.I.N. JAF0022340

1шт.

1

H433441

HARNESS

main wiring

1шт.

2

H133

CONNECTOR - male, 1/4 inch

1шт.

3

223-95

TERMINAL CONNECTOR,Female, 14 - 16

female, 1/4 inch

1шт.

4

L71879

DIODE ELEMENT,400V, 3A

isolation

4шт.

5

D133918

SWITCH

neutral start

1шт.

6

182-530

SCREW,Sl Pan Hd, #6 - 32 x 1 1/4"

machine, pan head slotted, No. 6 NC x 1-1/4 inch

2шт.

7

495-31016

WASHER,#6

2шт.

8

193-1003

NUT,Keps, w/LW,#6-32

2шт.

9

H434491

ALTERNATOR

engine, does not include H107508 pulley, order separately, alternator parts list Fig. 4-8

1шт.

87297230

REMAN-ALTERNATOR

REMANUFACTURED Bosch 12v 65a ALTERNATOR - NA Only

1шт.

87297231

CORE-ALTERNATOR

Return Number, Bosch 12 v 65a ALTERNATOR - NA Only

1шт.

10

H81935

SENDER UNIT

SENDER hydraulic oil temperature

1шт.

H672448

FAN

oil cooler, electric, used on models prior to P.I.N. JAF0002542, no longer available, order H673325 fan assembly and Ref. 33, 34, 35 and 36 for service

1шт.

H673325

FAN

oil cooler, electric, used on models with P.I.N. JAF0002542 and after, Includes: Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - fan, used with H672448 fan assembly only

1шт.

11a

H437576

BRACKET

fan, used with H673325 fan assembly only

1шт.

12

H428318

MOTOR, ELECTRIC

fan, used with H672448 fan assembly only

1шт.

12a

H674257

MOTOR

fan, used with H673325 fan assembly only

1шт.

13

H428326

FAN

blade, used with H672448 fan assembly only

1шт.

13a

H437590

FAN

blade, used with H673325 fan assembly only

1шт.

14

892-1105

LOCK WASHER,M5

5 mm, plated

1шт.

15

825-1105

NUT,M5, Cl 8

hex, 5 mm - 0.8, plated

1шт.

16

H433884

ANGLE

fan mounting, used on models prior to P.I.N. JAF0002542

4шт.

17

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Used with item 16 bracket only

4шт.

18

492-11031

LOCK WASHER,5/16"

Used with item 16 bracket only

4шт.

19

H346650

NUT

clip, 5/16 inch NC, used with item 16 bracket only

4шт.

MOTOR TO FAN HOUSING.

1шт.

843-1516 SCREW M5 X 16 MM MOUNT

1шт.

20

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

21

H426775

WASHER

flat, 5/16 inch, hardened

4шт.

22

232-4115

LOCK NUT,5/16"-18, GC

4шт.

23

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

24

193-95

LOCK WASHER,Ext Tooth, 5/16"

1шт.

25

H426767

WASHER

flat, 1/4 inch, hardened, special

1шт.

26

232-4114

LOCK NUT,1/4"-20, GC

1шт.

27

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

wiring harness, mounts to engine, use existing engine hardware

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

2шт.

29

H374678

FLAP

harness, rubber, at articulation joint

1шт.

30

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

31

H426775

WASHER

flat, 5/16 inch, hardened

2шт.

32

H346650

NUT

clip, 5/16 inch NC

2шт.

33

H436175

ANGLE

fan mounting, P.I.N. JAF0002542 and after

4шт.

34

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

Used with Ref. 33 bracket only

4шт.

35

892-1106

LOCK WASHER,M6

Used with Ref. 33 bracket only

4шт.

36

825-1106

NUT,Hex, M6, Cl 8

Used with Ref. 33 bracket only

4шт.
