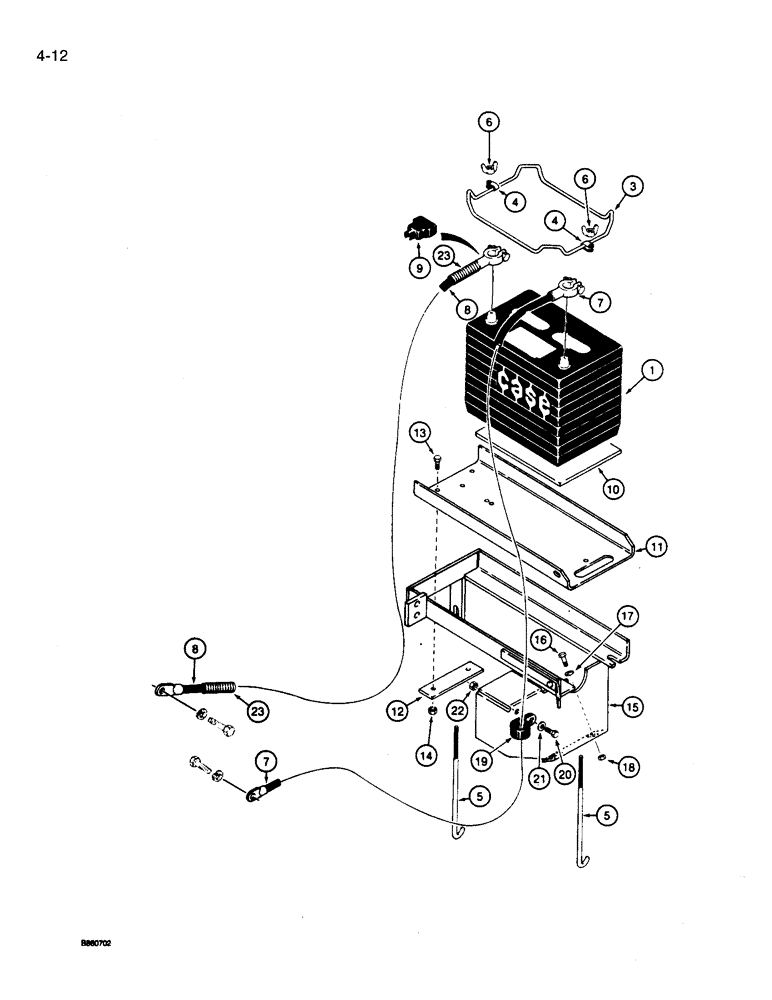

Запчасти Case 360 (4-12) - BATTERY, MOUNTING, AND CABLES - WISCONSIN GASOLINE ENGINE MODELS (04) - ELECTRICAL SYSTEMS

1

BCM24

BATTERY

12 volt, dry type, service replacement

1шт.

H663732

BRACKET

Battery hold down

1шт.

3

A35009

SECURING STRAP

hold down

1шт.

4

NSS

NOT SOLD SEPARAT

CLIP - bracket

2шт.

5

H283739

BOLT

J-type, 5/16 NC x 8-3/4 inch, battery hold down

2шт.

6

129-419

WING NUT,5/16"-18

5/16 inch NC

2шт.

7

H30973

CABLE

negative, battery, uses existing bolt on flywheel housing, see decal Fig. 9-138 for negative ground tag H198457

1шт.

8

H519348

NEG BATTERY CABLE

positive, Serial Range: battery-alternator

1шт.

9

H102681

COVER ASSY

positive battery cable terminal

1шт.

10

H413179

PAD

rubber, battery

1шт.

11

H433426

CHANNEL

battery

1шт.

12

H433427

LARGE PLATE

PLATE, LARGE reinforcing

1шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

14

232-4115

LOCK NUT,5/16"-18, GC

2шт.

15

H672157

BRACKET

battery support

1шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

17

H426775

WASHER

flat, 5/16 inch, hardened

2шт.

18

232-4115

LOCK NUT,5/16"-18, GC

2шт.

19

D40471

CLAMP

negative battery cable mounting

1шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

21

H426775

WASHER

flat, 5/16 inch, hardened

1шт.

22

232-4115

LOCK NUT,5/16"-18, GC

1шт.

23

R40572

CONDUIT

25 inch (635 mm) long, positive battery cable, cut from R44806 conduit, see below

1шт.

R44806

LOOM

88-1/2 inch (2248 mm) long, use to make Ref. 23

1шт.
